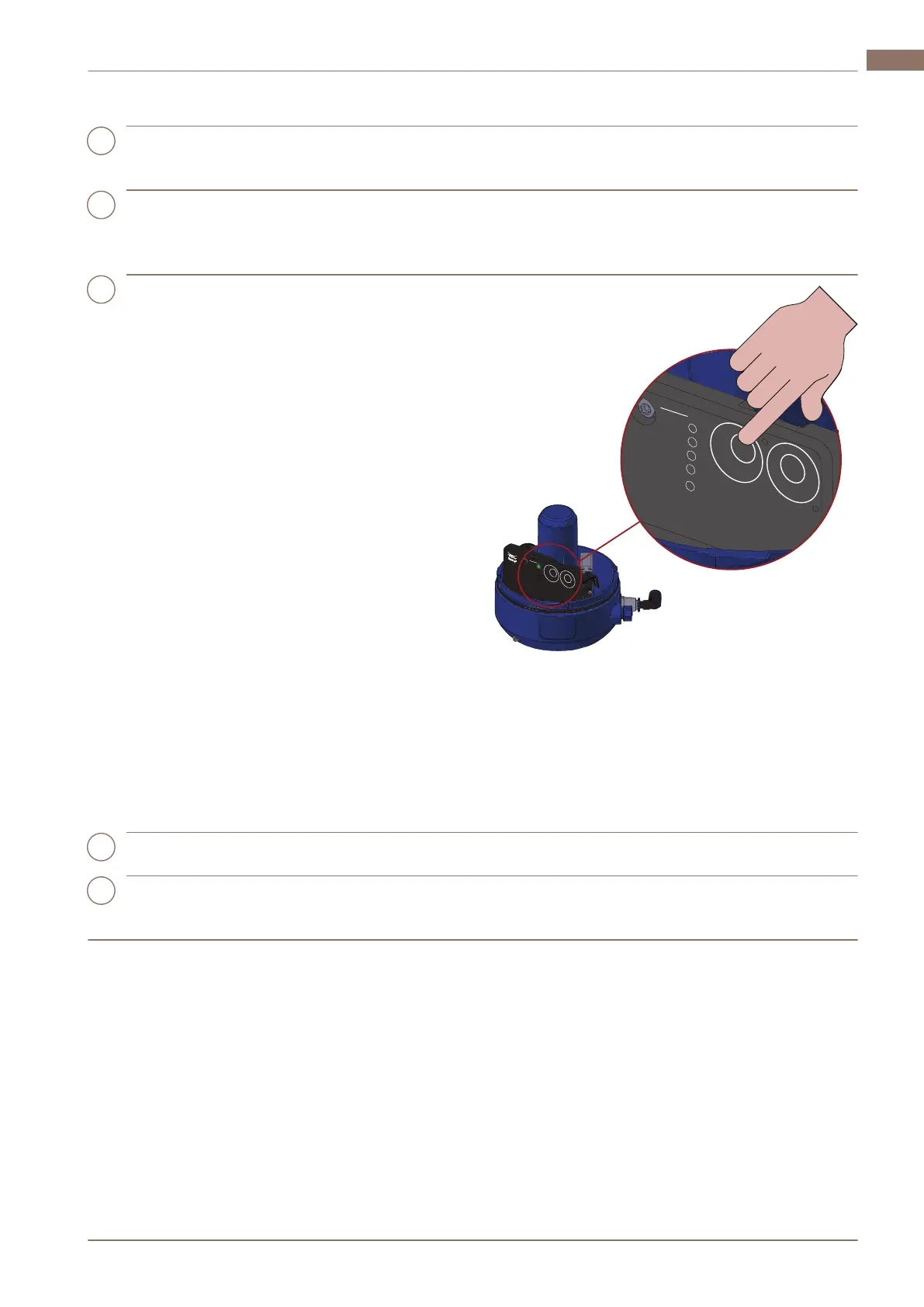

Alfa Laval ThinkTop V50 User Manual

Perform Flex Setup
1
Remove the top cover by turning it counter
clockwise and then lifting it upwards.
2
Press the SELECT button two or three times
to navigate to either the Seat valve option or
the Rotary valve option, then press ENTER.
3
Store the valve positions.
Green flashing [De-energized position]
Position the valve in de-energised position.
Press ENTER to store.
White flashing [Main energized position]
Position the valve in main energized position.
Press ENTER to store.
Blue flashing [Upper seat-lift position]
Position the valve in Usl energized position.
Press ENTER to store or SELECT to skip.
Y
ellow flashing [Lower seat-push position]
Position the valve in Lsp energized position.
Press ENTER to store or SELECT to skip.
When Flex Setup has completed:
• The light guide lights steady green.
• The control unit is in operation mode.
SELECT
ENTER
SETUP
AUTO
FLEX
SEAT VALVE
ROTARY VALVE
ERROR
1
2
4
8
16
2066-0080
SELECT
ENTER
SETUP
AUTO
FLEX
SEAT VALVE
ROTARY VALVE
ERROR
1
2
4
8
16
4
Put the top cover back in place.
5
Run an IO test to verify that the system
returns the correct feedback.
200000549-1-EN-GB 21
