Alienware 17 R4

To Next Page

To Previous Page

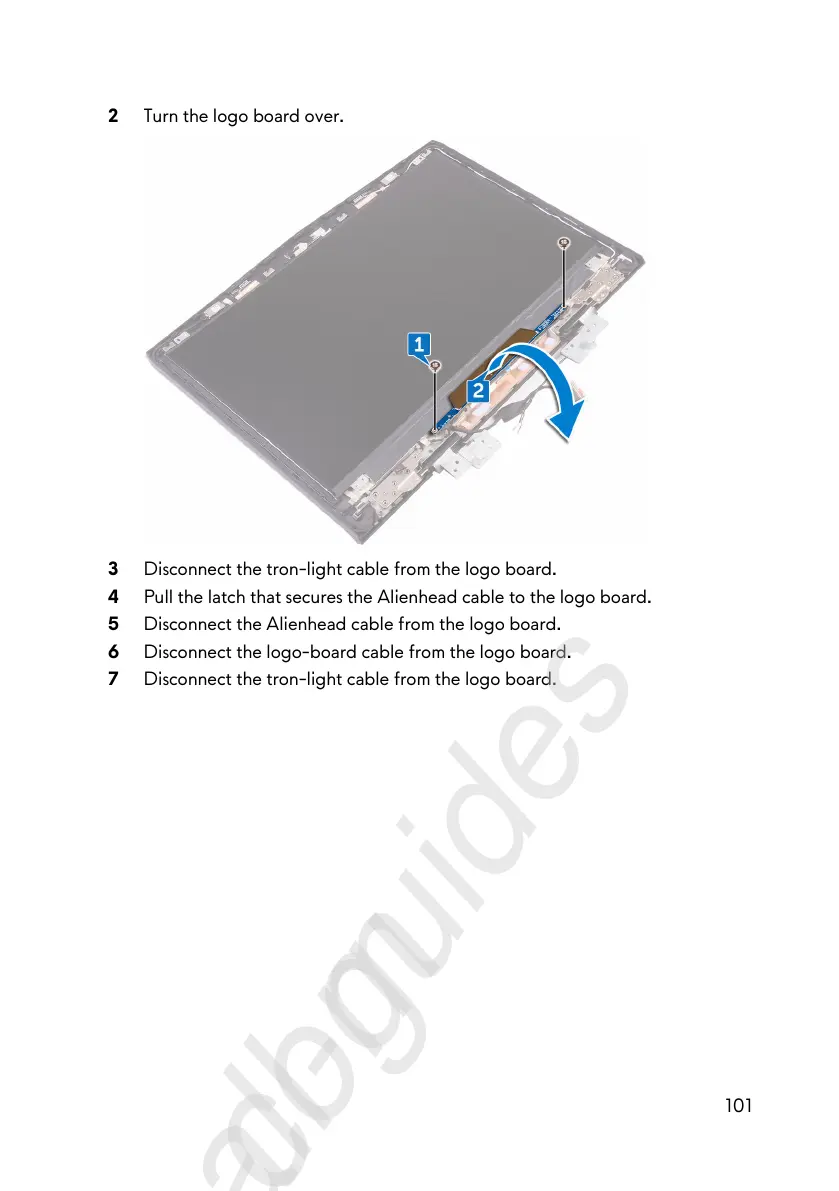

2 Turn the logo board over.

3 Disconnect the tron-light cable from the logo board.

4 Pull the latch that secures the Alienhead cable to the logo board.

5 Disconnect the Alienhead cable from the logo board.

6 Disconnect the logo-board cable from the logo board.

7 Disconnect the tron-light cable from the logo board.

101
