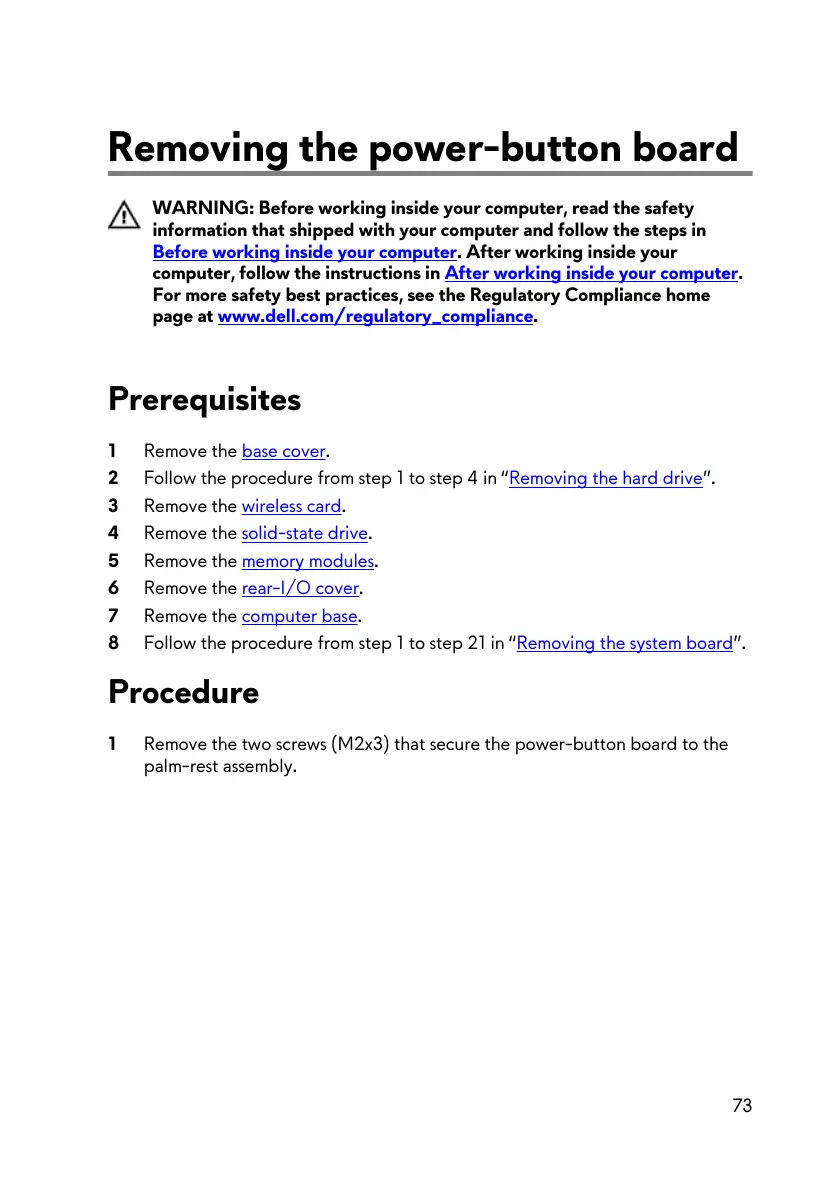

Removing the power-button board
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Follow the procedure from step 1 to step 4 in “Removing the hard drive”.
3 Remove the wireless card.
4 Remove the solid-state drive.
5 Remove the memory modules.
6 Remove the rear-I/O cover.
7 Remove the computer base.
8 Follow the procedure from step 1 to step 21 in “Removing the system board”.
Procedure
1 Remove the two screws (M2x3) that secure the power-button board to the
palm-rest assembly.
73
