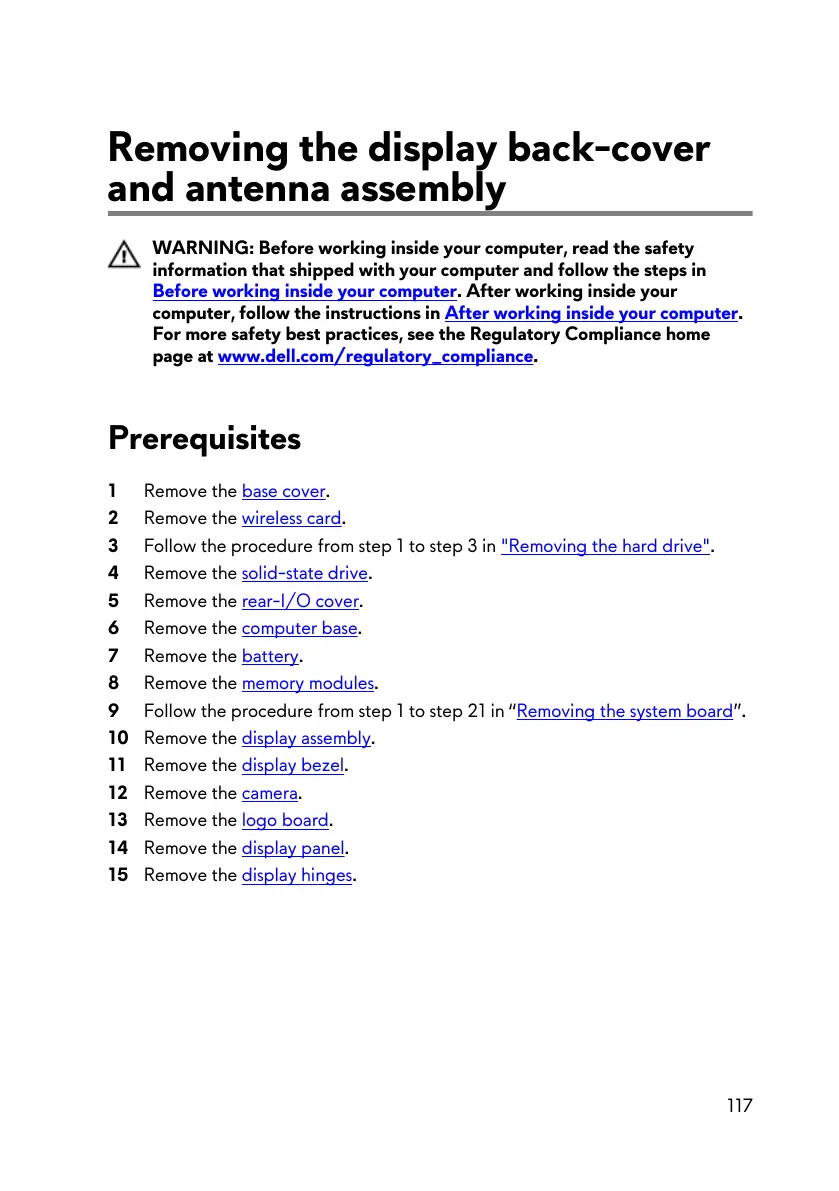

Removing the display back-cover
and antenna assembly
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 3 in "Removing the hard drive".
4 Remove the solid-state drive.
5 Remove the rear-I/O cover.
6 Remove the computer base.
7 Remove the battery.
8 Remove the memory modules.
9 Follow the procedure from step 1 to step 21 in “Removing the system board”.
10 Remove the display assembly.
11 Remove the display bezel.
12 Remove the camera.
13 Remove the logo board.
14 Remove the display panel.
15 Remove the display hinges.
117
