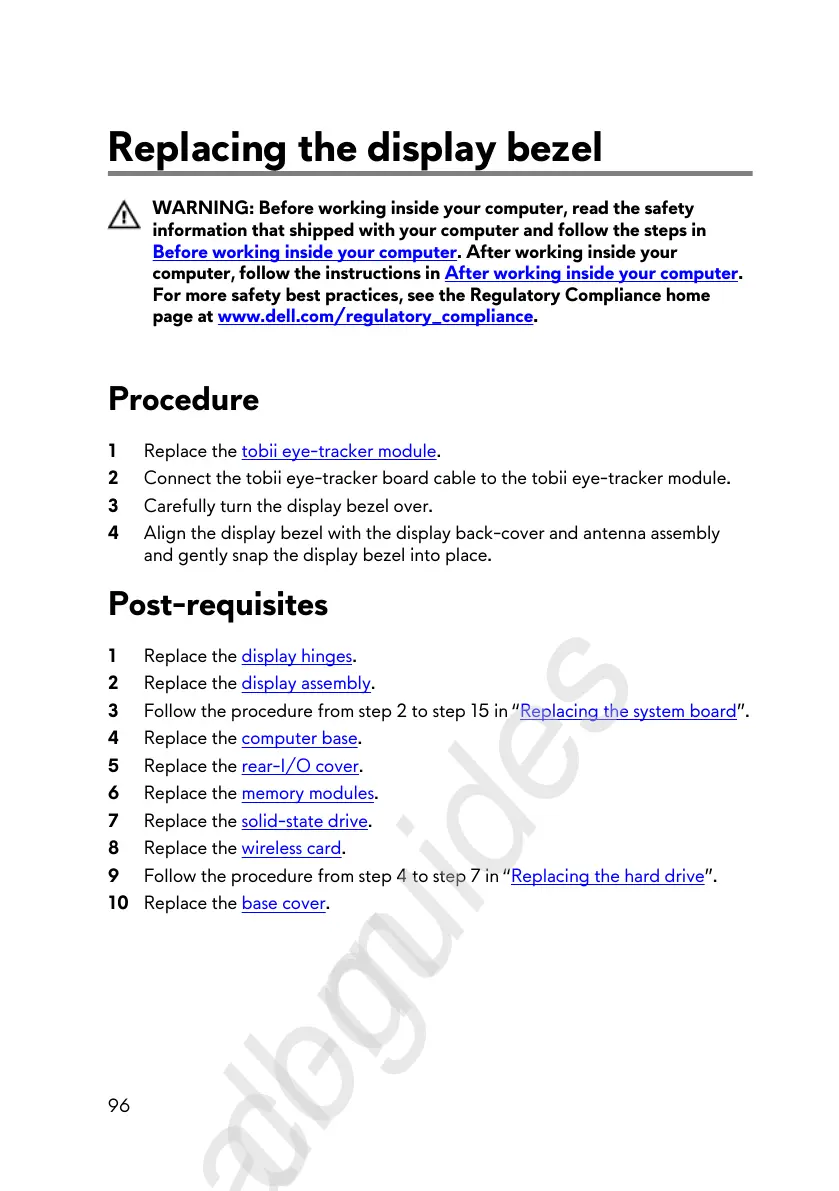

Replacing the display bezel
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Procedure
1 Replace the tobii eye-tracker module.
2 Connect the tobii eye-tracker board cable to the tobii eye-tracker module.
3 Carefully turn the display bezel over.
4 Align the display bezel with the display back-cover and antenna assembly
and gently snap the display bezel into place.
Post-requisites
1 Replace the display hinges.
2 Replace the display assembly.
3 Follow the procedure from step 2 to step 15 in “Replacing the system board”.
4 Replace the computer base.
5 Replace the rear-I/O cover.
6 Replace the memory modules.
7 Replace the solid-state drive.
8 Replace the wireless card.
9 Follow the procedure from step 4 to step 7 in “Replacing the hard drive”.
10 Replace the base cover.
96
