Alienware 17 R4

Screw list

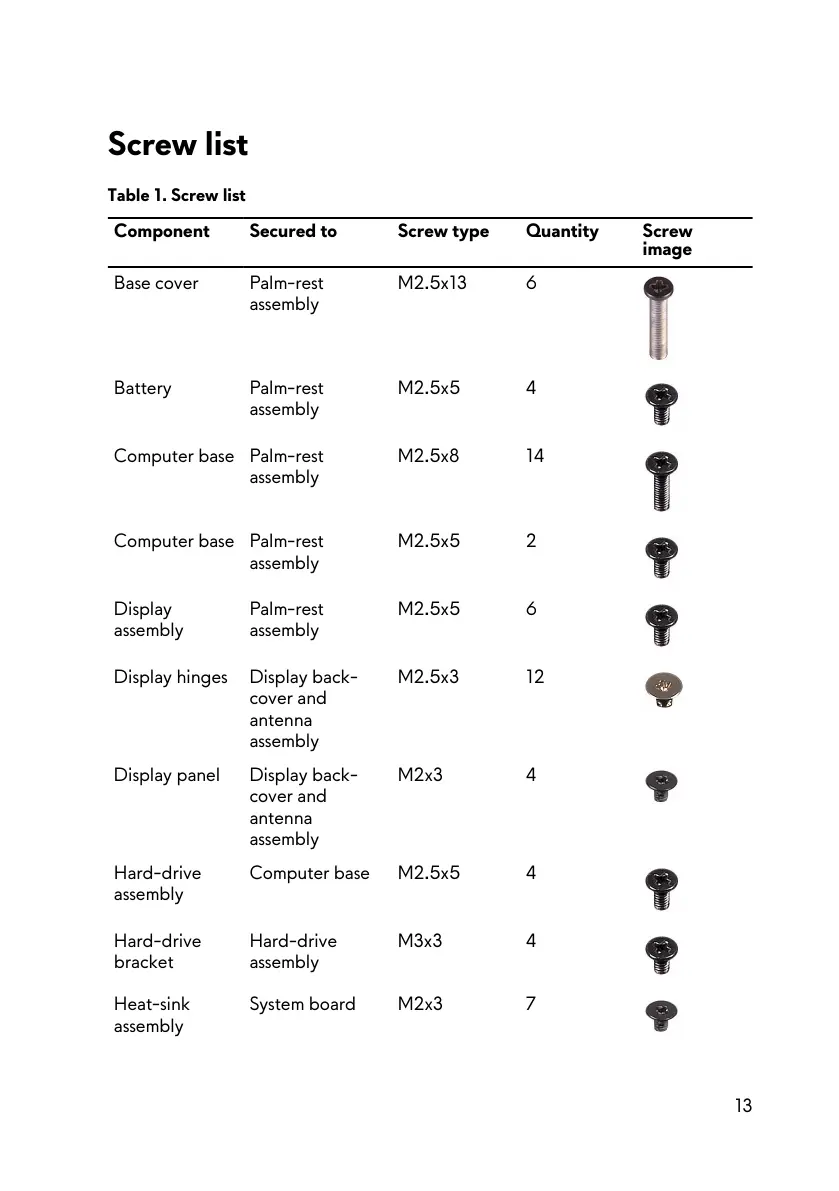

Table 1. Screw list
Component Secured to Screw type Quantity Screw
Base cover Palm-rest
assembly
M2.5x13 6
Battery Palm-rest
assembly
M2.5x5 4
Computer base Palm-rest
assembly
M2.5x8 14
Computer base Palm-rest
assembly
M2.5x5 2
Display
assembly
Palm-rest
assembly
M2.5x5 6
Display hinges Display back-
cover and
antenna
assembly
M2.5x3 12
Display panel Display back-
cover and
antenna
assembly
M2x3 4
Hard-drive
assembly
Computer base M2.5x5 4
Hard-drive
bracket
Hard-drive
assembly
M3x3 4
Heat-sink
assembly
System board M2x3 7
13
