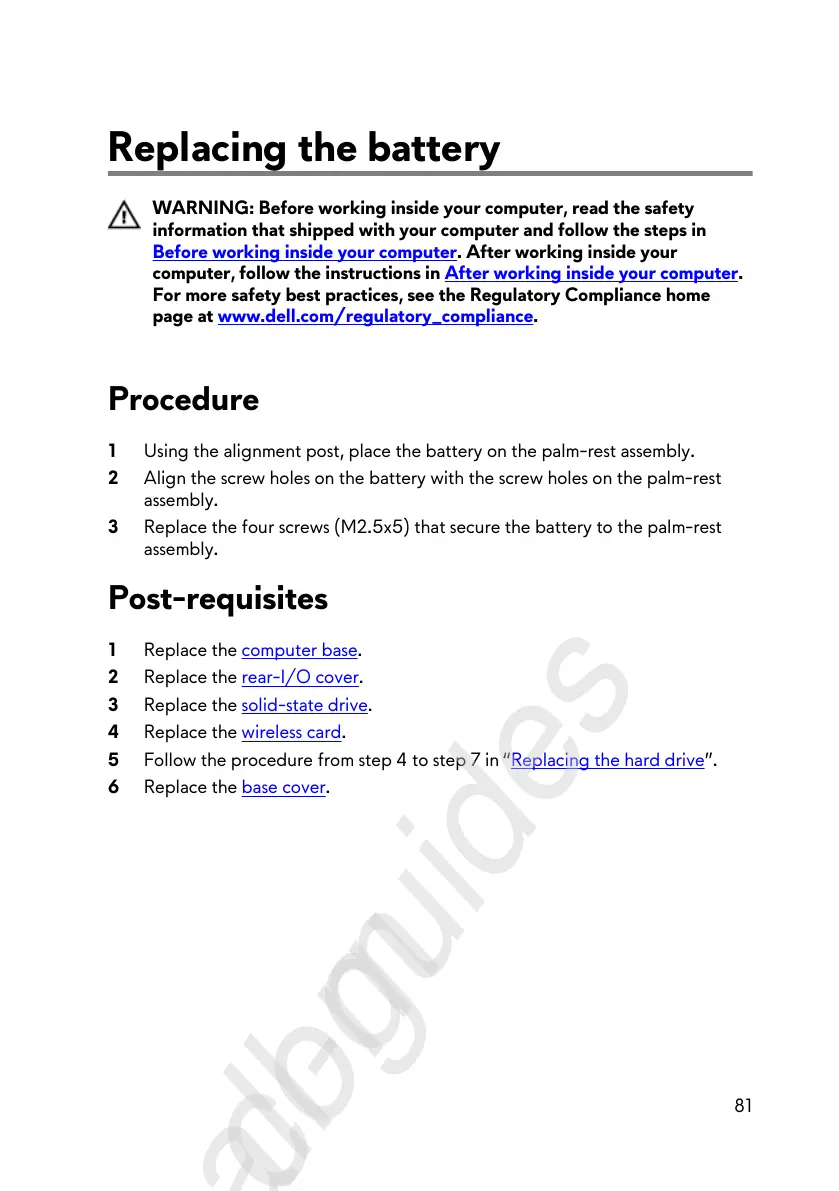

Replacing the battery
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Procedure
1 Using the alignment post, place the battery on the palm-rest assembly.
2 Align the screw holes on the battery with the screw holes on the palm-rest
assembly.
3 Replace the four screws (M2.5x5) that secure the battery to the palm-rest
assembly.
Post-requisites
1 Replace the computer base.
2 Replace the rear-I/O cover.
3 Replace the solid-state drive.
4 Replace the wireless card.
5 Follow the procedure from step 4 to step 7 in “Replacing the hard drive”.
6 Replace the base cover.
81
