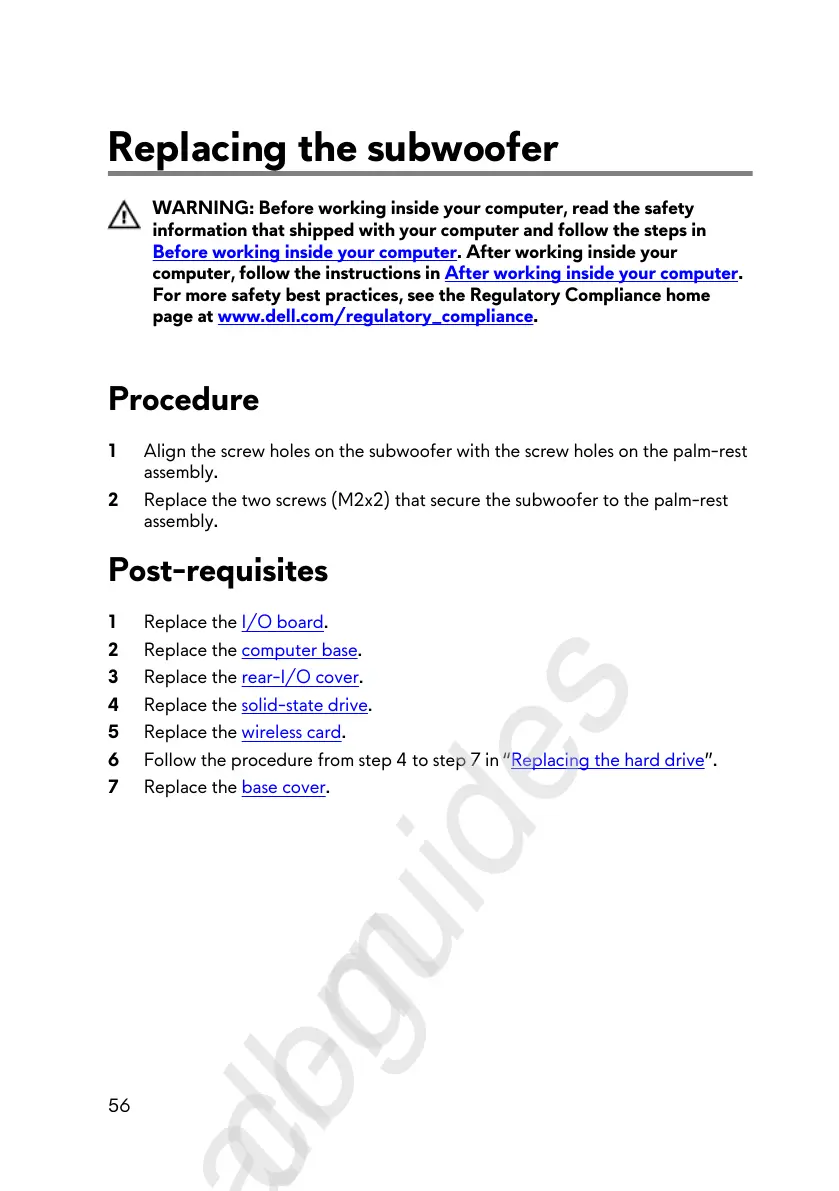

Replacing the subwoofer
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the subwoofer with the screw holes on the palm-rest
assembly.
2 Replace the two screws (M2x2) that secure the subwoofer to the palm-rest
assembly.
Post-requisites
1 Replace the I/O board.
2 Replace the computer base.
3 Replace the rear-I/O cover.
4 Replace the solid-state drive.
5 Replace the wireless card.
6 Follow the procedure from step 4 to step 7 in “Replacing the hard drive”.
7 Replace the base cover.
56
