Alienware 17 R4

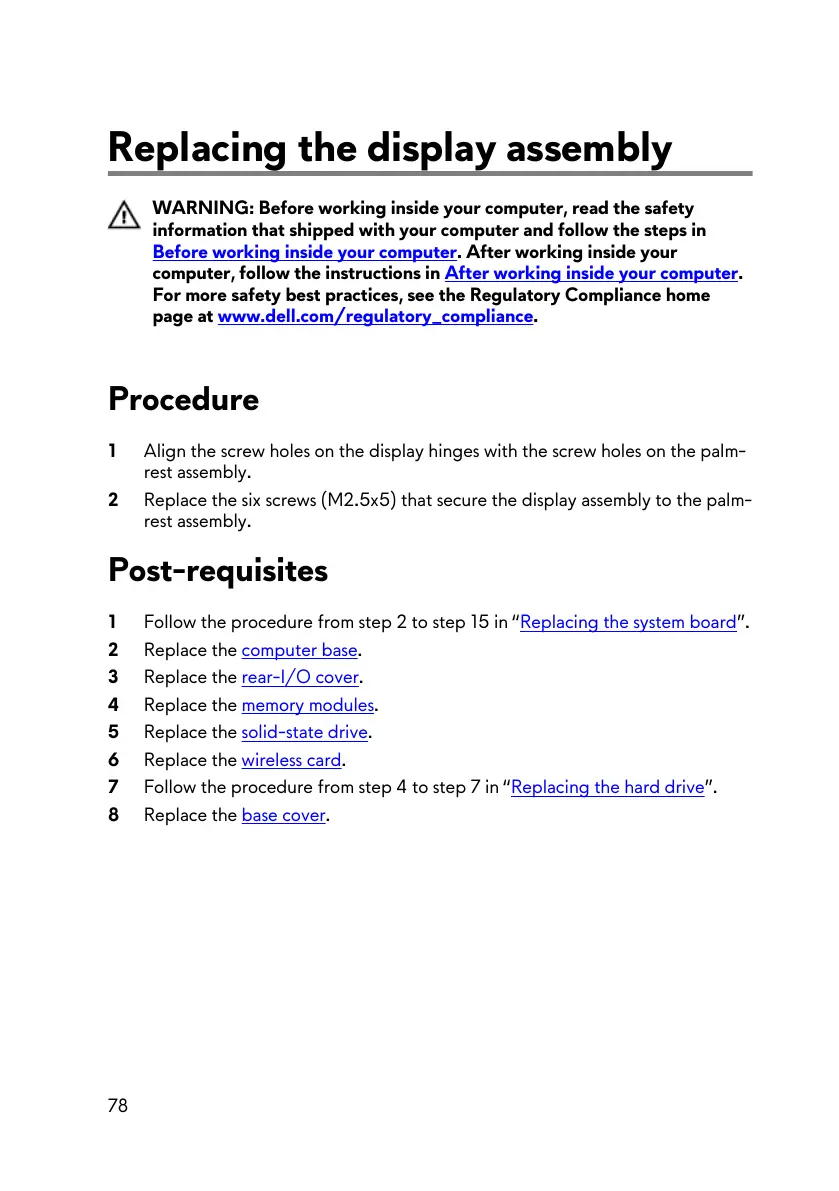

Replacing the display assembly
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your computer.
For more safety best practices, see the Regulatory Compliance home
page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the display hinges with the screw holes on the palm-
rest assembly.
2 Replace the six screws (M2.5x5) that secure the display assembly to the palm-
rest assembly.
Post-requisites
1 Follow the procedure from step 2 to step 15 in “Replacing the system board”.
2 Replace the computer base.
3 Replace the rear-I/O cover.
4 Replace the memory modules.
5 Replace the solid-state drive.
6 Replace the wireless card.
7 Follow the procedure from step 4 to step 7 in “Replacing the hard drive”.
8 Replace the base cover.
78
