About your monitor | 23

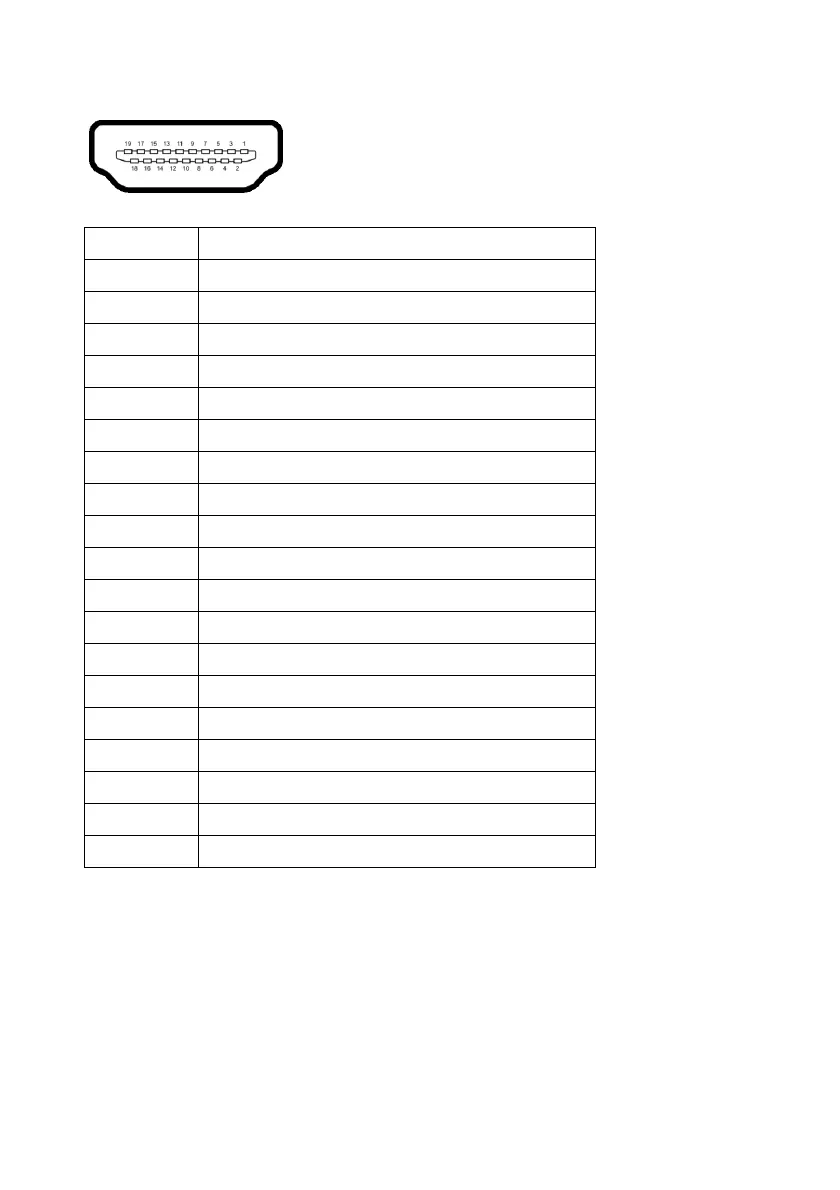

HDMI connector
Plug-and-Play capability
You can connect the monitor to any Plug-and-Play compatible computer. The
monitor automatically provides the computer with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so that
the computer can configure itself and optimize the monitor settings. Most
monitor installations are automatic; you can select different settings, if required.
For more information about changing the monitor settings, see Operating the
monitor.
Pin number 19-pin side of the connected signal cable
1T
MDS DATA 2+
2 TMDS DATA 2 SHIELD
3TMDS DATA 2-
4TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6TMDS DATA 1-
7TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5 V POWER
19 HOT PLUG DETECT
