Alienware m15 R7 AMD Service Manual

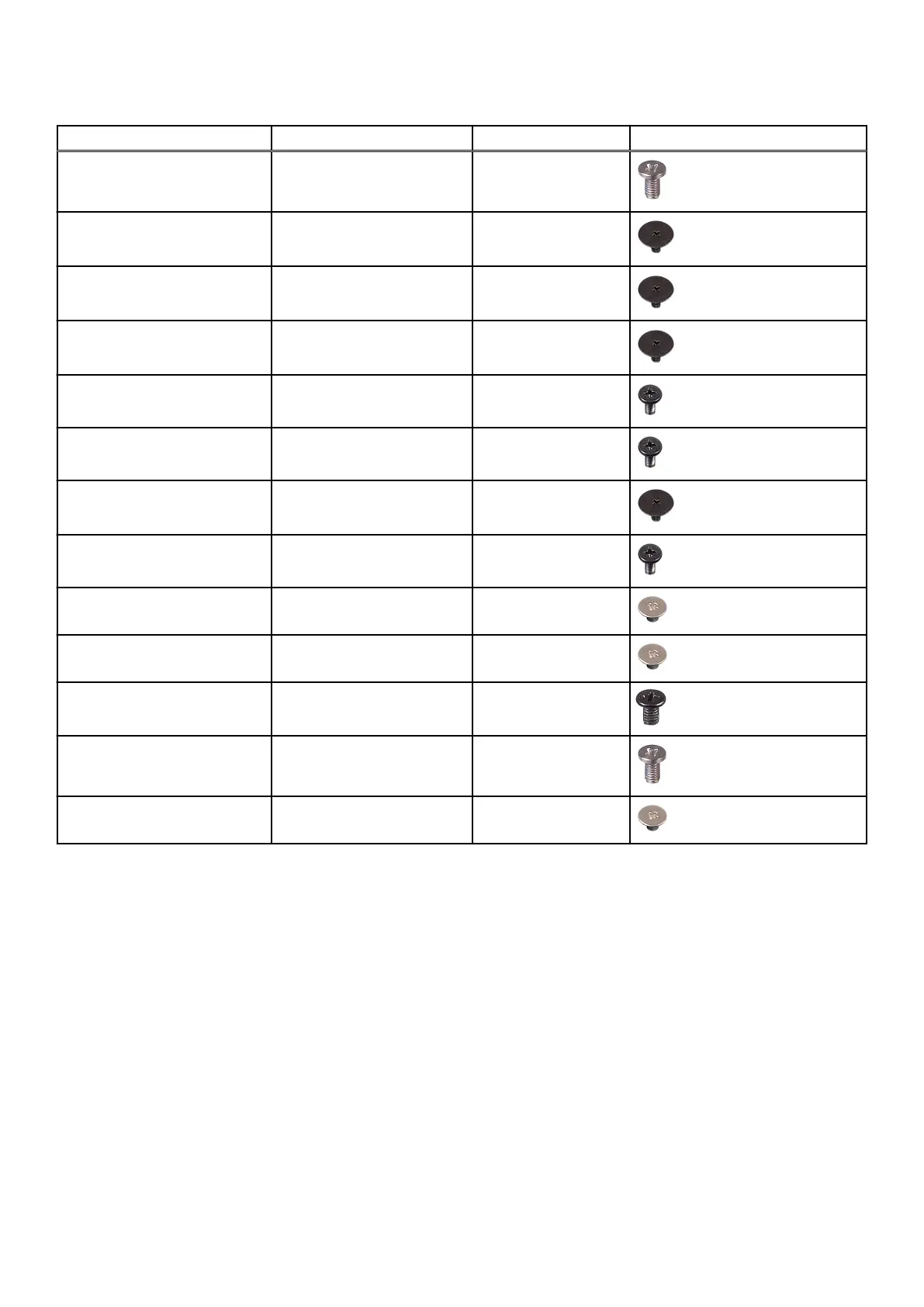

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Display-assembly hinges M2.5x5 6
Touchpad bracket M2.5x2.5 2
Touchpad M2x2 2
Keyboard-controller board M2x2 1
Type-C bracket M2x4 2
System board M2x4 7
System board M2x2 1
Fan and heat-sink assembly M2x4 (captive screw) 6
Ethernet and audio board M2x4 2
USB board M2x4 3
Rear I/O cover M2x4 2
Rear I/O cover M2.5x5 2
Power button M2x2 3
Major components of Alienware m15 R7 AMD
The following image shows the major components of Alienware m15 R7 AMD.
10

Alienware m15 R7 AMD Specifications

General

Brand	Alienware
Model	m15 R7 AMD
Category	Laptop
Language	English
