Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

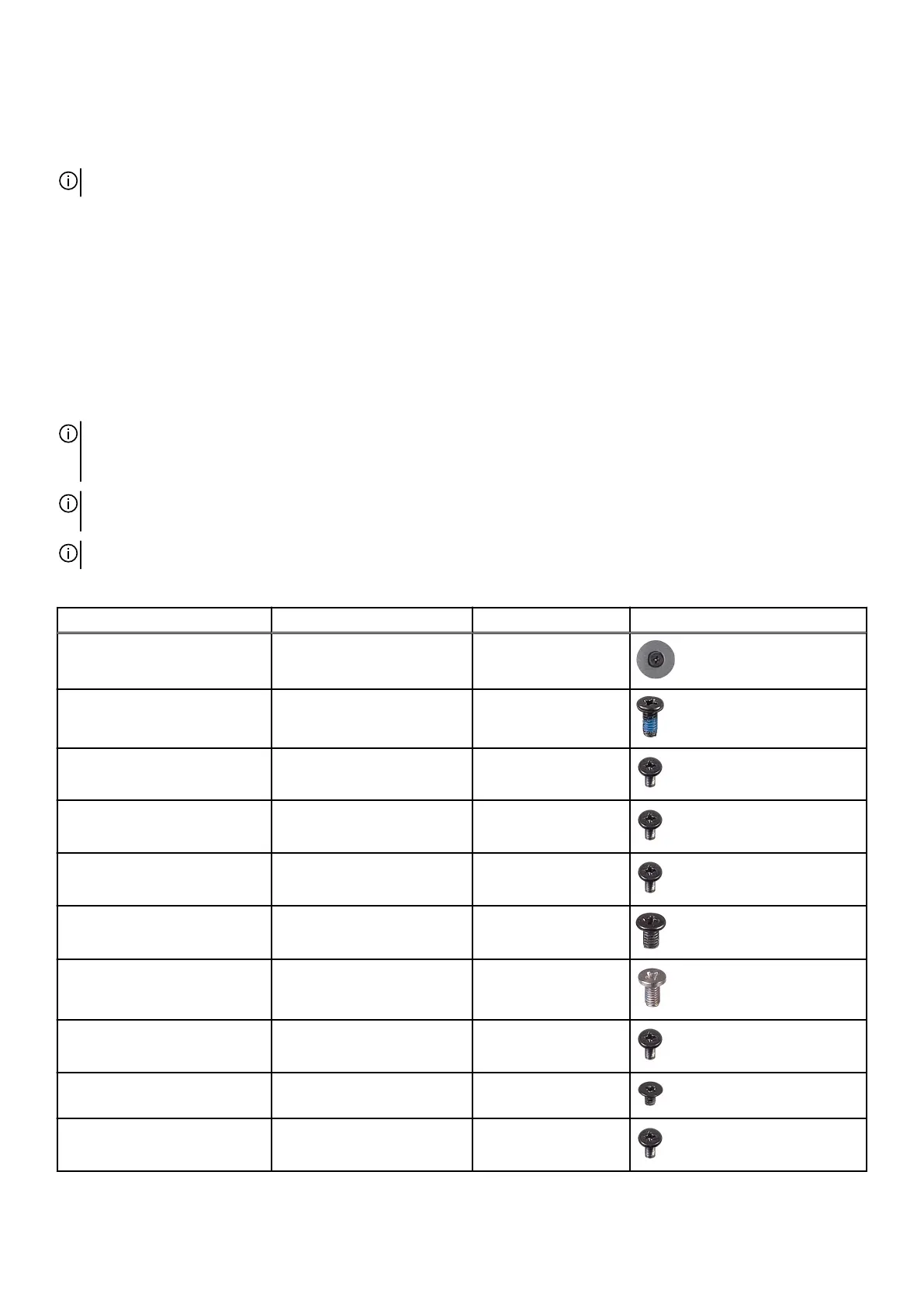

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2.5x14 (captive screw) 4
Base cover M2.5x5 4
2230 or 2280 solid-state drive
in SSD Slot one
M2x4 2
2230 or 2280 solid-state drive
in SSD Slot two
M2x4 2
Wireless-card bracket M2x4 1
Rear I/O cover M2x2 3
Rear I/O cover M2.5x5 2
Battery M2x4 4
Battery M2x3 1
Power-adapter port-bracket M2x4 2
9
