Steps
1. Using the alignment posts, place the battery on the palm-rest and keyboard assembly.
2. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.
3. Replace the four screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.
4. Replace the screw (M2x3) that secure the battery to the palm-rest and keyboard assembly.
5. Connect the battery cable to the system board.
6. Adhere the tape that secures the battery cable to the battery.
Next steps
1. Install the
base cover.
2. Follow the procedure in
After working inside your computer.
Battery cable
Removing the battery cable
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
NOTE: If the battery is disconnected from system board for service, then there is a delay during boot as the computer undergoes
RTC battery reset.

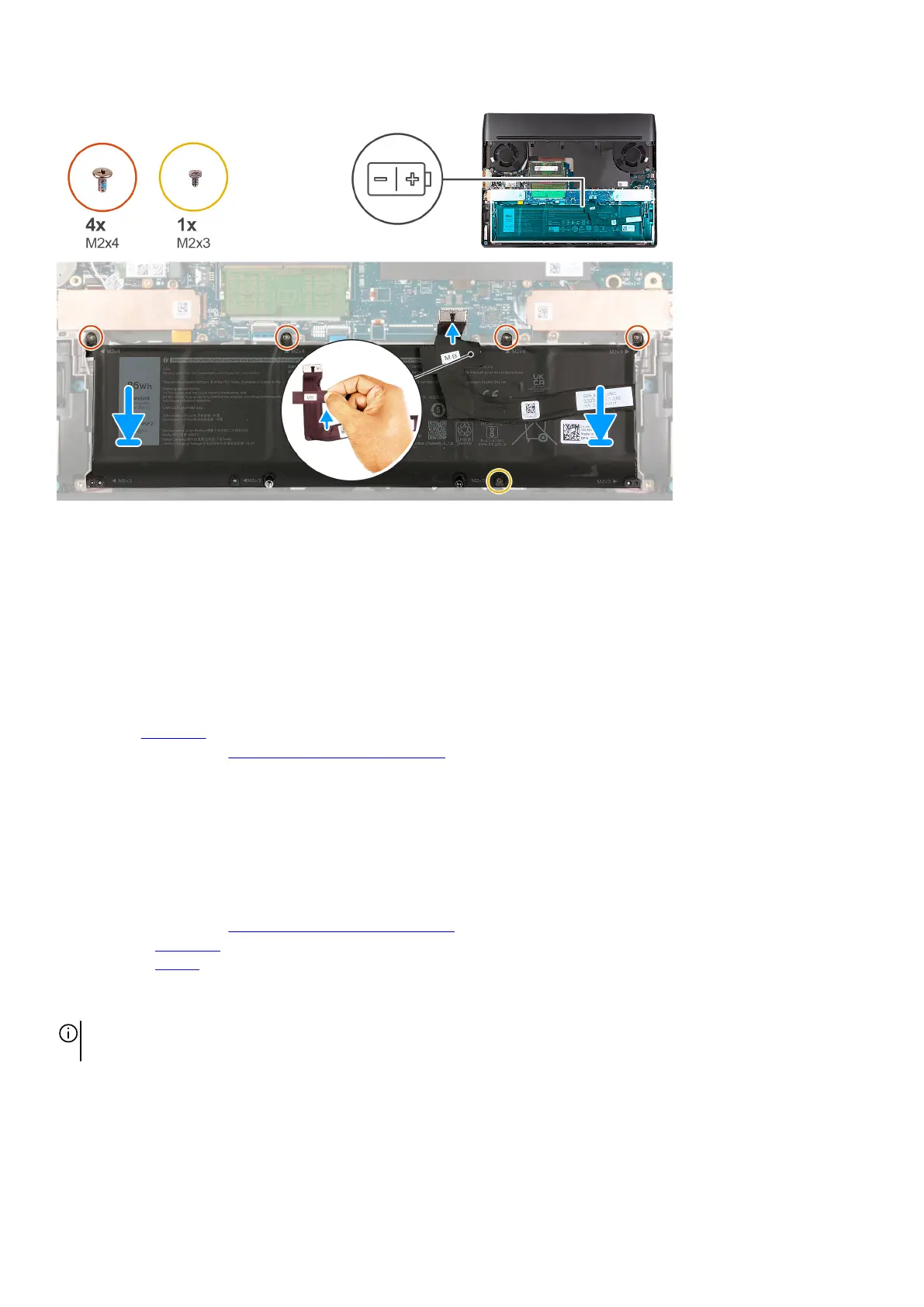

The following image(s) indicate the location of the battery cable and provides a visual representation of the removal procedure.
