Steps
1. Turn the battery over.
2. Peel the battery cable off the battery.
3. Disconnect the battery cable from the battery.
4. Lift the battery cable off the battery.
Installing the battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

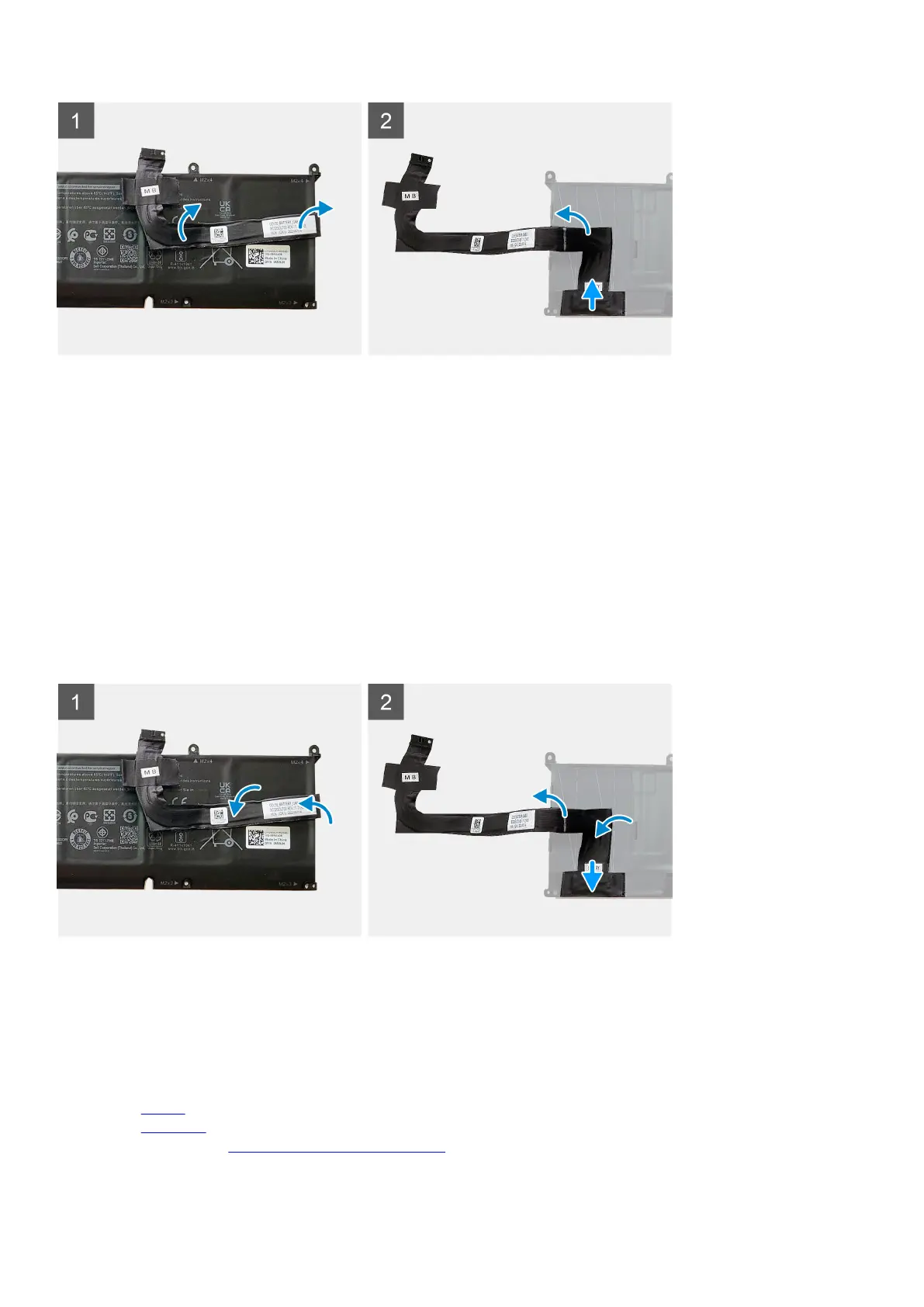

The following image(s) indicate the location of the battery cable and provides a visual representation of the installation procedure.
Steps
1. Connect the battery cable to the battery.
2. Adhere the battery cable to the battery.
3. Turn the battery over.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in
After working inside your computer.
37
