Steps

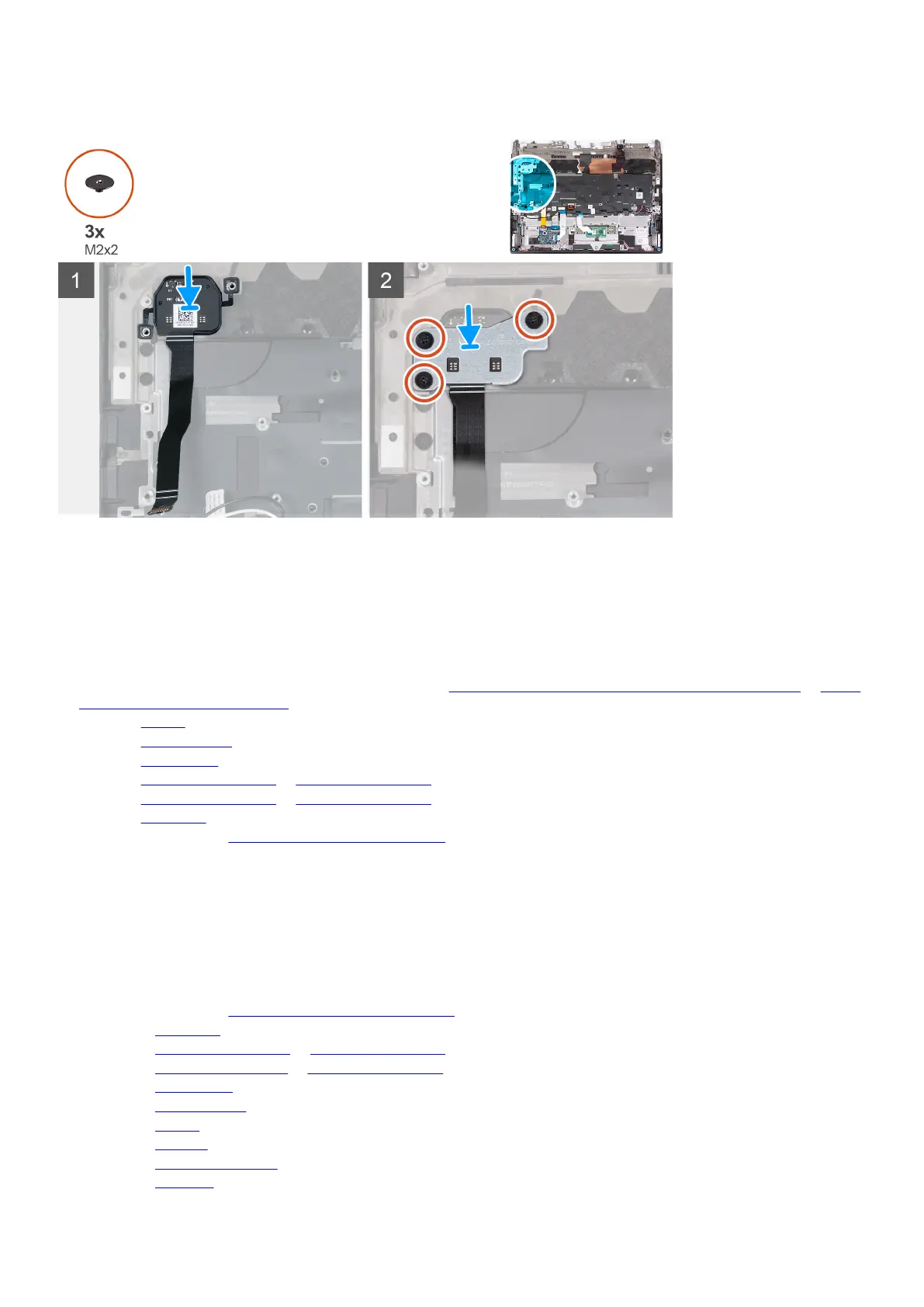

1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Align the screw holes on the power-button bracket to the screw holes on the palm-rest and keyboard assembly.
3. Replace the three screws (M2x2) that secure the power-button bracket to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure from step 6 to step 25 in installing the
system board (NVIDIA GeForce 3060/3070 Ti/3080 Ti) or system
board (NVIDIA GeForce 3050 Ti), whichever applicable.
2. Install the battery.
3. Install the
rear-I/O cover.
4. Install the wireless card.
5. Install the 2230 solid-state drive or 2280 solid-state drive in slot one, whichever applicable.
6. Install the 2230 solid-state drive or 2280 solid-state drive in slot two, whichever applicable.
7. Install the
base cover.
8. Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive or 2280 solid-state drive in slot one, whichever applicable.
4. Remove the 2230 solid state drive or 2280 solid-state drive in slot two, whichever applicable.
5. Remove the wireless card.
6. Remove the rear-I/O cover.
7. Remove the
battery.
8. Remove the speakers.
9. Remove the power-adapter port.
10.Remove the touchpad.
