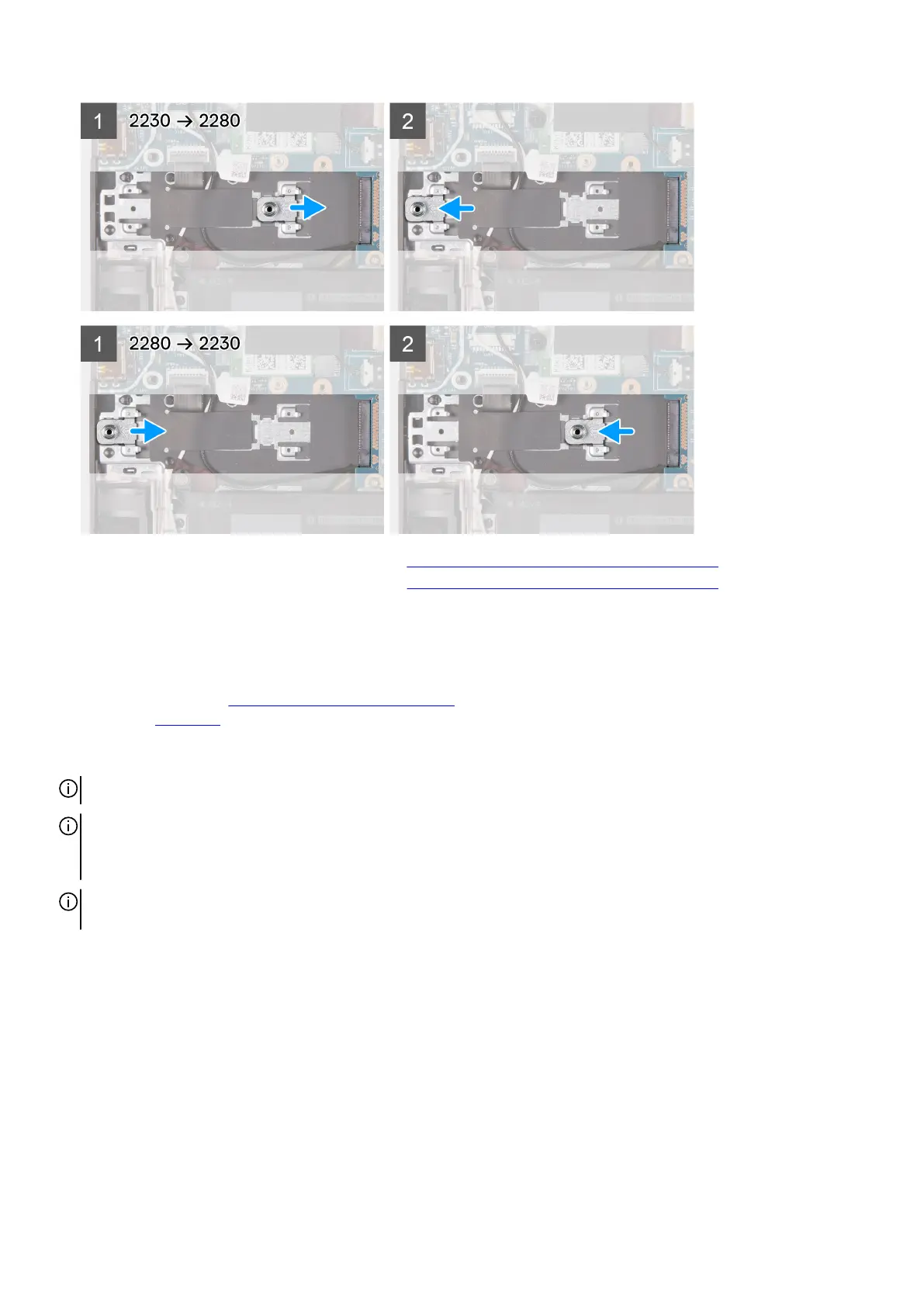

3. To install a 2230 solid-state drive in SSD slot one, see installing the 2230 solid-state drive in SSD slot one.
4. To install a 2280 solid-state drive in SSD slot one, see installing the 2280 solid-state drive in SSD slot one.
Removing the 2230 solid-state drive in slot two
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: This procedure applies only to computers shipped with an 2230 solid-state drive installed in M.2 slot two (SSD2).
NOTE: The M.2 card installed on M.2 slot two (SSD2) will depend on the configuration ordered. Supported card configurations:
● 2230 solid-state drive
● 2280 solid-state drive
NOTE: Only computers shipped with a NVIDIA GeForce 3060/3070 Ti/3080 Ti graphics card can have a solid-state drive
installed in M.2 slot two (SSD2).
The following image(s) indicate the location of the 2230 solid-state drive in slot two and provides a visual representation of the
removal procedure.
22
