Steps
1. Connect the USB board to the system-board assembly.

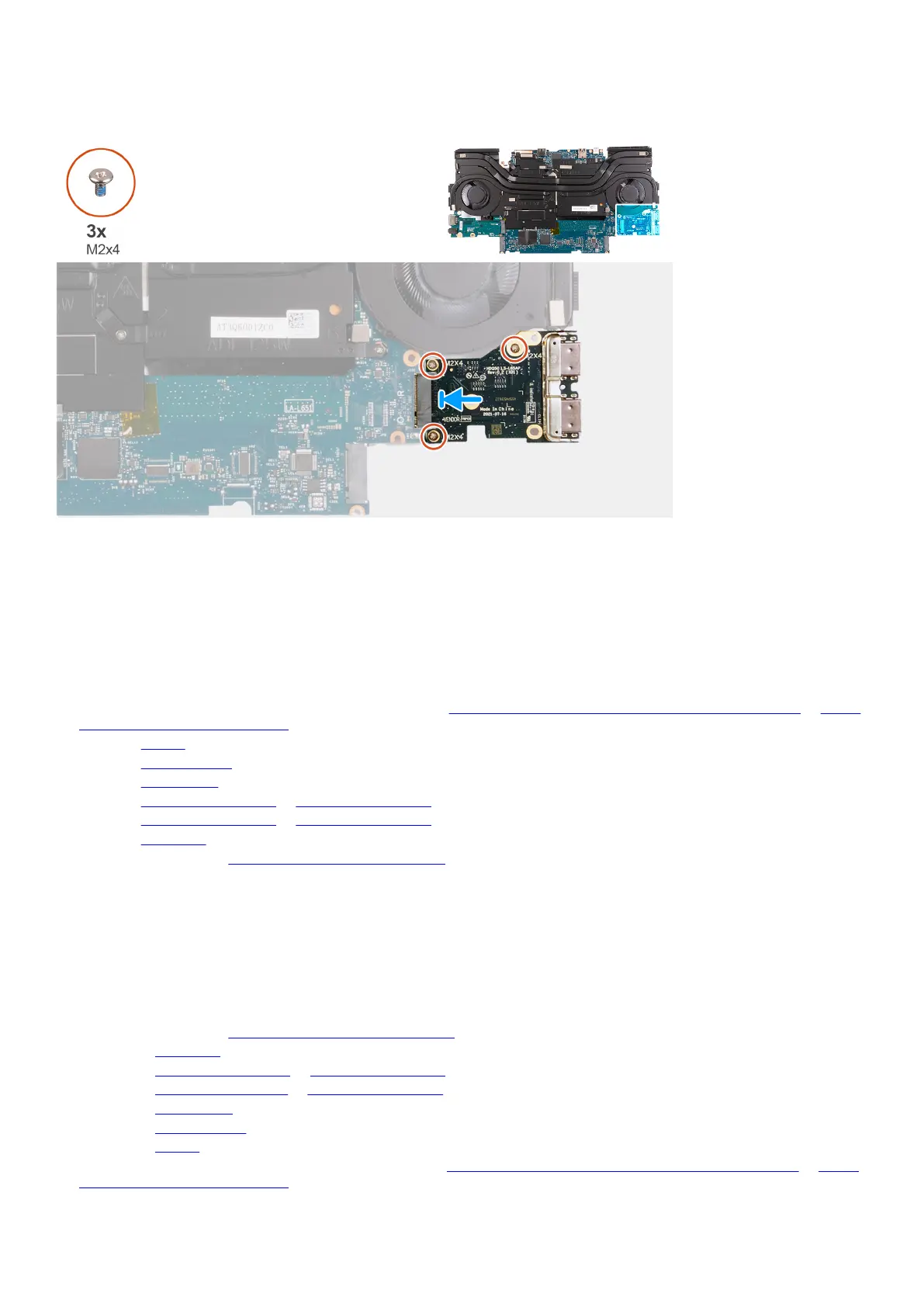

2. Align the screw holes on the USB board to the screw holes on the system-board assembly.
3. Replace the three screws (M2x4) that secure the USB board to the system-board assembly.
4. Turn the system-board assembly over.
Next steps
1. Follow the procedure from step 6 to step 25 in installing the
system board (NVIDIA GeForce 3060/3070 Ti/3080 Ti) or system
board (NVIDIA GeForce 3050 Ti), whichever applicable.
2. Install the
battery.
3. Install the rear-I/O cover.
4. Install the wireless card.
5. Install the 2230 solid-state drive or 2280 solid-state drive in slot one, whichever applicable.
6. Install the
2230 solid-state drive or 2280 solid-state drive in slot two, whichever applicable.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive or 2280 solid-state drive in slot one, whichever applicable.
4. Remove the 2230 solid state drive or 2280 solid-state drive in slot two, whichever applicable.
5. Remove the wireless card.
6. Remove the
rear-I/O cover.
7. Remove the battery.
8. Follow the procedure from step 1 to step 21 in removing the system board (NVIDIA GeForce 3060/3070 Ti/3080 Ti) or system
board (NVIDIA GeForce 3050 Ti), whichever applicable.
