16.Disconnect the camera cable from the system board.
17. Lift the Mylar that covers the tapes that secure the camera cable to the system board.
18.Peel the tapes securing the camera cable to the system board and lift the camera cable off the system board.
NOTE: Step 16 to step 18 are applicable only for computers shipped with an infrared camera.
19.Remove the seven screws (M2x4) that secure the system board to the palm-rest and keyboard assembly.
20.Remove the screw (M2x2) that secures the system board to the palm-rest and keyboard assembly.
21. Hold firmly on the left and right fans and lift the system-board assembly off the palm-rest and keyboard assembly.
22.Remove the
fan and heat-sink assembly.
23.Remove the
ethernet and audio board.
24.Remove the
USB board.
25.Turn the system board over.
26.After performing all the above steps, you are left with the system board.
Installing the system board (NVIDIA GeForce 3060/3070 Ti/3080 Ti graphics
card)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: This procedure only applies to computers shipped with a NVIDIA GeForce 3060/3070 Ti/3080 Ti graphics card.

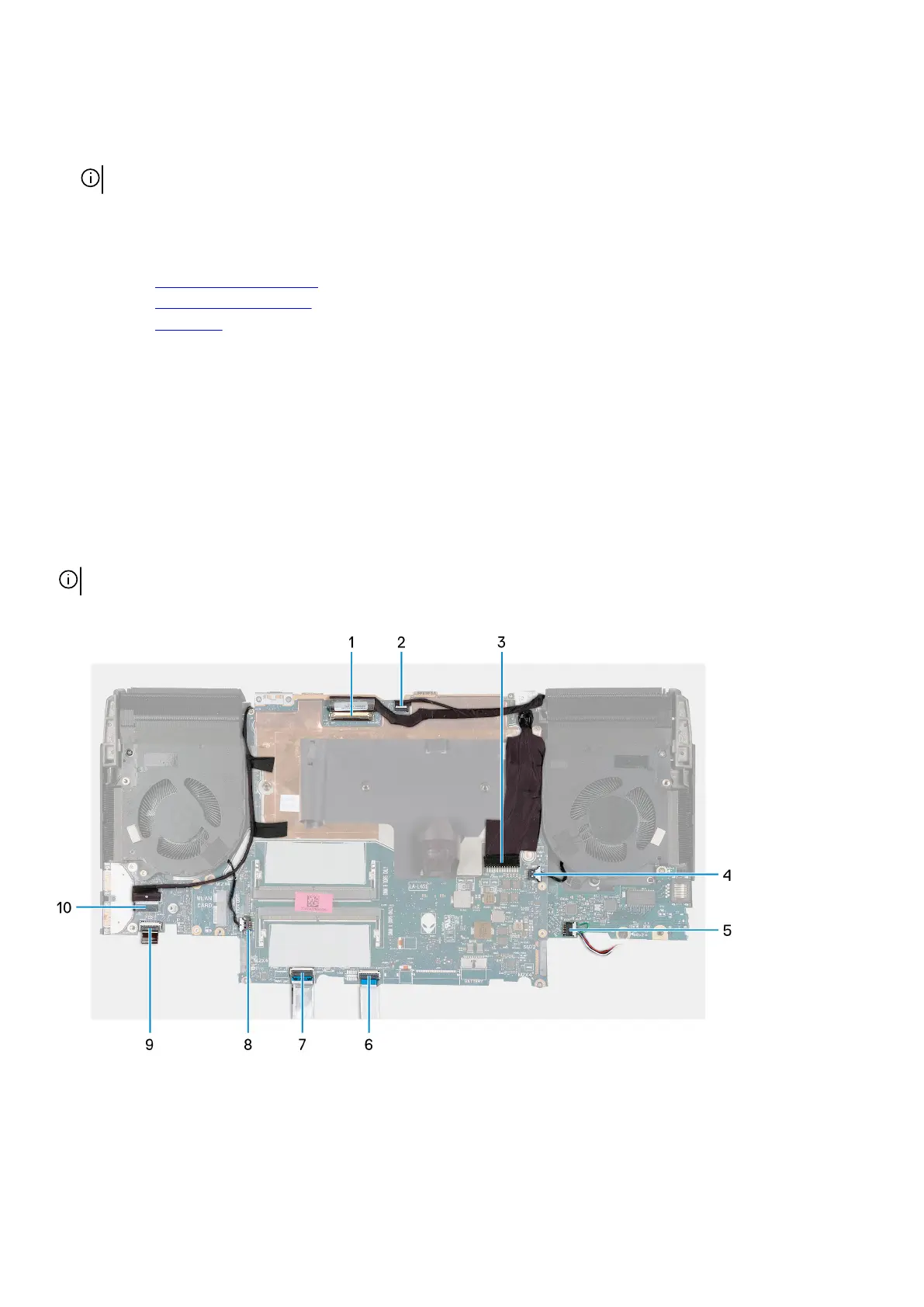

The following image indicates the connectors on your system board.
1. Display cable
2. Alien head LED-cable
3. Power-adapter cable
4. Right-fan cable
5. Speaker cable
6. Touchpad cable
52
