NOTE: The system board can be removed and installed along with the memory, ethernet and audio board, USB board, and
fan and heat sink-assembly. This simplifies the removal and installation procedure and avoids breaking the thermal bond
between the system board and heat sink.
About this task

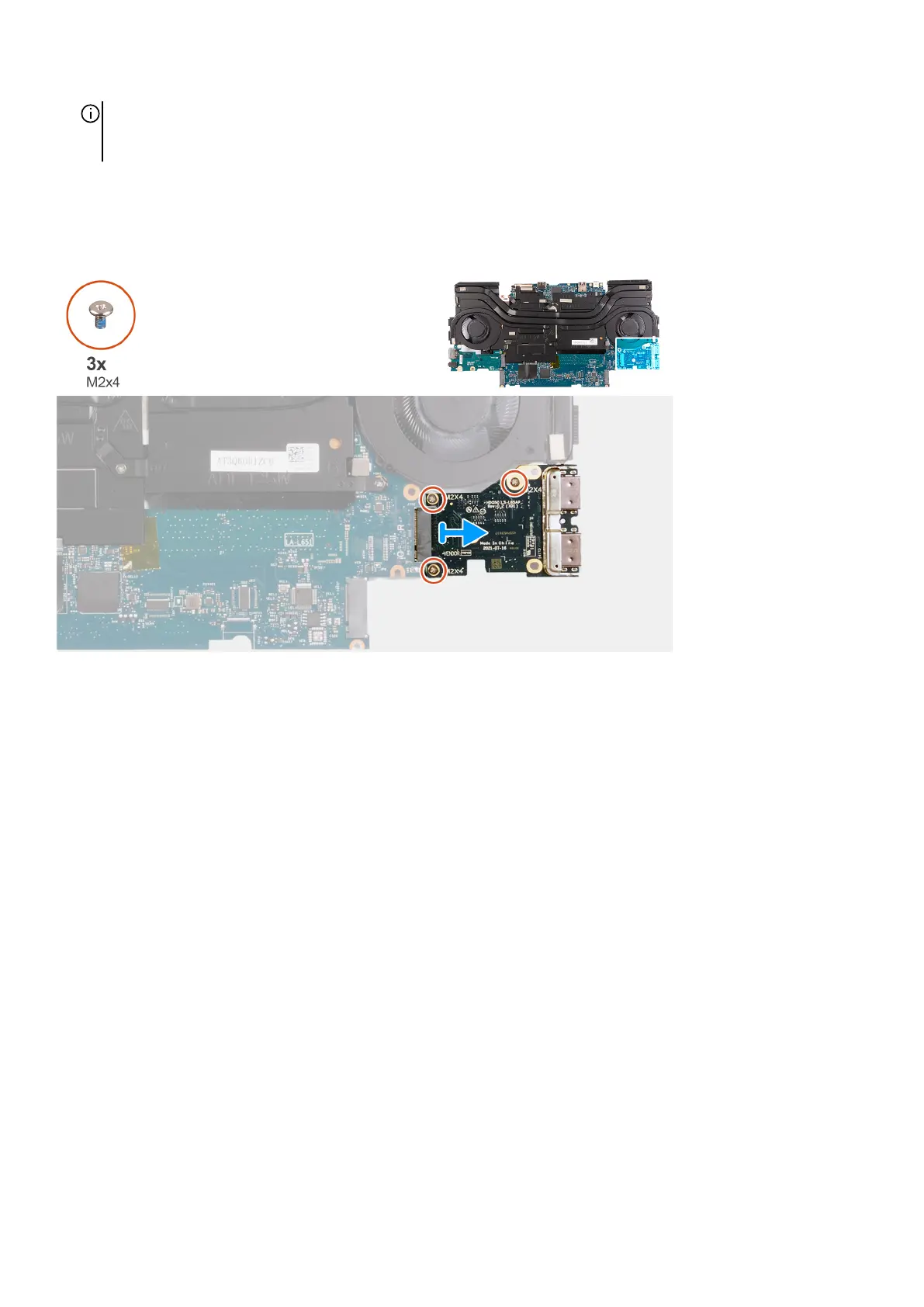

The following image(s) indicate the location of the USB board and provides a visual representation of the removal procedure.
Steps
1. Turn over the system-board assembly.
2. Remove the three screws (M2x4) that secure the USB board to the system-board assembly.
3. Lift at an angle and remove the USB board from the system-board assembly.
Installing the USB board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the USB board and provides a visual representation of the installation procedure.
64
