Alienware m16 R1

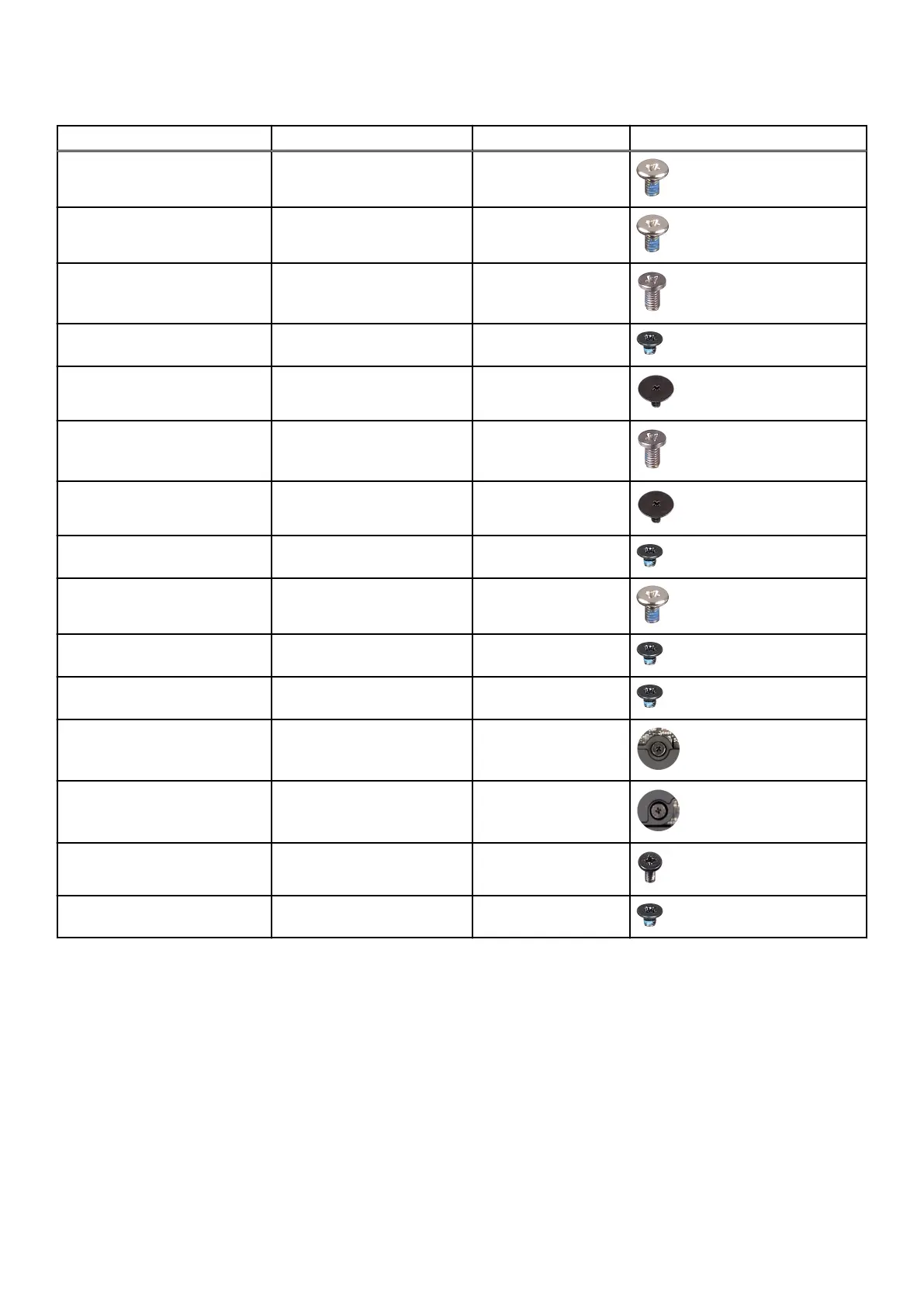

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Battery M2x4 4
Power-adapter port-bracket M2x4 2
Display-assembly hinges M2.5x5 10
Touchpad bracket M2x2.5 6
Touchpad M2x2 2
Antenna M2.5x5 4
Keyboard-controller board M2x2 2
Type-C bracket M2x2.5 2
System board M2x4 18
System board M2x2.5 2
Top heat-sink M2x2.5 4
Fan and heat-sink assembly M2x8.05 (captive) 4
Fan and heat-sink assembly M2x7.1 (captive) 4
Audio board M2x4 2
Power button bracket M2x2.5 3
Major components of Alienware m16 R1
The following image shows the major components of Alienware m16 R1.
