Alienware m16 R1

Steps

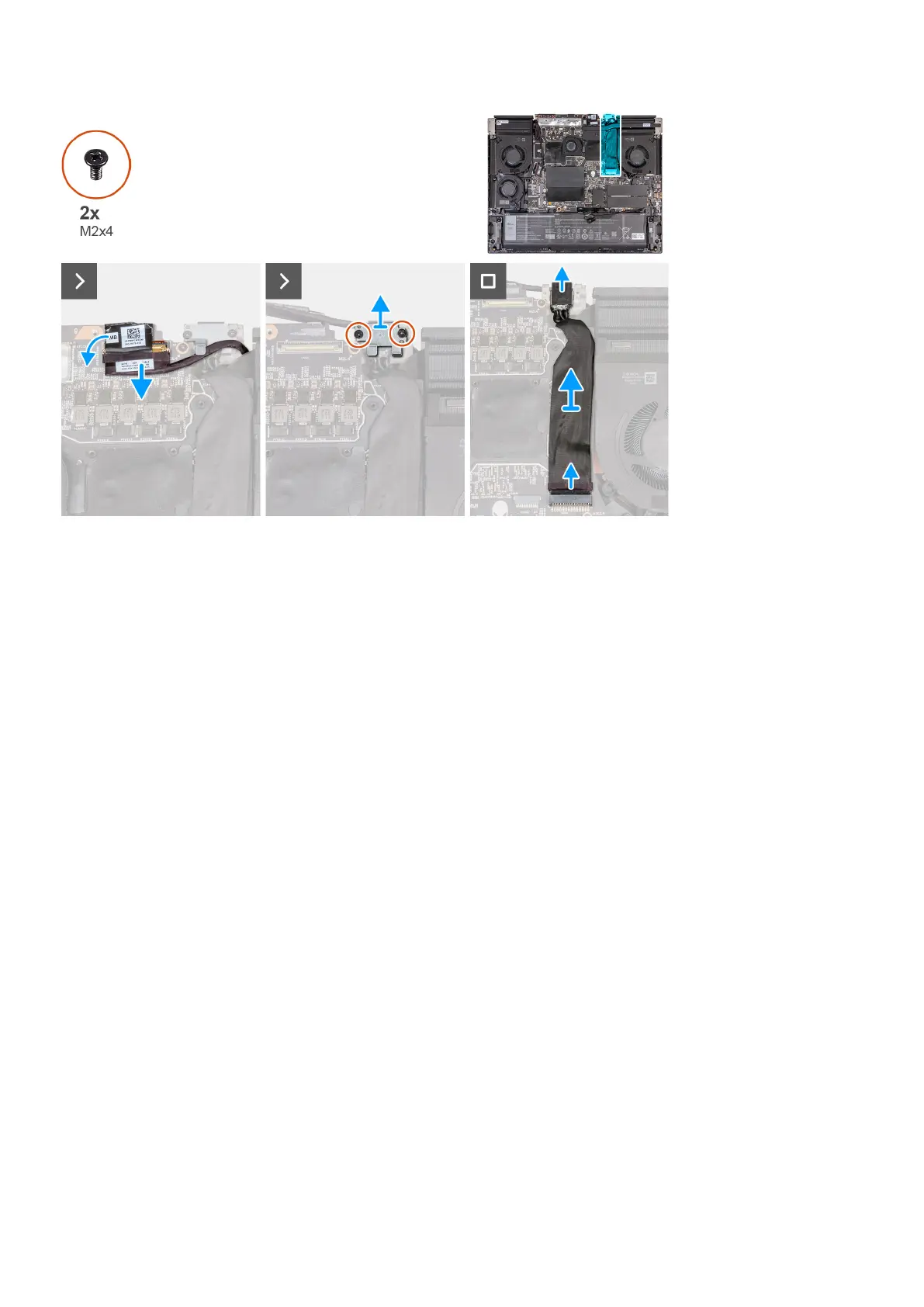

1. Peel the tape that secures the display-cable connector latch to the system board.
2. Open the latch and disconnect the display cable from the system board.
3. Remove the two screws (M2x4) that secure the power-adapter port-bracket to the palm-rest and keyboard assembly.
4. Lift the power-adapter port bracket off the palm-rest and keyboard assembly.
5. Disconnect the power-adapter port-cable from the system board.
6. Peel the power-adapter port-cable from the Mylar.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
38
