Alienware m16 R1

Steps

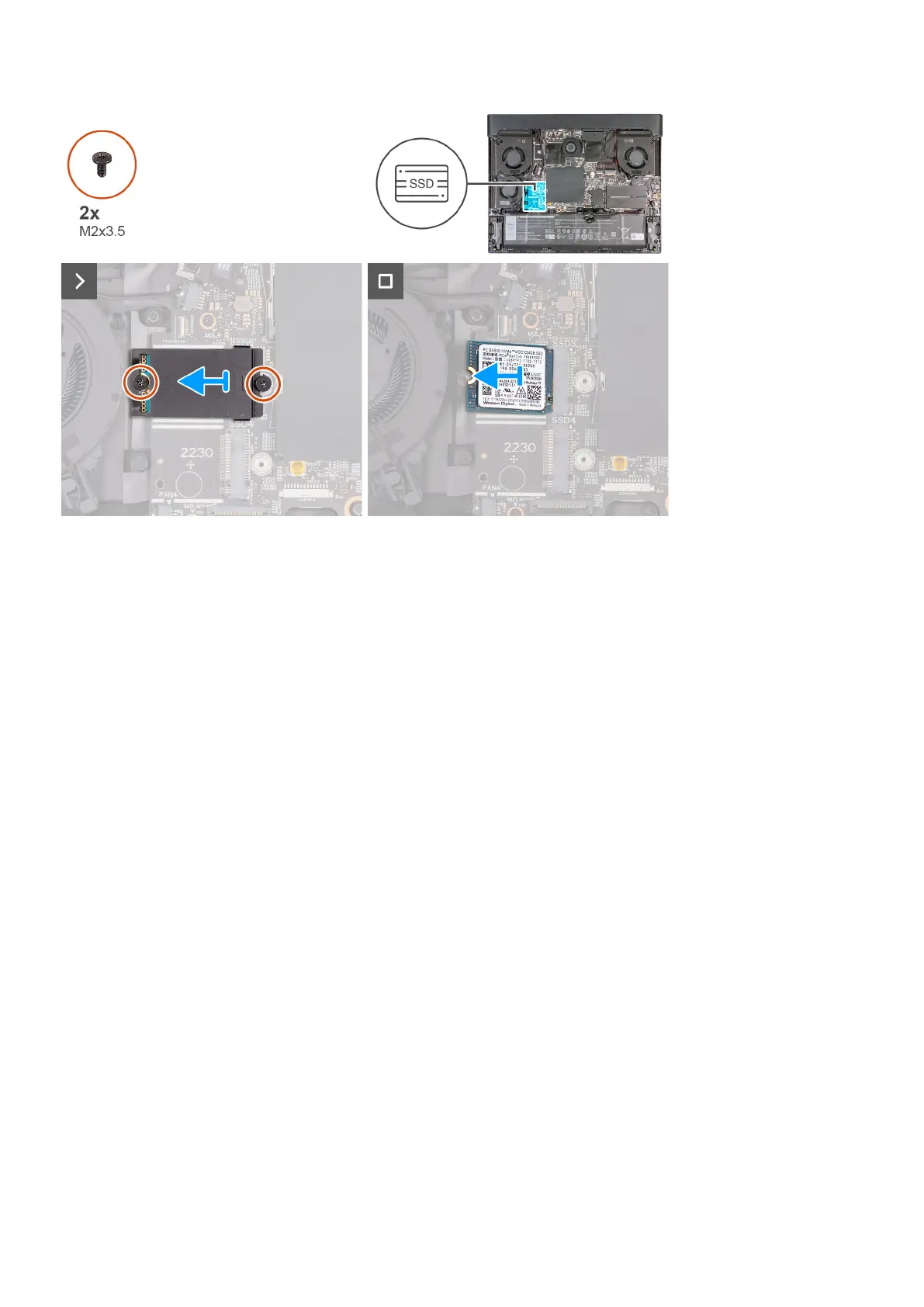

1. Remove the two screws (M2x3.5) that secure the 2230 thermal shield to the palm-rest and keyboard assembly.
2. Slide and remove the 2230 thermal shield off the solid-state drive.
3. Slide and lift the 2230 solid-state drive from the solid-state drive slot.
Installing the 2230 solid-state drive in slot three and four
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the 2230 solid-state drive in slot three and four and provides a visual representation
of the installation procedure.
21
