Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

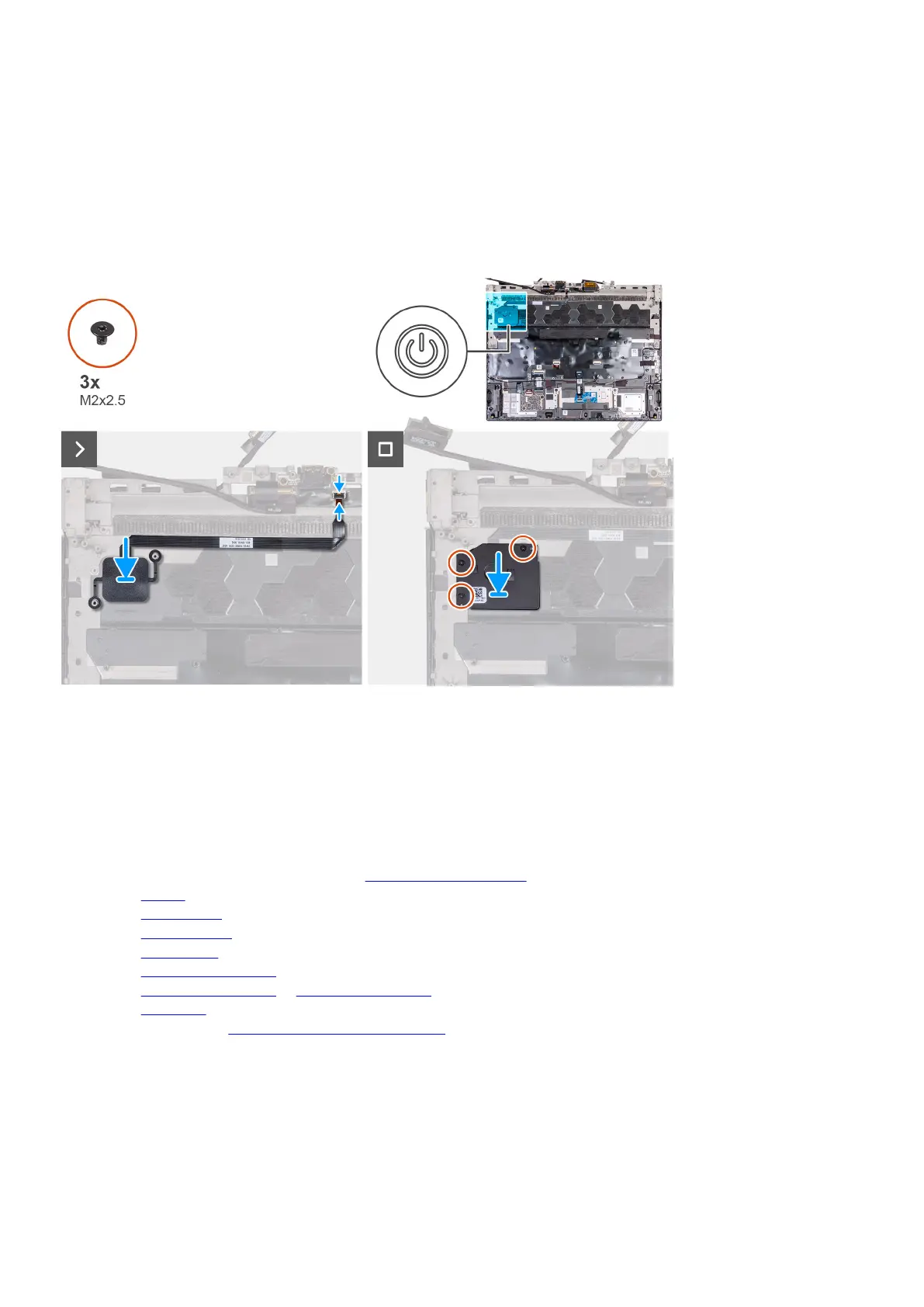

The following image(s) indicate the location of the power button and provides a visual representation of the installation procedure.
Steps
1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Connect the power-button cable and close the latch to secure the cable.
3. Align the screw holes on the power-button bracket to the screw holes on the palm-rest and keyboard assembly.
4. Replace the three screws (M2x2.5) that secure the power-button bracket to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure from step 5 to step 13 in
Installing the system board.
2. Install the battery.
3. Install the top heat-sink.
4. Install the rear-I/O cover.
5. Install the
wireless card.
6. Install the 2230 solid-state drive in slot three and four.
7. Install the 2280 solid-state drive or 2230 solid-state drive in slot one and two, whichever applicable.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
65
