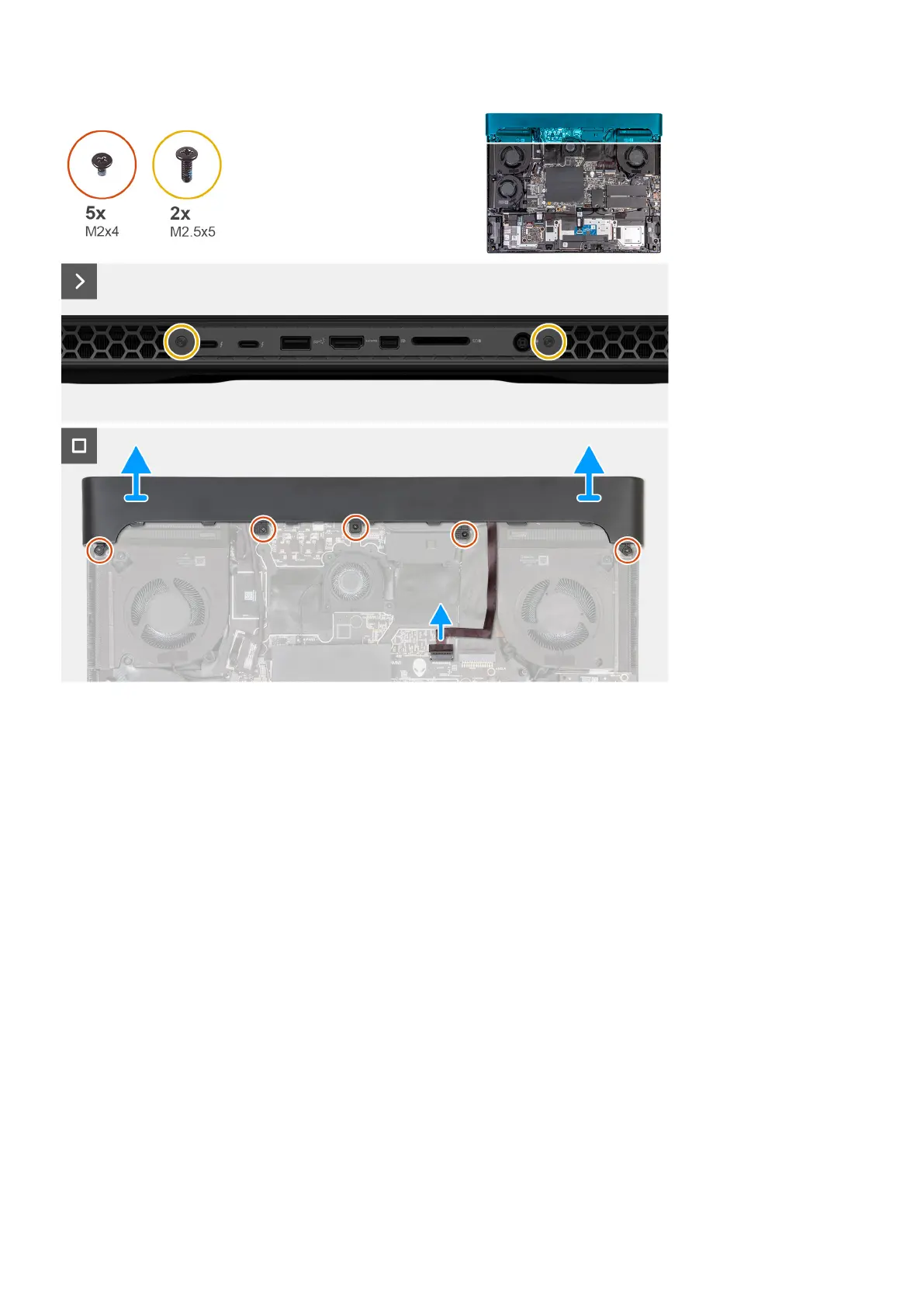

Steps
1. Remove the two screws (M2.5x5) that secure the rear I/O-cover to the palm-rest and keyboard assembly.
2. Remove the five screws (M2x4) that secure the rear I/O-cover to the palm-rest and keyboard assembly.
3. Disconnect the Tron-light cable from the system board.
4. Firmly grasp the sides of your computer with both hands and push the rear I/O-cover outwards with your thumbs to release the
rear I/O-cover from the palm-rest and keyboard assembly.
5. Remove the rear I/O-cover from the palm-rest and keyboard assembly.
Installing the rear-I/O cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the rear-I/O cover and provides a visual representation of the installation procedure.
32
