Alienware m16 R1

10.Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the rear-I/O cover.
About this task

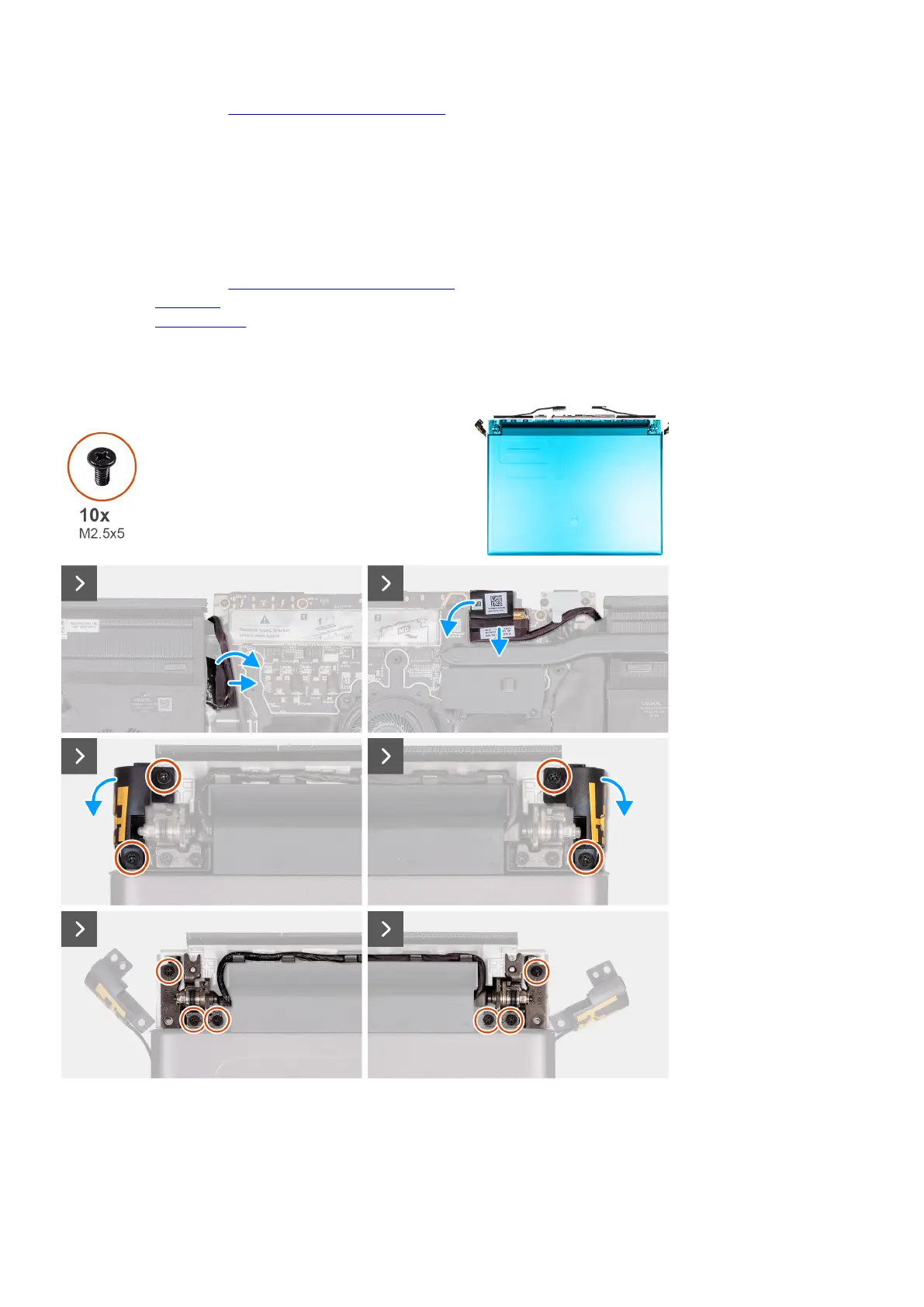

The following image(s) indicate the location of the display assembly and provides a visual representation of the removal procedure.
Steps
1. Peel the tape securing the camera cable to the system board.
2. Disconnect the camera cable from the system board.
3. Disconnect the display cable from the system board.
45
