About this task
NOTE: When removing this component, please refer to the techsheet bundled with the service kit.

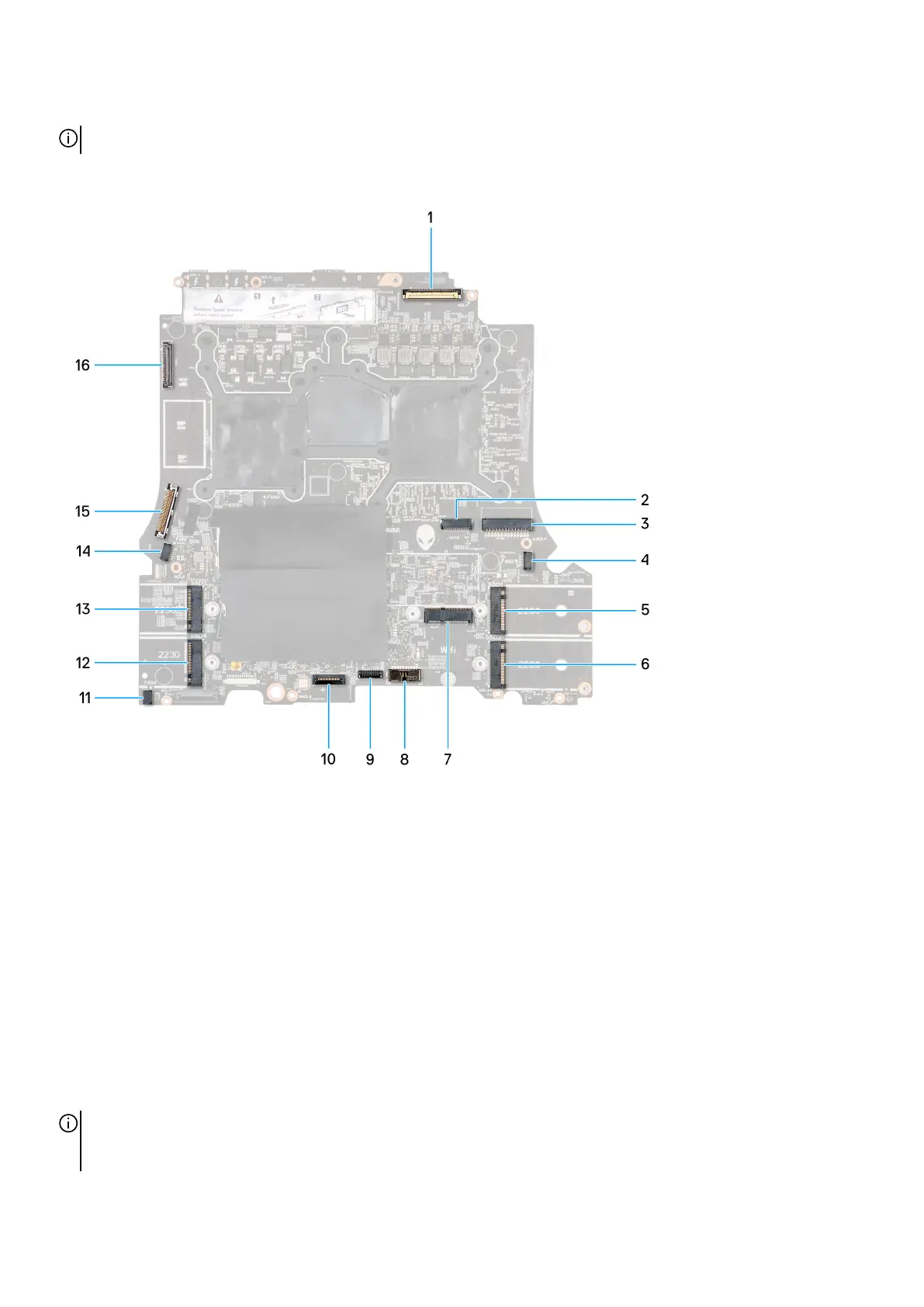

The following image indicates the connectors on your system board.
1. Display cable
2. Alien head LED-cable
3. Power-adapter cable
4. Right-fan cable
5. M.2 card slot for solid-state drive 1
6. M.2 card slot for solid-state drive 2
7. Wireless-card slot
8. Battery cable connector
9. Touchpad cable
10.Keyboard controller and keyboard backlight
11. Left-fan cable 1
12. M.2 card slot for solid-state drive 4
13. M.2 card slot for solid-state drive 3
14. Left-fan cable 2
15.Rear I/O board cable
16.Camera cable
NOTE: Computers shipped with NVIDIA GeForce RTX 4080/4090 graphics card have two M.2 2230 and two M.2 2280
solid-state drive slots, whereas computers shipped with NVIDIA GeForce RTX 4050/4060/4070 graphics card have only two
M.2 2280 solid-state drive slots.
