ALKOTA 4142 - Page 27

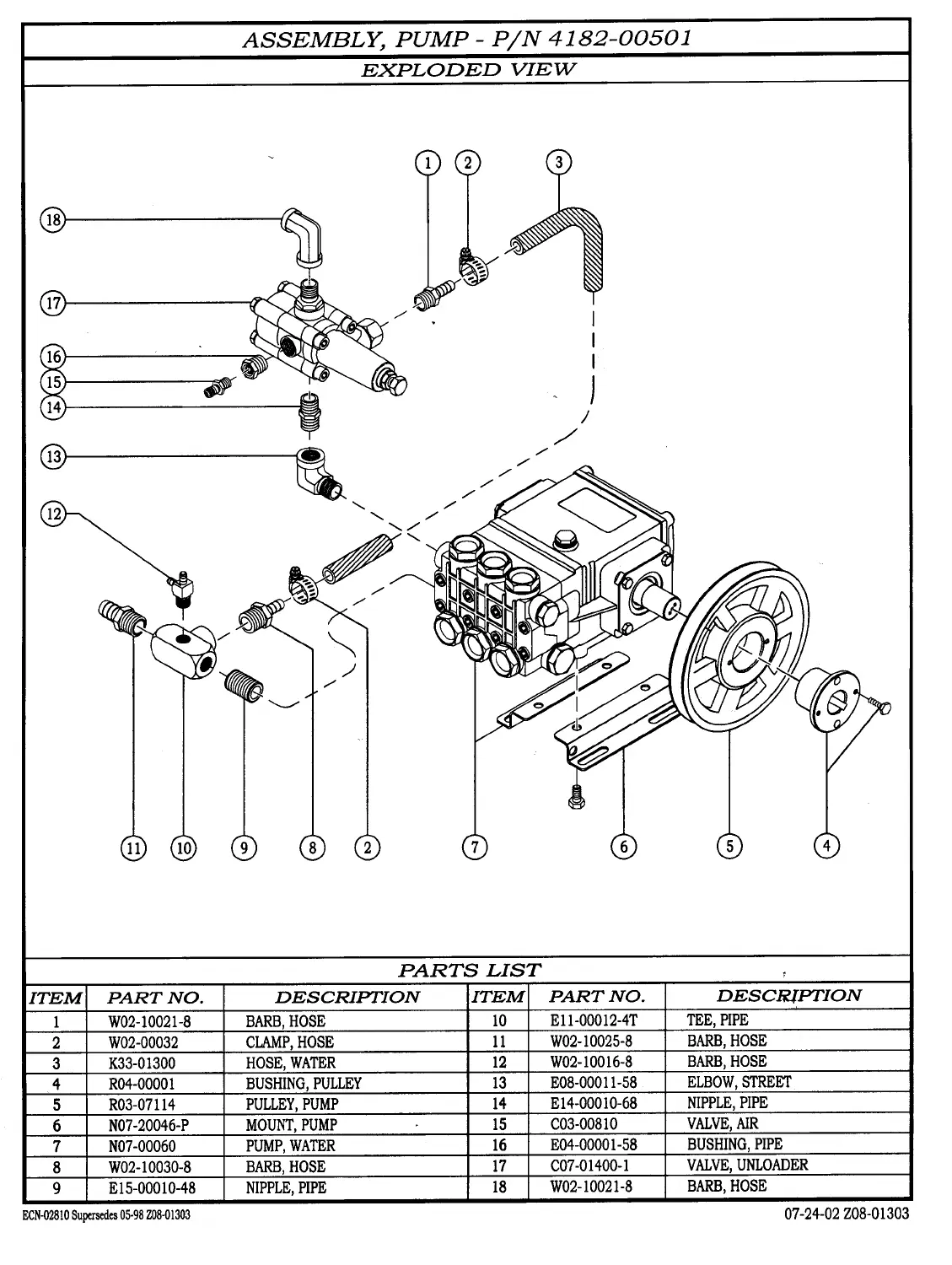

ASSEMBLY, PUMP -PIN 4182-00501
EXPLODED VIEW
@ ~
.I
I
I
J
/
,/
@ ~ /////
'" /
'" /
"'/
'"
PARTS LIST
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1 W02-10021-8 BARB, HOSE 10 E11-00012-4T TEE, PIPE
2 W02-00032 CLAMP, HOSE 11 W02-10025-8 BARB, HOSE
3 K33-01300 HOSE, WATER 12 W02-10016-8 BARB, HOSE
4 R04-00001 BUSHING, PULLEY 13 E08-00011-58 ELBOW, STREET
5 R03-07114 PULLEY, PUMP 14 E14-00010-68 NIPPLE, PIPE
6 N07-20046-P MOUNT, PUMP 15 C03-00810 VALVE, AIR
7 N07-00060 PUMP, WATER 16 E04-00001-58 BUSHING, PIPE
8 W02-10030-8 BARB, HOSE 17 C07-01400-1 VALVE, UNLOADER
9 E15-00010-48 NIPPLE, PIPE 18 W02-10021-8 BARB, HOSE
ECN-02810 Supersedes 05-98 Z08-01303 07-24-02 Z08-0 1303
