ALKOTA 4142 - Page 28

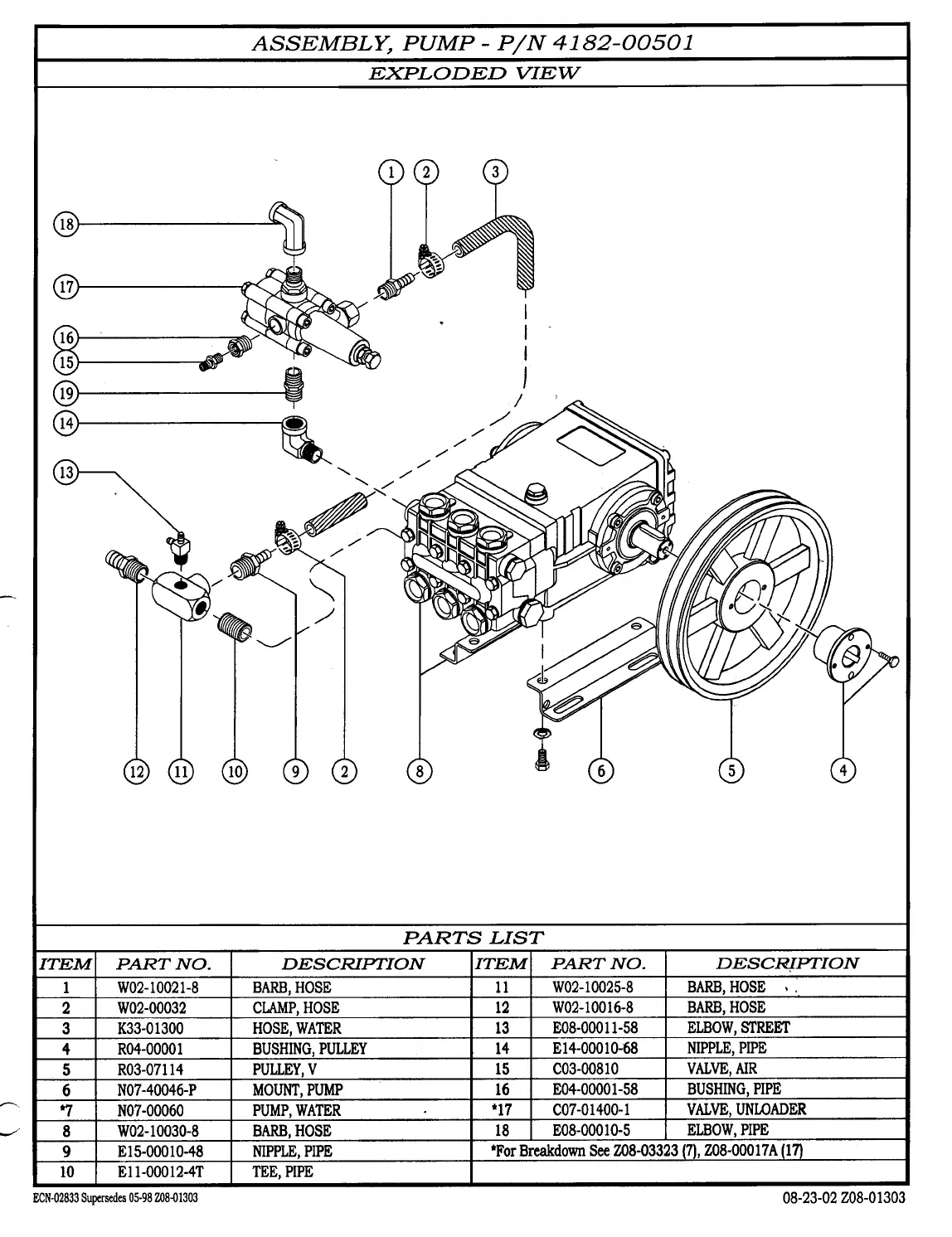

ASSEMBL~ PUMP -PIN 4182-00501
EXPLODED VIEW
@ ~
17
I
16 .I
15 I
19 I
/
./
./
./
./
" ./
" ./
:<"
PARTS LIST
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1 W02-10021-8 BARB, HOSE 11 W02-10025-8 BARB, HOSE, :
2 W02-00032 CLAMP, HOSE 12 W02-10016-8 BARB, HOSE
3 K33-01300 HOSE, WATER 13 E08-00011-58 ELBOW, STREET
4 R04-00001 BUSHING, PULLEY 14 EI4-00010-68 NIPPLE, PIPE
5 R03-07114 PULLEY,V 15 C03-00810 VALVE,AIR
6 N07-40046-P MOUNT, PUMP 16 E04-00001-58 BUSHING, PIPE
~ *7 N07-00060 PUMP, WATER *17 C07-01400-1 VALVE, UNLOADER
~ 8 W02-10030-8 BARB, HOSE 18 E08-00010-5 ELBOW, PIPE
9 EI5-00010-48 NIPPLE, PIPE *For Breakdown See ZO8-03323 7), ZO8-00017A 1
10 EII-00012-4T TEE, PIPE
ECN-02833 Supersedes 05-98 ZO8-O1303 08-23-02 Z08-0 1303
