User Guide V1.1.0 Issue 1
7.

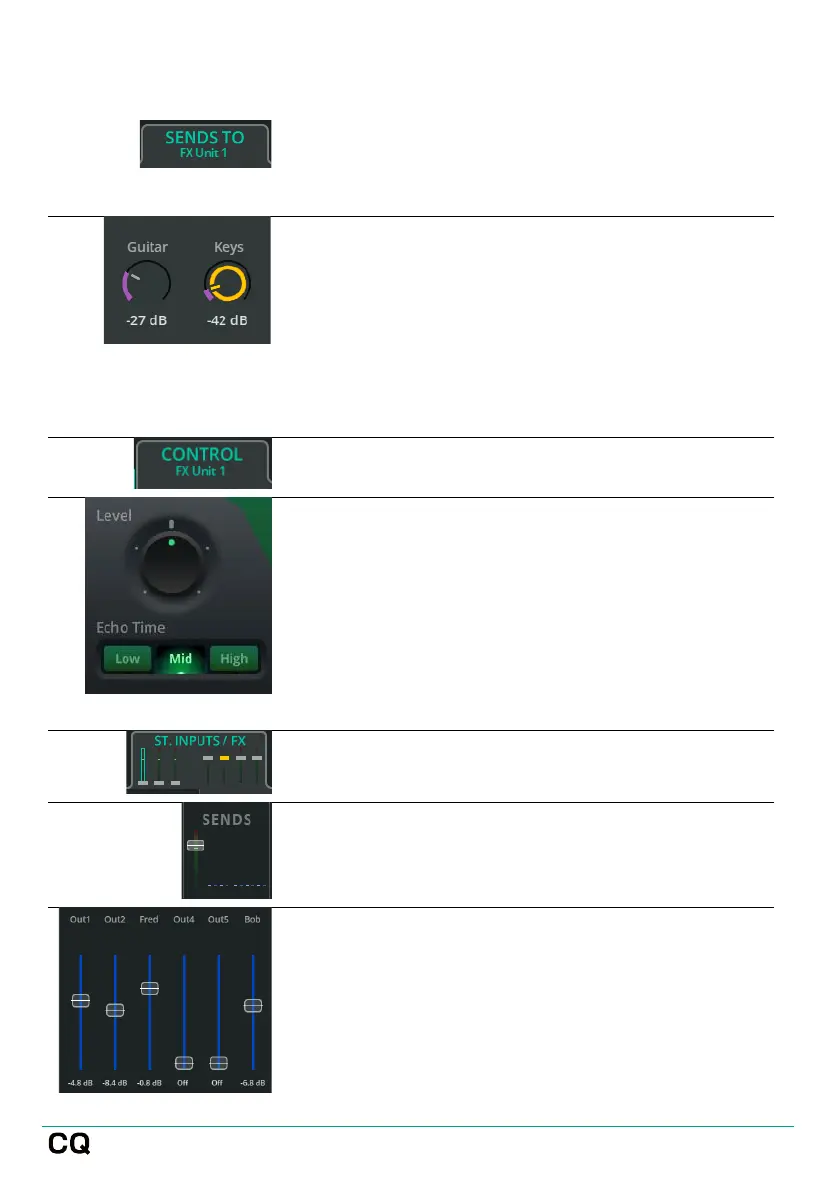

Switch to the SENDS TO tab at the top to
display all channel sends to the selected FX
Unit.
8.
Select and adjust individual send levels to
the FX Unit from each channel. Note that
these send levels are the same as can be
viewed on each channel from the
PROCESSING / SENDS screen. They can
also be adjusted using faders from the
FADER screen by using Sends to and
selecting an FX Unit.
9.
Switch back to the CONTROL tab.
10.
Adjust FX parameters. (Refer to the FX
section of this guide for a detailed
description and configuration of each FX).
Also set Mute Mode:
Trails On – Delays and reverbs decay
naturally after muting.
Trails Off – Delays and reverbs stop
immediately when muted.
11.
In the PROCESSING screen, select the ST.
INPUTS / FX tab
12.
Select the FX Unit channel, then touch/click
SENDS to show all send levels from that FX
Unit.
13.
Adjust send levels to Main LR, other FX Units
and Outputs 1-6 as required, so the FX is
heard only where it should be.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
