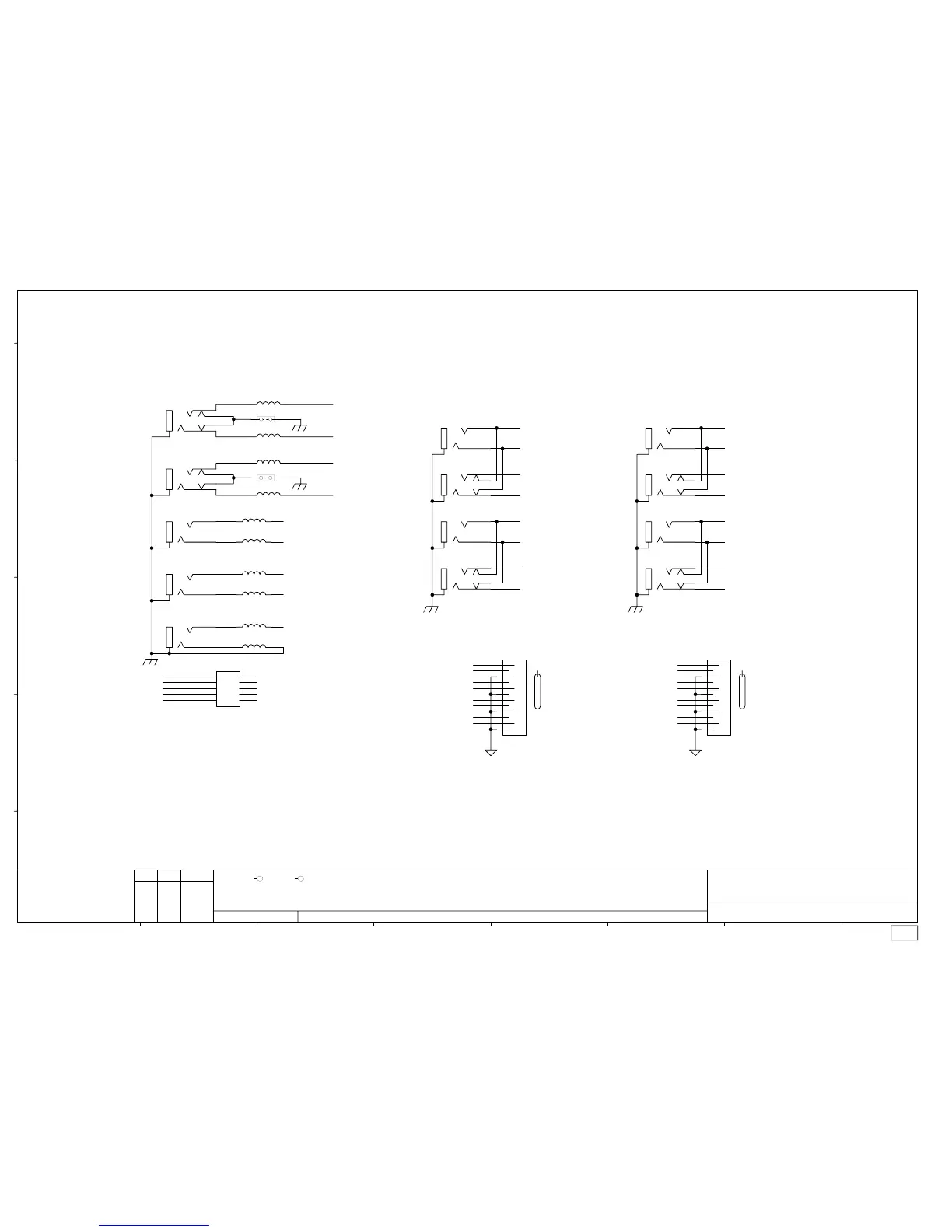

ML3000 MASTER CONNECTOR PCB
C4456 3 3
PAGE:
TITLE:
DRG No: ISSUE: SHEET: OF
ISSUE BY DATE
FILE: C4456_AP2.Sch 10:48:03 14-Jan-2002
ALLEN&HEATH
Tel:
Fax:
PRINTED:
ABCDEFGH
a
b
c
d
e
T
R
CN48
JACK V5M
L81 FB-TH
L82 FB-TH
L83 FB-TH
L84 FB-TH
T
R
CN47
JACK V5M
2TRK IN L+
2TRK IN L-
2TRK IN R+
2TRK IN R-
LK5
LINK OPT
LK6
LINK OPT
2TRK IN
2TRK IN L+ 2TRK IN L-
2TRK IN R+ 2TRK IN R-
LOCAL_L+ LOCAL_L-
LOCAL_R-LOCAL_R+
TB_OUT
T
R
CN52
JACK V3M
L85 FB-TH
L86 FB-TH
L87 FB-TH
L88 FB-TH
T
R
CN51
JACK V3M
LOCAL MONITOR
LOCAL_L+
LOCAL_L-
LOCAL_R-
LOCAL_R+
L
R
L
R
T
R
CN53
JACK V3M
L89 FB-TH
L90 FB-TH
TB_OUT
TALKBACK
T
R
CN54
JACK V3M
T
R
CN56
JACK V3M
T
R
CN58
JACK V3M
T
R
CN60
JACK V3M
T
R
CN55
JACK V5M
T
R
CN57
JACK V5M
T
R
CN59
JACK V5M
T
R
CN61
JACK V5M
STEREO 1
L/MON
R
L/MON
STEREO 2
RR
STEREO 4
L/MON
R
STEREO 3
L/MON
ST1_L-
ST1_L+
ST1_R+
ST1_R-
ST2_R-
ST2_R+
ST2_L+
ST2_L-
ST1_L-
ST1_L+
ST1_R+
ST1_R-
ST2_R-
ST2_R+
ST2_L+
ST2_L-
ST3_L-
ST3_L+
ST3_R+
ST3_R-
ST4_R-
ST4_R+
ST4_L+
ST4_L-
ST3_L-
ST3_L+
ST3_R+
ST3_R-
ST4_R-
ST4_R+
ST4_L+
ST4_L-
SL1
SLOT 18.0MM
SL2
SLOT 18.0MM
A SRT 07-06-01
AI1
HOLE-AI
AI2
HOLE-AI
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
CN62
TRANSITION 5X2
1
2
3
4
5
6
7
8
9
10
11
12
CN64
FLEX SKT 12 WAY VERT
1
2
3
4
5
6
7
8
9
10
11
12
CN65
FLEX SKT 12 WAY VERT
D10
1 DWD 14-01-02

ALLEN & HEATH ML3000 Specifications

General

Type	Analog Mixing Console
Faders	100mm
Group Buses	8
Main Outputs	2
Signal to Noise Ratio	> 90 dB
Output Impedance	75 Ω
EQ	4-band EQ with 2 sweepable mids
Frequency Response	20 Hz to 20 kHz
Input Impedance	10 kΩ
