ALLEN & HEATH ML3000 Service Manual

AP4721 ML3000-SLV2 Fitting Notes 3
Fig.4
Heatsink
Rear Extrusion
CN2
AL4684

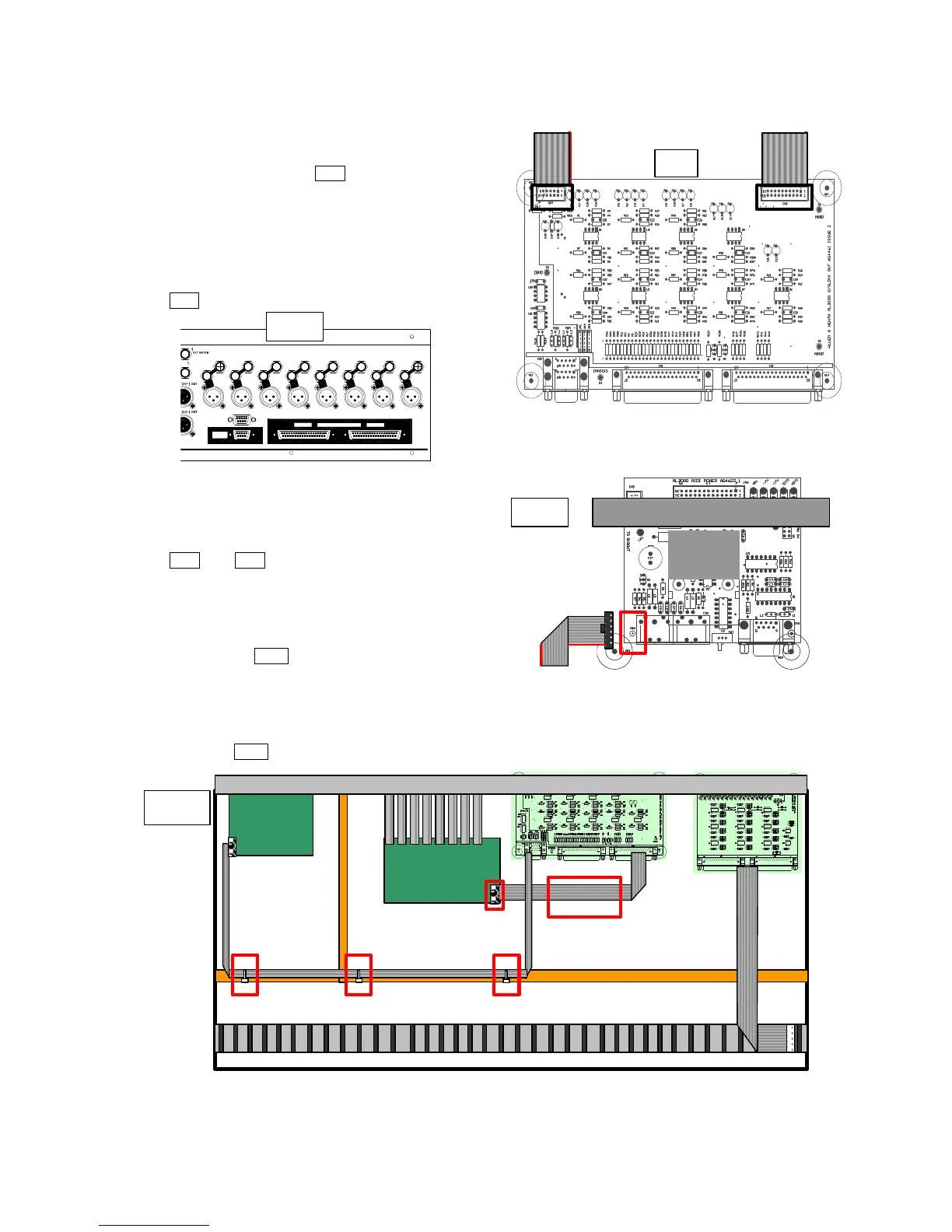

Step 4: Fit the two IDC harnesses to the SYS-
LINK OUT card. 10way AL4684 to CN4 and
20way AL4685 to CN5 Fig.2. Note that these
may have already been supplied fitted.
Step 5: Fit the SYS-LINK OUT card into the
console using the 8 D-type fixing nuts (supplied
fitted to the assembly). Use a 5mm nut spinner
Fig.3.
Step 6: Fit the free end of 10way AL4684
harness to CN2 on the Midi-Power circuit card
Fig.4 (see Fig.5 for power card location).
Step 7: Secure the 10way harness AL4684
along the main earth copper strip using 3 cable
ties (AK0151) Fig. 5
Step 8: Fit the free end of 20way harness
AL4685 to CN10 on the master distribution PCB
assembly Fig. 5.
AL4685
AL4684
Fig.2
CN4
CN5
INPUTS
INSERT
FADER
DIRECT OUT
INPUT
DIRECT OUT
INSERT
INPUTINPUT
INSERT INSERT
DIRECT OUT
SYS-LINK ( option )
OUTPUTAUDIO OUTPUT ( to master )OUTPUT A B
DIRECT OUT
INPUT
INSERT
DIRECT OUT
INPUTINPUT
INSERT INSERT
DIRECT OUT DIRECT OUT
INPUT
INSERT
INPUT
DIRECT OUT
INSERT
SYS-LINK LOGIC
SLAVE
MASTER
( from slave )
( to master )
Fig.3
Master
distribution
PCB
Midi-
power
PCB
AL4685
Fig.5
CN10
CN2
CN5
CN4
CN3
