ALLEN & HEATH ML3000 - Audio Connector Types and Wiring

14 ML3000 Service Manual

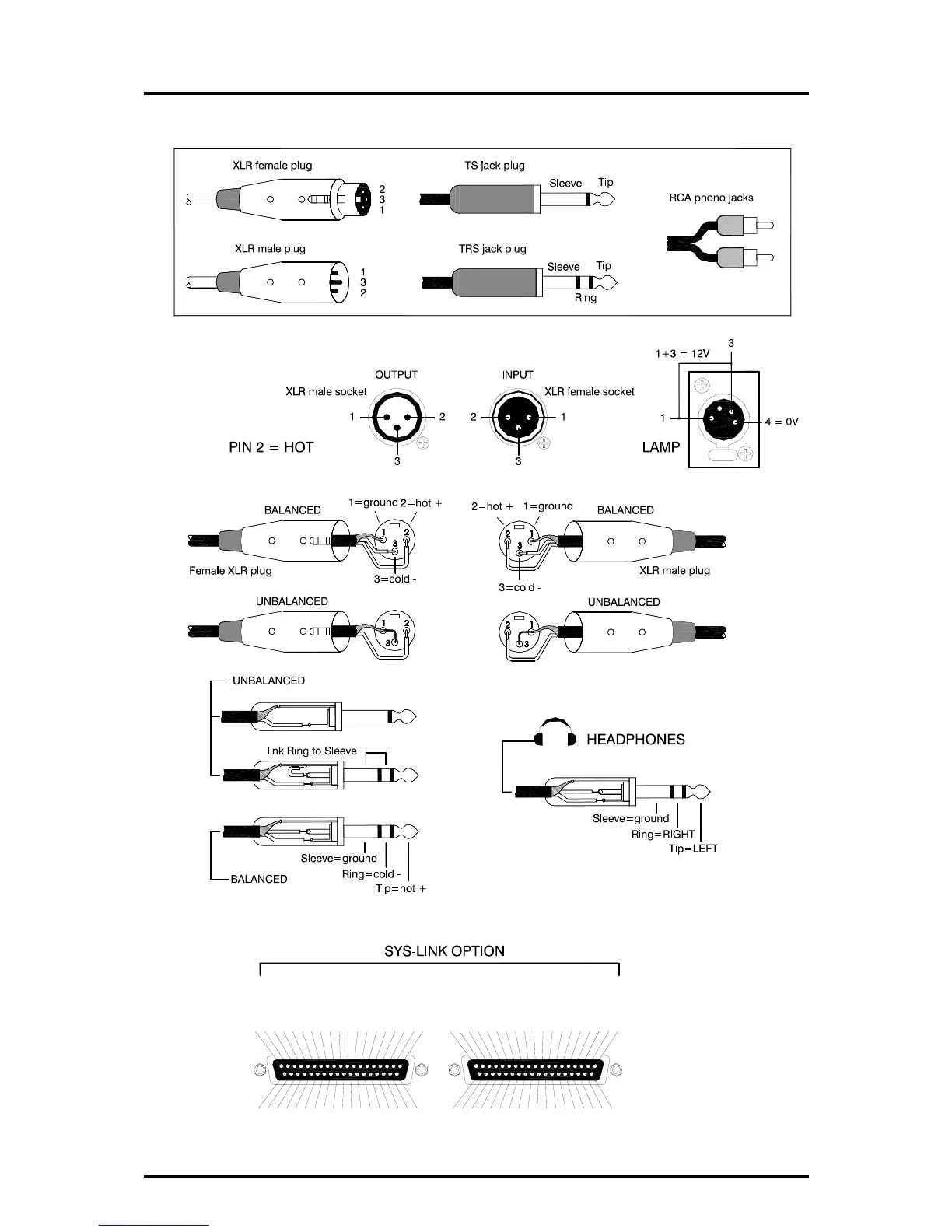

Audio Connector Types and Wiring
SYS-LINK II
BA
13 GRP 4+ 12 AUX 1+ 11 AUX 2+ 10 AUX 3+ 9 AUX 4+ 8 AUX 5+ 7 AUX 6+ 6 PFL+ 5 4 nc 3 PFL DC 2 AFL DC 1 0V (PAFL)
GRP 4- 32
AUX 1- 31
AUX 2- 30
AUX 3- 29
AUX 4- 28
AUX 5- 27
AUX 6- 26
PFL- 25
24
nc 23
nc 22
nc 21
nc 20
14 GRP 3+ 15 GRP 2+ 16 GRP 1+ 17 R+ 18 L+ 19 0V (CHS)
GRP 3- 33 GRP 2- 34 GRP 1- 35
R- 36
L- 37
13 12 AUX 7+ 11 AUX 8+ 10 9 8 nc 7 nc 6 nc 5 nc
32
AUX 7- 31
AUX 8- 30
29
28
27
26
25
24
14 15 16 17 AFL L+ 18 C+ 19 0V (CHS)
33 34
35
AFL L- 36
C- 37
nc 23 nc 22 nc 21 nc 20
4 nc 3 nc 2 nc 1 nc
