INPUT CHANNELS 1 - 4 continued
MIDI Control
• CUE switches send MIDI NOTE ON/OFF messages to the rear panel MIDI OUT port, and to USB 1 and USB
2 ports when the corresponding MIDI 1/ 2 switch is active.
• CUE switches can also be remotely controlled by MIDI output from USB 1 and USB 2.
• CH1 - 4 faders send MIDI CC messages to the rear panel MIDI OUT port, and to USB 1 and USB 2 ports
when the corresponding MIDI 1/ 2 switch is active. See p.28 for details

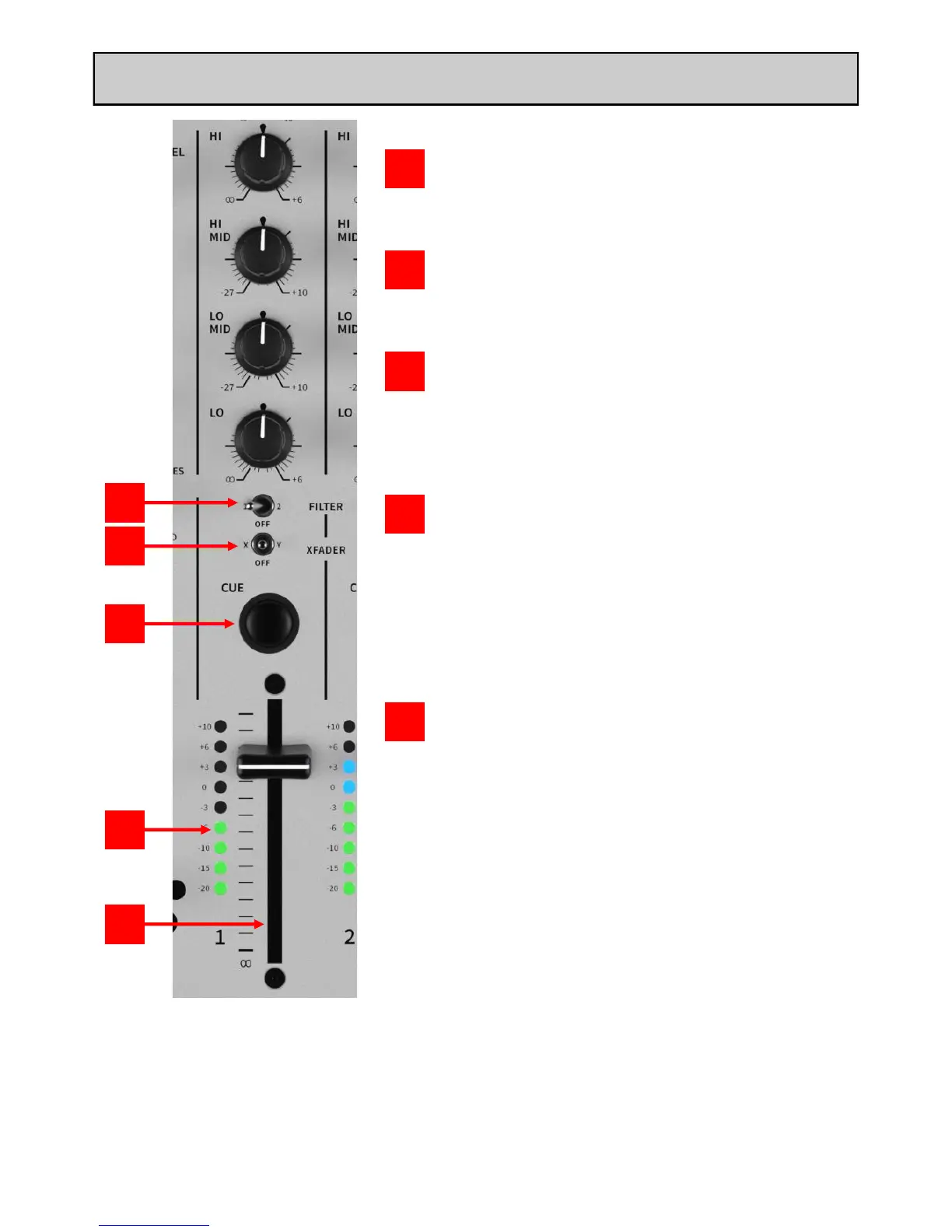

Channel FILTER Assign Switches
Switch to route post-GAIN / post-EQ / post-FADER level
channel audio to FILTER 1 (left) or FILTER 2 (right), or direct
to the LR MIX bus when OFF (centre).
5
XFADER Assign Switches
Switch to route post-GAIN / post-EQ / post-FADER level
channel audio to X (left) or Y (right), side of the XFADER,
or direct to the LR MIX bus when OFF (centre).
6
Channel CUE Switch
Press to listen to the channel audio levels from MONITOR
headphones outputs and to view pre-LR MIX levels on the
main LR MIX meters. Switches illuminate RED when active.
Default switch setting is AUTO-CUE. Refer to p.9 for details.
CUE switches are also enabled for MIDI control. See below.
7
Channel Meter
Displays the channel’s input source signal level.
Channel audio input is metered at post-GAIN / post-EQ and
pre-FADER level, to display the affect of adjusting EQ on
input levels before routing audio to the LR MIX.
Channel GAIN control should be set so the meter averages
around 0 with loudest peaks around +6.
If the +10 LED is illuminated continuously, turn the channel
GAIN, or EQ controls down.
8
Channel Fader
XONE:96 features new custom-designed, user replaceable,
60mm stereo linear VCA channel faders to adjust channel
audio levels from fully off (∞) to fully on (unity). Perfectly
balanced for smooth performance and precise control.
CH1 - 4 faders are also enabled for MIDI control. See below.
9
5
6
7
8
9
