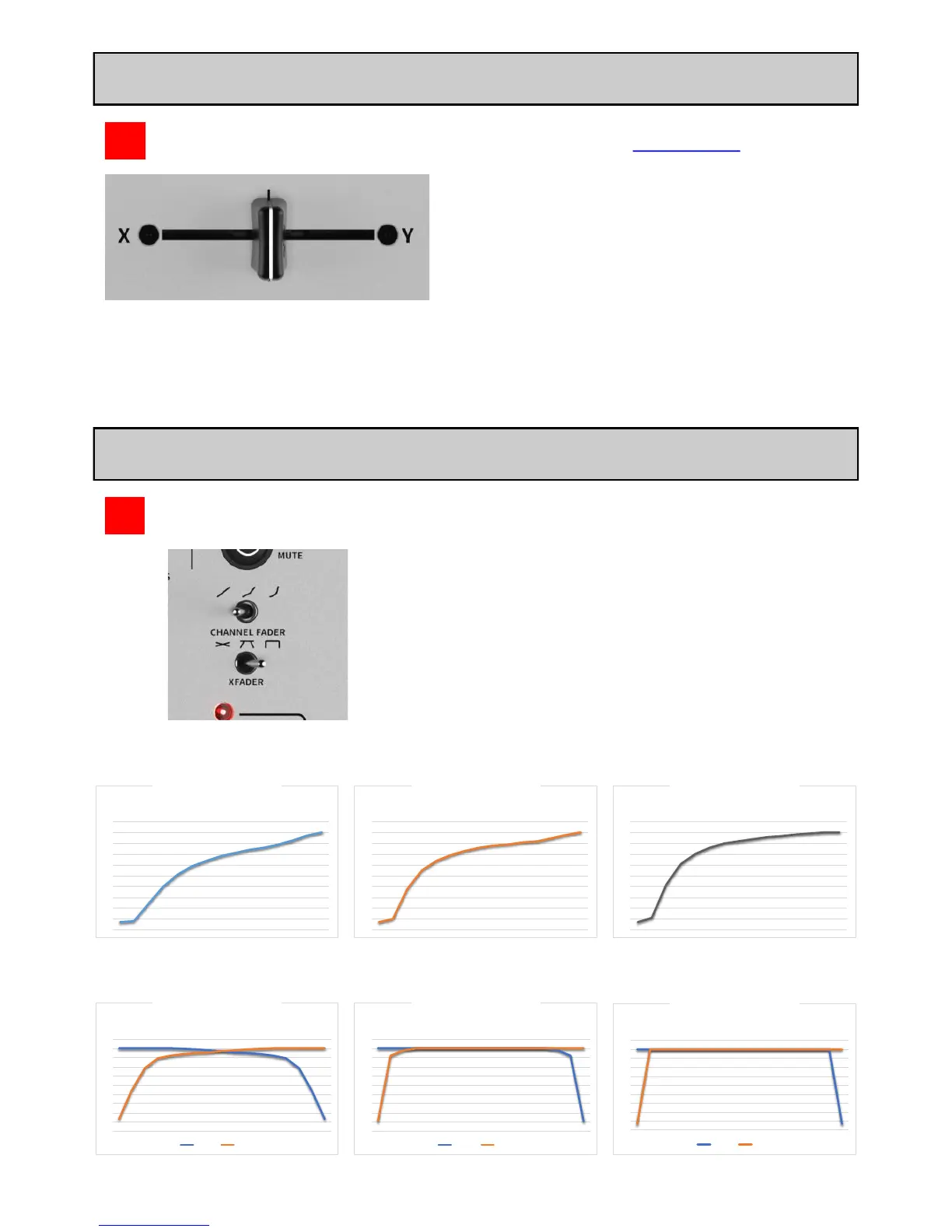

X FADER
MIDI Control
• The X FADER also sends MIDI CC messages to the rear panel MIDI OUT port, and to USB 1 and USB 2
ports when the corresponding MIDI 1/ 2 switch is active. See p.28 for details.
The XFADER is a VCA (voltage controlled amplifier) that
also affects the level of signals routed to the Filters.
Use to fade between audio from CH 1 - 4 assigned to the
X (Left), or Y (Right) side of the XFADER, typically to fade
smoothly into a new music track, to creatively layer sounds,
or for scratch and cut mixing.
10
In the cross-fader position, XONE:96 implements the industry-favourite mini innoFADER as standard.
FADER CURVE SWITCHES, XFADER / CH 1 - 4
CHANNEL FADER
Selects a global fader response for Stereo Input Channels 1- 4.
Switch between constant power, dipped, or fast-cut to suit scratch
and cut mixing styles.
XFADER
Selects the response curve for the cross-fader.
Switch between constant power, transition, or fast-cut to suit scratch
or cut mixing.
The images below illustrate the curves for each setting
19
Fader Curve Switches
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
X Y
fast-cut
assign: X assign: Y
fast-cut
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
X Y
transition
asssign: X assign: Y
transion
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
X Y
constant power
assign: X assign: Y
constant power
XFADER
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
∞ [unity] 0
curve 3
fast-cut
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
∞ [unity] 0
curve 2
dipped
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
∞ [unity] 0
curve 1
constant power
CHANNEL FADER
