ALLEN & HEATH XONE:96 User Manual

ALLEN&HEATH 10 AP11645_1_XONE:96 User Guide

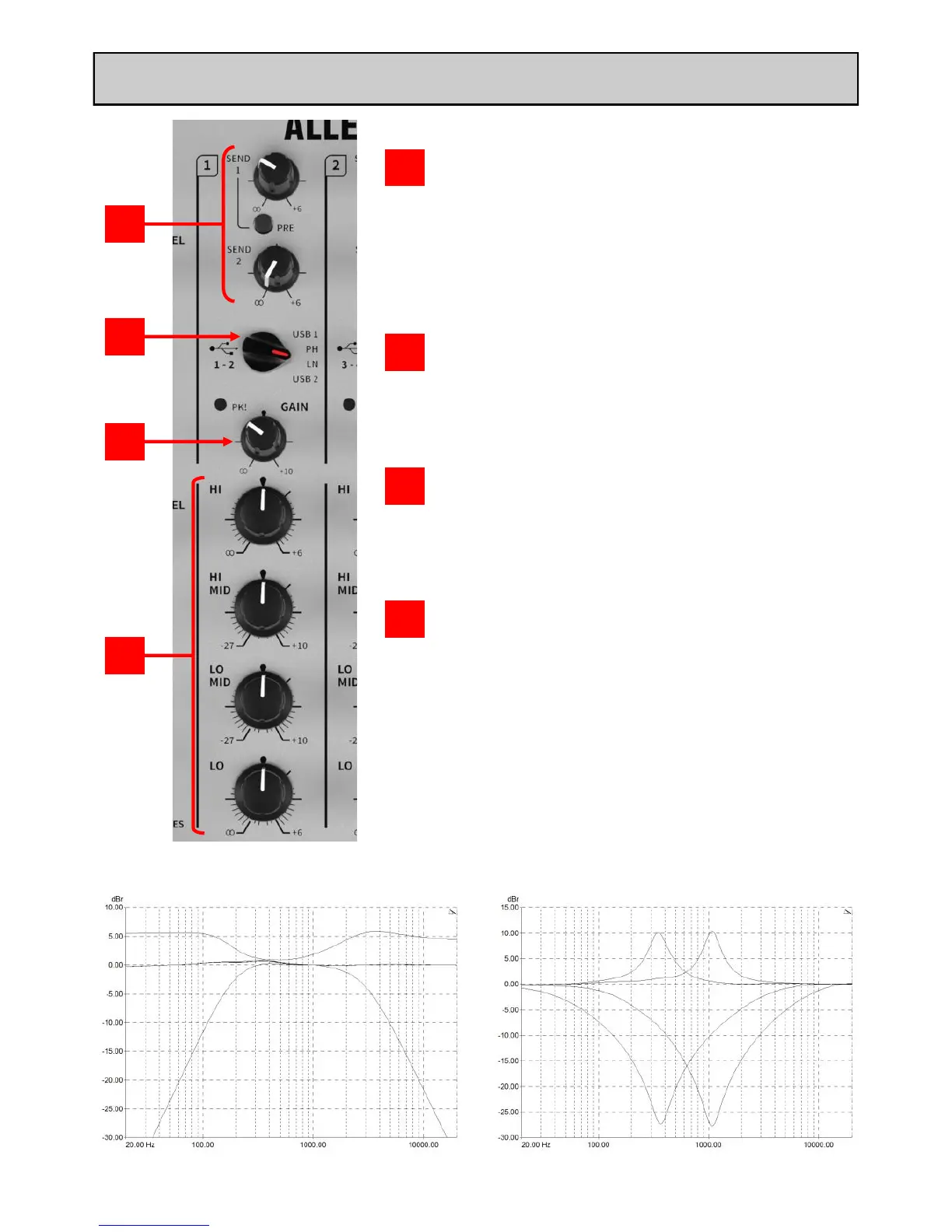

INPUT CHANNELS 1 - 4: USB 1/PHONO/LINE/USB 2
4
1
3
2
Channel Input Select Switch
Switch CH A and CH B inputs between USB1, MIC, RTN, or
USB 2 sources.
Switches also send MIDI NOTE ON/OFF messages to USB1,
USB 2 and MIDI OUT ports. See p.28 for details.
2
SEND 1 & SEND 2 Controls
Control the levels of channel audio sent to external effects
hardware connected via rear panel SND1 and SND2 outputs.
SEND 1 is switchable pre/post-FADER and also routes audio
to internal soundcard inputs USB 9/10
SEND 2 is fixed post-FADER, with switched option for routing
audio to internal soundcard inputs USB 11/12. See p.23.
1
Channel GAIN Control
Adjusts the Channel input sensitivity to compensate for
different audio signal source levels. -∞/+10dB.
If a PK! LED illuminates, turn the corresponding channel
GAIN level down.
3
Channel Equalizer
Stereo Channels 1 - 4 are equipped with a refined
asymmetric XONE 4-BAND EQ, providing +6dB boost and
full attenuation (‘kill’) for HI and LO frequencies and with
powerful +10dB boost/-27dB cut for HI MID and LO MID
frequencies.
EQ cut-off frequencies are set at:
HI 3 kHz (High Frequency, treble)
HI MID 1.1 kHz (Upper Midrange Frequency)
LO MID 350 Hz (Lower Midrange Frequency)
LO 180 Hz (Low Frequency, bass)
4
LO / HI ∞/ centre / +6 LO MID / HI MID -27 / centre / +10

ALLEN & HEATH XONE:96 Specifications

General

Channels quantity	8 channels
Digital sound processing	- bit
Equalizer bands quantity	4
DJ mixer	-
Product color	Black, Grey
USB connector type	USB Type-B
Master (XLR) out	1
Headphone connectivity	3.5 mm/6.35 mm
Number of microphone inputs	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	45 W
Built-in display	No

Weight and Dimensions

Depth	410 mm
Width	336 mm
Height	109 mm
Weight	7000 g
