ALLEN & HEATH XONE:96 User Manual

ALLEN&HEATH 9 AP11645_1_XONE:96 User Guide

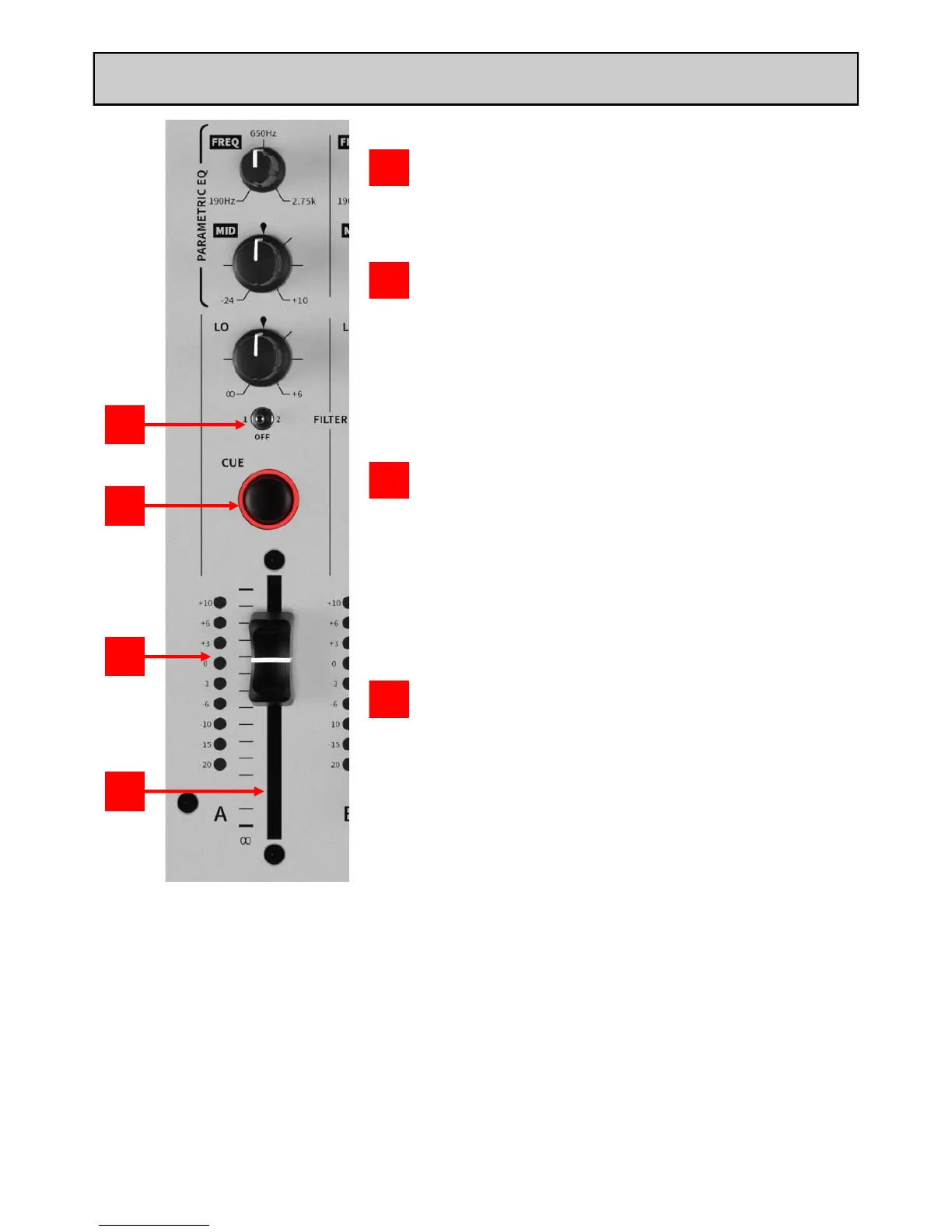

INPUT CHANNELS A - B continued
LATCHING-CUE Mode enables CUE switches to remain active when selecting another channel CUE. Any active
CUE is deactivated by pressing the switch again. The option can be enabled, on-the-fly, as follows:
• Press and hold any Filter Type Select switch (HPF, BPF, LPF) on both FILTER 1 and FILTER 2
simultaneously for 3s; MIDI 1 and MIDI 2 switches blink rapidly to indicate CUE setup mode.
• Press any channel CUE switch; MIDI 1 and MIDI 2 switches stop blinking and LATCHING-CUE is enabled
NOTE: The setup mode times out automatically after 3s. Active CUE is deactivated by pressing the switch again.
• Repeat the process to re-enable AUTO-CUE. The current setting is stored when the mixer is powered OFF.
MIDI Control
• CUE switches send MIDI NOTE ON/OFF messages to the rear panel MIDI OUT port, and to USB 1 and USB
2 ports when the corresponding MIDI 1/ 2 switch is active.
• CUE switches can also be remotely controlled by MIDI output from USB 1 and USB 2. See p.28 for details.
5
7
8
9
Channel Fader
XONE:96 features new custom-designed 60mm stereo linear
VCA channel faders to adjust channel audio levels from fully
off (∞) to fully on (unity).
CH A and CH B faders are fully analogue, premium faders
offering smooth performance and precise control. Perfectly
balanced and built to last.
9
Channel Meter
Displays the channel’s input source signal level.
Channel audio input is metered at post-GAIN / post-EQ and
pre-FADER level, to display the affect of adjusting EQ on
input levels before routing audio to the LR MIX.
Channel GAIN control should be set so the meter averages
around 0 with loudest peaks around +6.
If the +10 LED is illuminated continuously, turn the channel
GAIN, or EQ controls down.
8
Channel FILTER Assign Switches
Switch to route post-GAIN / post-EQ / post-FADER level
channel audio to FILTER 1 (left) or FILTER 2 (right), or direct
to the LR MIX bus when OFF (centre).
5
Channel CUE Switch
Press to listen to the channel audio levels from MONITOR
headphones outputs and to view pre-LR MIX levels on the
main LR MIX meters. Switches illuminate RED when active.
Default switch setting is AUTO-CUE; switches remain on until
the switch is pressed again or another CUE is selected.
See below for details to enable the LATCHING-CUE Mode.
CUE is also enabled for MIDI control. See below.
7

ALLEN & HEATH XONE:96 Specifications

General

Channels quantity	8 channels
Digital sound processing	- bit
Equalizer bands quantity	4
DJ mixer	-
Product color	Black, Grey
USB connector type	USB Type-B
Master (XLR) out	1
Headphone connectivity	3.5 mm/6.35 mm
Number of microphone inputs	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	45 W
Built-in display	No

Weight and Dimensions

Depth	410 mm
Width	336 mm
Height	109 mm
Weight	7000 g
