ALLEN&HEATH 38 AP11645_1_XONE:96 User Guide

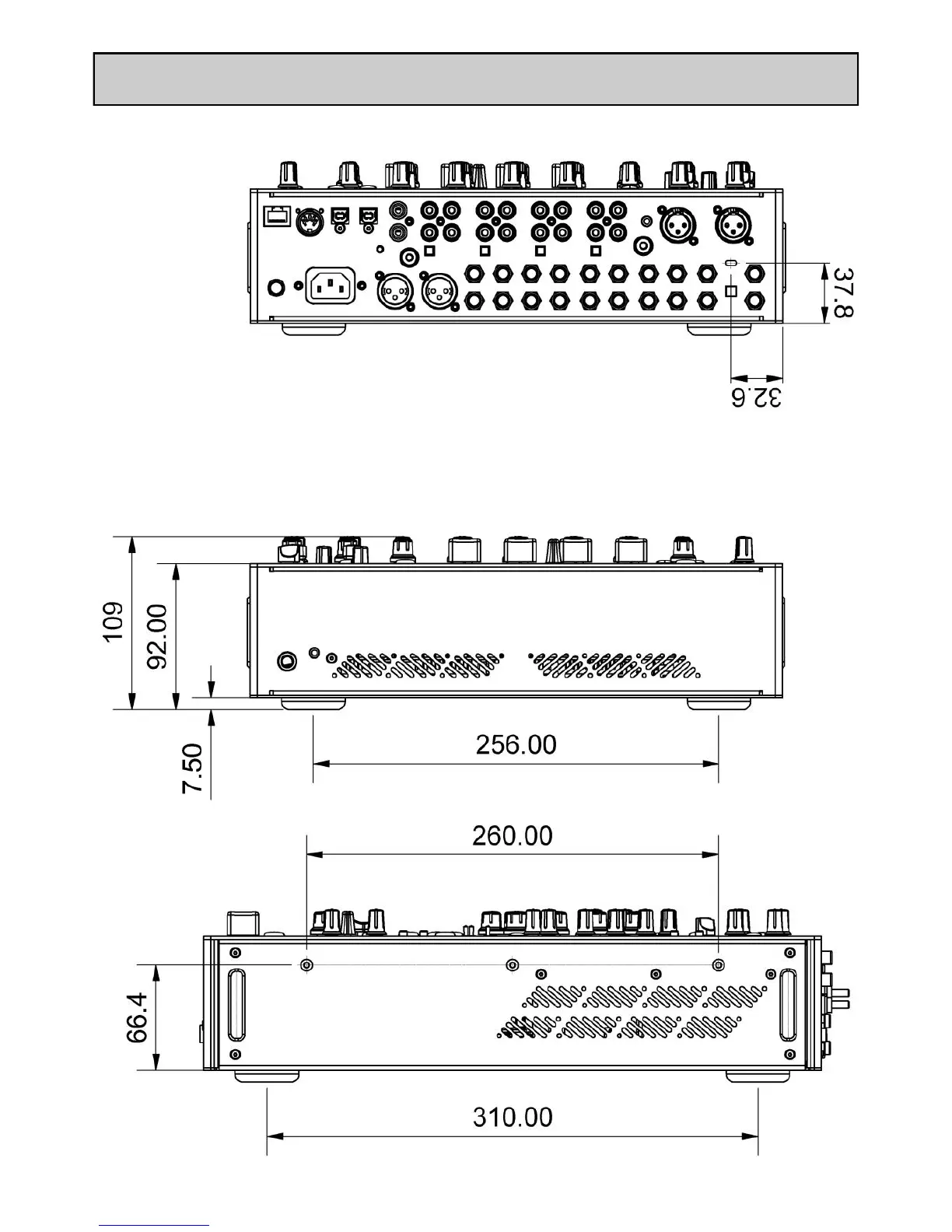

PANEL DRAWINGS continued
Rear Panel View
IMPORTANT Warning ! Do NOT cover louvres on Front or Side Panels !
NOTE: XONE:96 is NOT compatible with standard Xone Series or other A&H Rack Ear kits. An optional XONE:96
kit is available, designed to allow permanent fixing of the mixer into a plinth, or custom rack system:
Order A&H part code: X.96-RKX
Front Panel View
Side View [Right]
