ALLEN&HEATH 14 AP10733_1_XONE:PX5 User Guide

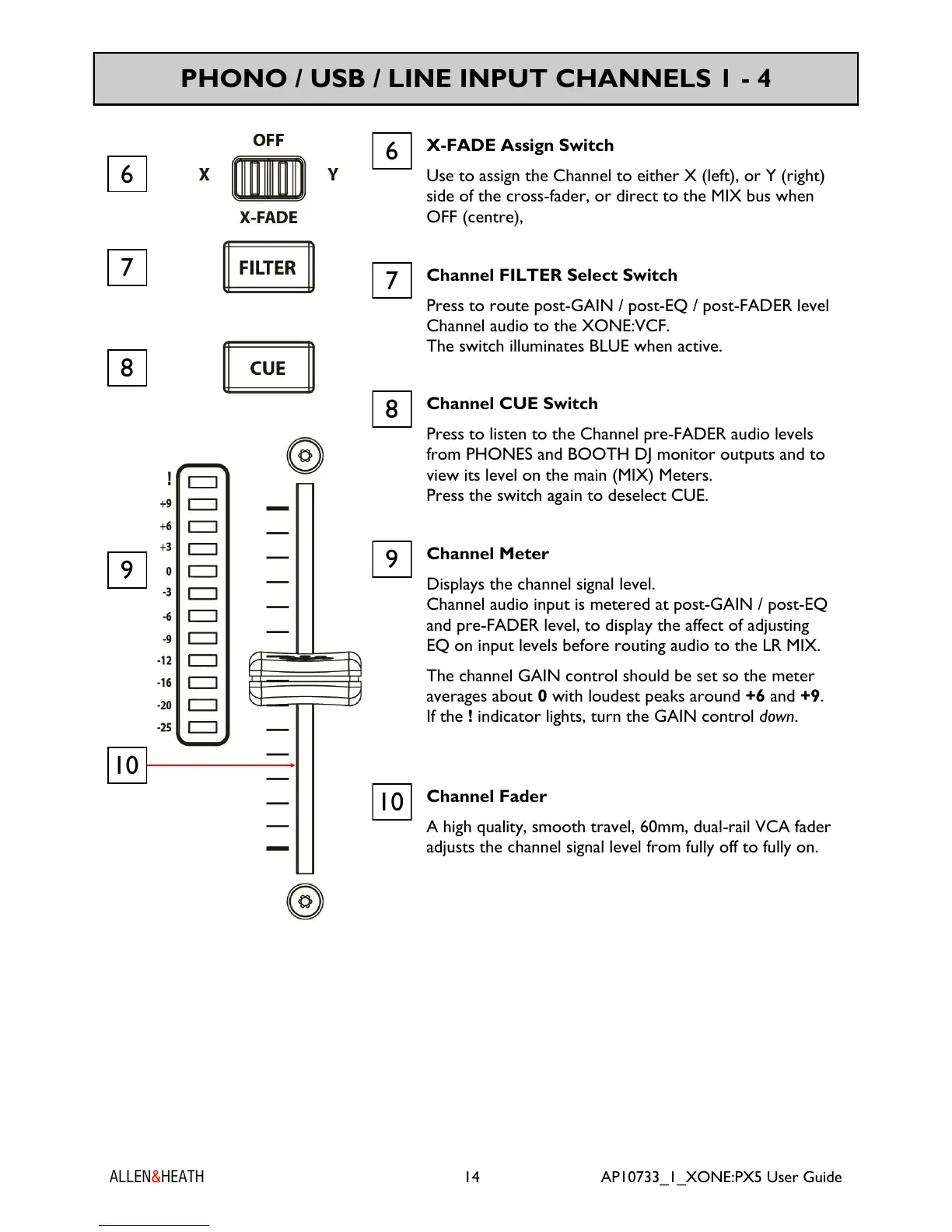

PHONO / USB / LINE INPUT CHANNELS 1 - 4
Channel Fader
A high quality, smooth travel, 60mm, dual-rail VCA fader
adjusts the channel signal level from fully off to fully on.
10
Channel Meter
Displays the channel signal level.
Channel audio input is metered at post-GAIN / post-EQ
and pre-FADER level, to display the affect of adjusting
EQ on input levels before routing audio to the LR MIX.
The channel GAIN control should be set so the meter
averages about 0 with loudest peaks around +6 and +9.
If the ! indicator lights, turn the GAIN control down.
9
Channel CUE Switch
Press to listen to the Channel pre-FADER audio levels
from PHONES and BOOTH DJ monitor outputs and to
view its level on the main (MIX) Meters.
Press the switch again to deselect CUE.
8
7
Channel FILTER Select Switch
Press to route post-GAIN / post-EQ / post-FADER level
Channel audio to the XONE:VCF.
The switch illuminates BLUE when active.
X-FADE Assign Switch
Use to assign the Channel to either X (left), or Y (right)
side of the cross-fader, or direct to the MIX bus when
OFF (centre),
6
6
7
8
9
10
