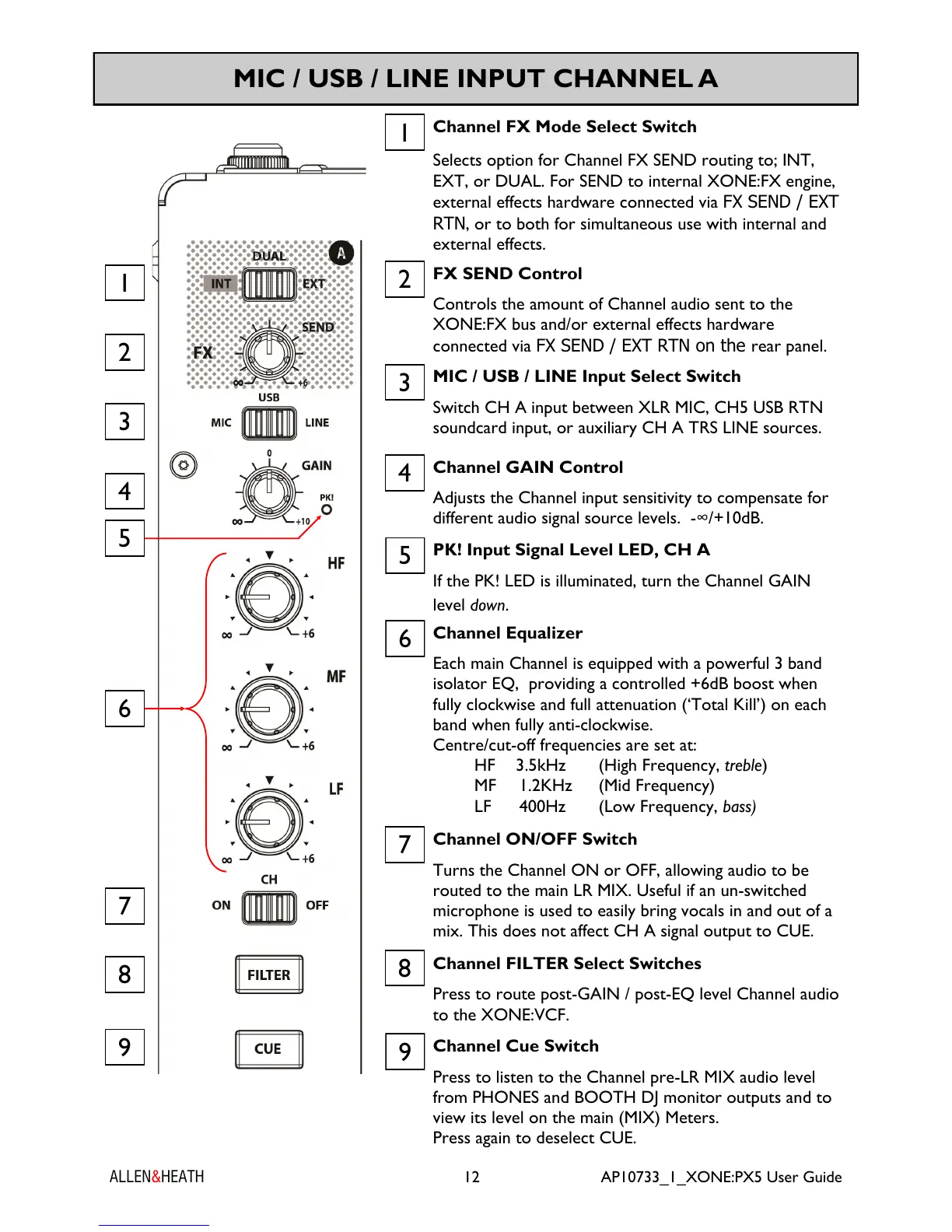

MIC / USB / LINE INPUT CHANNEL A
Channel Cue Switch
Press to listen to the Channel pre-LR MIX audio level
from PHONES and BOOTH DJ monitor outputs and to
view its level on the main (MIX) Meters.
Press again to deselect CUE.
9
Channel FILTER Select Switches
Press to route post-GAIN / post-EQ level Channel audio
to the XONE:VCF.
8
Channel ON/OFF Switch
Turns the Channel ON or OFF, allowing audio to be
routed to the main LR MIX. Useful if an un-switched
microphone is used to easily bring vocals in and out of a
mix. This does not affect CH A signal output to CUE.
7
FX SEND Control
Controls the amount of Channel audio sent to the
XONE:FX bus and/or external effects hardware
connected via FX SEND / EXT RTN on the rear panel.
2
Channel FX Mode Select Switch
Selects option for Channel FX SEND routing to; INT,
EXT, or DUAL. For SEND to internal XONE:FX engine,
external effects hardware connected via FX SEND / EXT
RTN, or to both for simultaneous use with internal and
external effects.
1
MIC / USB / LINE Input Select Switch
Switch CH A input between XLR MIC, CH5 USB RTN
soundcard input, or auxiliary CH A TRS LINE sources.
3
Channel GAIN Control
Adjusts the Channel input sensitivity to compensate for
different audio signal source levels. -∞/+10dB.
4
Channel Equalizer
Each main Channel is equipped with a powerful 3 band
isolator EQ, providing a controlled +6dB boost when
fully clockwise and full attenuation (‘Total Kill’) on each
band when fully anti-clockwise.
Centre/cut-off frequencies are set at:
HF 3.5kHz (High Frequency, treble)
MF 1.2KHz (Mid Frequency)
LF 400Hz (Low Frequency, bass)
6
5
PK! Input Signal Level LED, CH A
If the PK! LED is illuminated, turn the Channel GAIN
level down.
4
3
1
2
8
9
7
6
5
