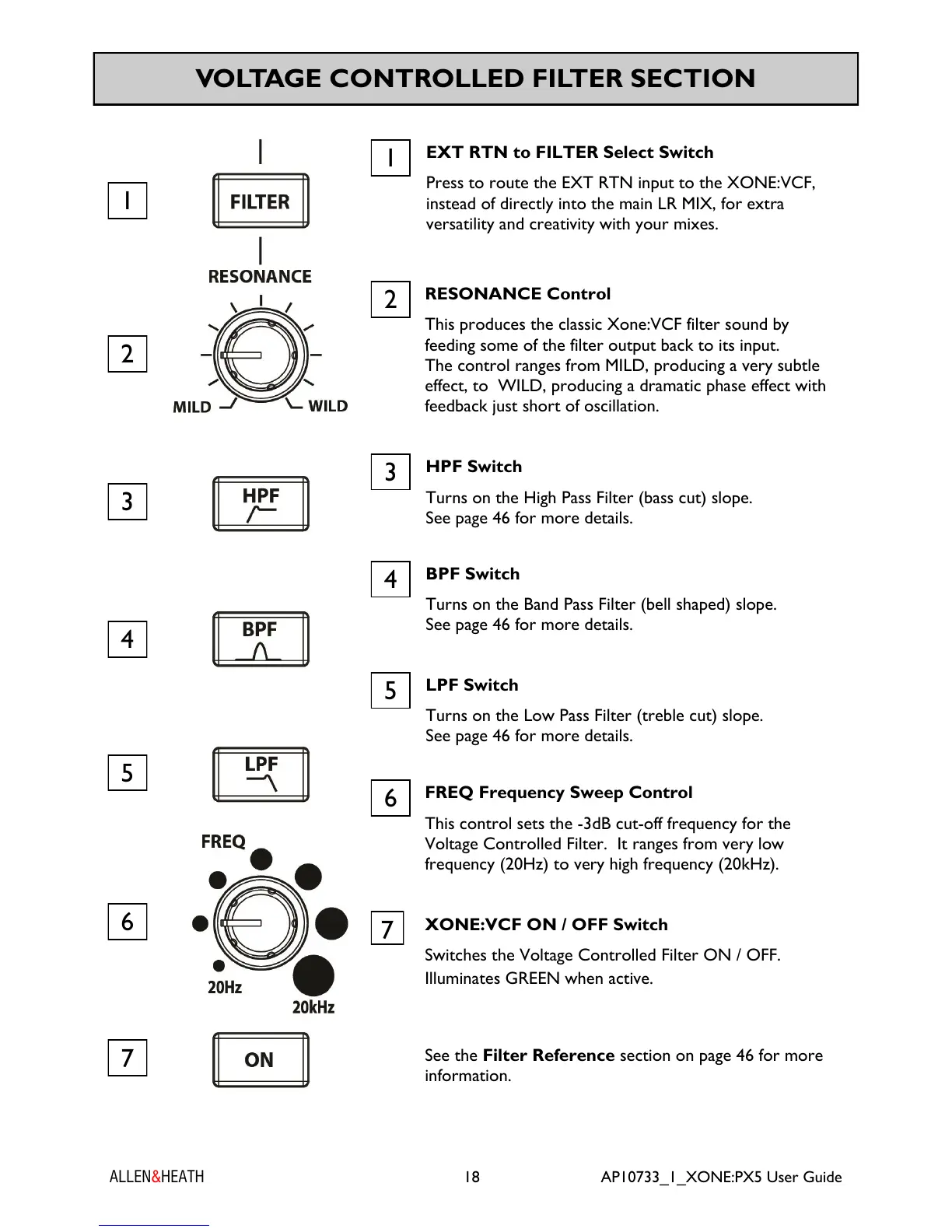

VOLTAGE CONTROLLED FILTER SECTION
1
2
5
3
4
6
7
See the Filter Reference section on page 46 for more
information.
LPF Switch
Turns on the Low Pass Filter (treble cut) slope.
See page 46 for more details.
5
BPF Switch
Turns on the Band Pass Filter (bell shaped) slope.
See page 46 for more details.
4
FREQ Frequency Sweep Control
This control sets the -3dB cut-off frequency for the
Voltage Controlled Filter. It ranges from very low
frequency (20Hz) to very high frequency (20kHz).
6
HPF Switch
Turns on the High Pass Filter (bass cut) slope.
See page 46 for more details.
3
EXT RTN to FILTER Select Switch
Press to route the EXT RTN input to the XONE:VCF,
instead of directly into the main LR MIX, for extra
versatility and creativity with your mixes.
1
7
XONE:VCF ON / OFF Switch
Switches the Voltage Controlled Filter ON / OFF.
Illuminates GREEN when active.
RESONANCE Control
This produces the classic Xone:VCF filter sound by
feeding some of the filter output back to its input.
The control ranges from MILD, producing a very subtle
effect, to WILD, producing a dramatic phase effect with
feedback just short of oscillation.
2
