ALLEN & HEATH Xone:PX5 - USB Soundcard Default Configuration; USB Soundcard Specification; DEFAULT USB AUDIO ROUTING

ALLEN&HEATH 28 AP10733_1_XONE:PX5 User Guide

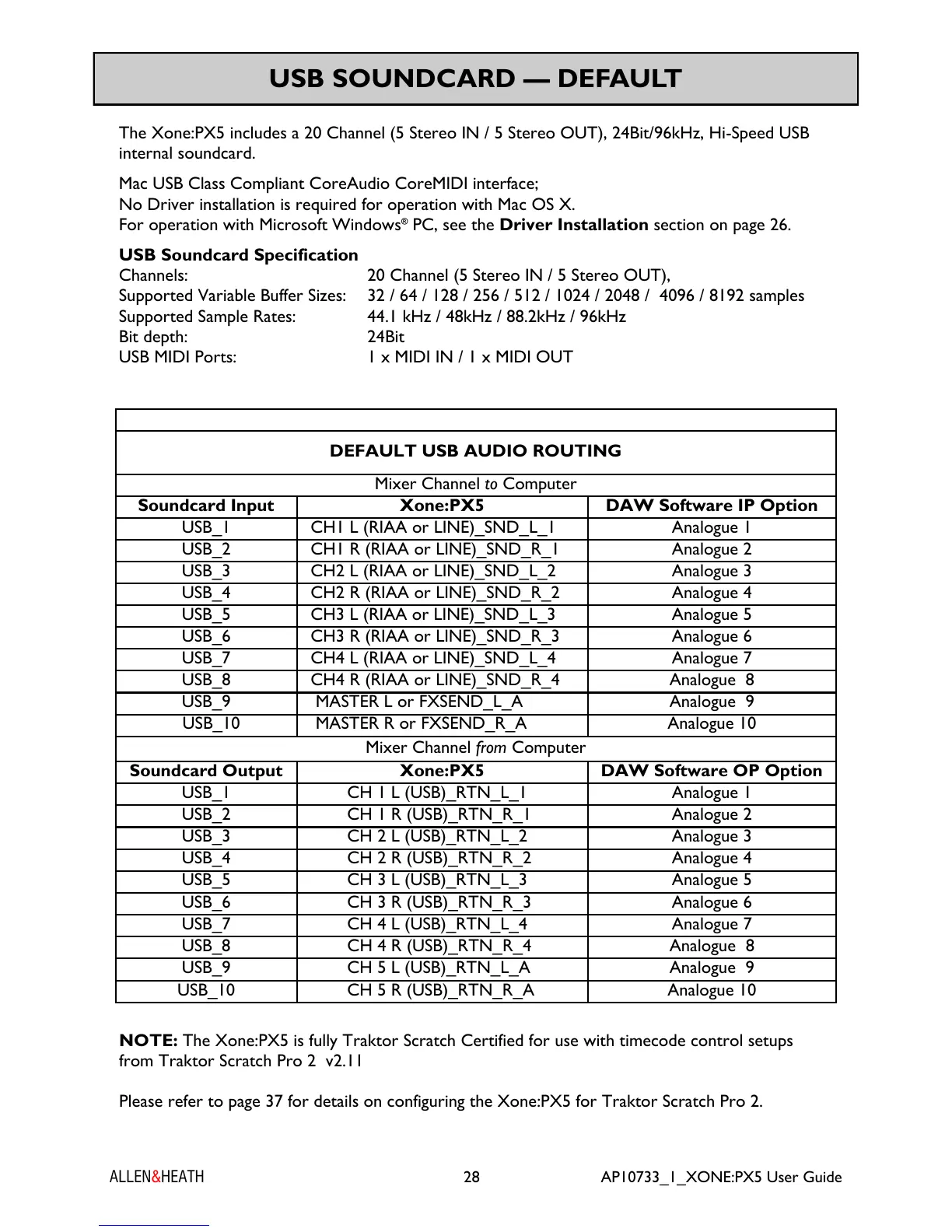

USB SOUNDCARD — DEFAULT
DEFAULT USB AUDIO ROUTING
Mixer Channel to Computer
Soundcard Input Xone:PX5 DAW Software IP Option
USB_1 CH1 L (RIAA or LINE)_SND_L_1 Analogue 1
USB_2 CH1 R (RIAA or LINE)_SND_R_1 Analogue 2
USB_3 CH2 L (RIAA or LINE)_SND_L_2 Analogue 3
USB_4 CH2 R (RIAA or LINE)_SND_R_2 Analogue 4
USB_5 CH3 L (RIAA or LINE)_SND_L_3 Analogue 5
USB_6 CH3 R (RIAA or LINE)_SND_R_3 Analogue 6
USB_7 CH4 L (RIAA or LINE)_SND_L_4 Analogue 7
USB_8 CH4 R (RIAA or LINE)_SND_R_4 Analogue 8
USB_9 MASTER L or FXSEND_L_A Analogue 9
USB_10 MASTER R or FXSEND_R_A Analogue 10
Mixer Channel from Computer
Soundcard Output Xone:PX5 DAW Software OP Option
USB_1 CH 1 L (USB)_RTN_L_1 Analogue 1
USB_2 CH 1 R (USB)_RTN_R_1 Analogue 2
USB_3 CH 2 L (USB)_RTN_L_2 Analogue 3
USB_4 CH 2 R (USB)_RTN_R_2 Analogue 4
USB_5 CH 3 L (USB)_RTN_L_3 Analogue 5
USB_6 CH 3 R (USB)_RTN_R_3 Analogue 6
USB_7 CH 4 L (USB)_RTN_L_4 Analogue 7
USB_8 CH 4 R (USB)_RTN_R_4 Analogue 8
USB_9 CH 5 L (USB)_RTN_L_A Analogue 9
USB_10 CH 5 R (USB)_RTN_R_A Analogue 10
The Xone:PX5 includes a 20 Channel (5 Stereo IN / 5 Stereo OUT), 24Bit/96kHz, Hi-Speed USB
internal soundcard.
Mac USB Class Compliant CoreAudio CoreMIDI interface;
No Driver installation is required for operation with Mac OS X.
For operation with Microsoft Windows
®
PC, see the Driver Installation section on page 26.
USB Soundcard Specification
Channels: 20 Channel (5 Stereo IN / 5 Stereo OUT),
Supported Variable Buffer Sizes: 32 / 64 / 128 / 256 / 512 / 1024 / 2048 / 4096 / 8192 samples
Supported Sample Rates: 44.1 kHz / 48kHz / 88.2kHz / 96kHz
Bit depth: 24Bit
USB MIDI Ports: 1 x MIDI IN / 1 x MIDI OUT
NOTE: The Xone:PX5 is fully Traktor Scratch Certified for use with timecode control setups
from Traktor Scratch Pro 2 v2.11
Please refer to page 37 for details on configuring the Xone:PX5 for Traktor Scratch Pro 2.
