ALLEN & HEATH Xone:PX5 - Phono; Usb; Line Input Channels

ALLEN&HEATH 13 AP10733_1_XONE:PX5 User Guide

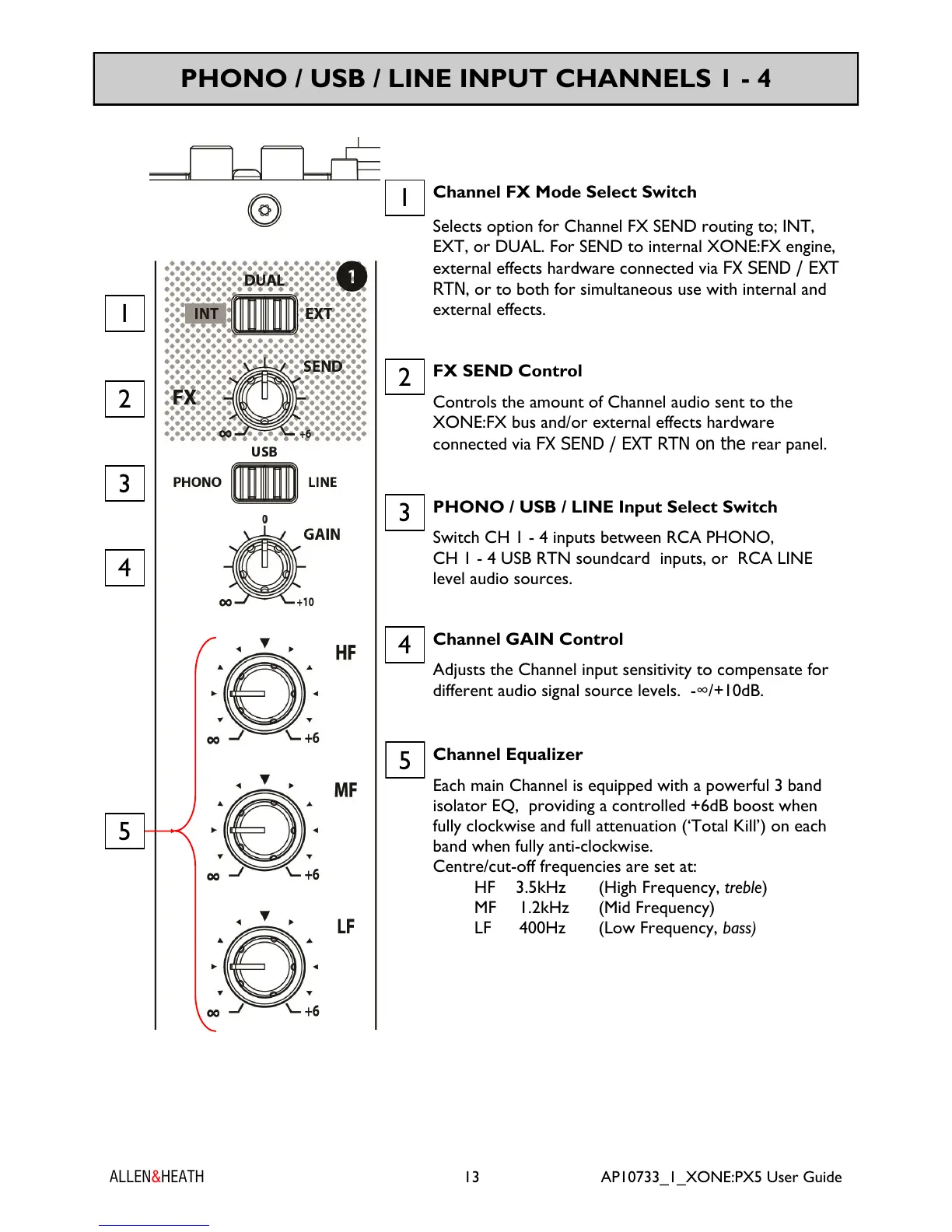

PHONO / USB / LINE INPUT CHANNELS 1 - 4
FX SEND Control
Controls the amount of Channel audio sent to the
XONE:FX bus and/or external effects hardware
connected via FX SEND / EXT RTN on the rear panel.
2
Channel FX Mode Select Switch
Selects option for Channel FX SEND routing to; INT,
EXT, or DUAL. For SEND to internal XONE:FX engine,
external effects hardware connected via FX SEND / EXT
RTN, or to both for simultaneous use with internal and
external effects.
1
PHONO / USB / LINE Input Select Switch
Switch CH 1 - 4 inputs between RCA PHONO,
CH 1 - 4 USB RTN soundcard inputs, or RCA LINE
level audio sources.
3
Channel GAIN Control
Adjusts the Channel input sensitivity to compensate for
different audio signal source levels. -∞/+10dB.
4
Channel Equalizer
Each main Channel is equipped with a powerful 3 band
isolator EQ, providing a controlled +6dB boost when
fully clockwise and full attenuation (‘Total Kill’) on each
band when fully anti-clockwise.
Centre/cut-off frequencies are set at:
HF 3.5kHz (High Frequency, treble)
MF 1.2kHz (Mid Frequency)
LF 400Hz (Low Frequency, bass)
5
4
3
1
2
5
