ALLEN&HEATH 11 AP10733_1_XONE:PX5 User Guide
USB 9-10 Send Select Switch
Set CH9-10 USB SND to MST or FX to route LR MIX, or FX SEND output via USB.
For pre-MASTER level stereo LR MIX recording to computer, or using FX SEND for software
effects plug-ins.
12
RECORD Outputs
Unbalanced (RCA).
Pre-MASTER level, LR MIX output for connection to external hardware recording devices.
14
AC Mains Input
Connect (supplied) IEC cable with moulded mains plug compatible to local AC mains supply.
Turn AC supply to the mixer ON / OFF
Check the correct IEC ‘mains’ lead with moulded plug has been supplied with your mixer.
The internal power supply accepts mains voltages within the range 100-240V without changing
any fuses or settings.
Ensure the IEC mains plug is pressed fully into the rear panel socket before switching ON.
NOTE: It is standard practice to turn connected power amplifiers, or active speakers, down or
OFF before switching mains power to the mixer ON or OFF. This prevents any potential
damage to speaker systems due to switch-on transients.
15
USB Soundcard
USB (Type A).
20 Channel (5 Stereo IN / 5 Stereo OUT), 24Bit/96kHz, Hi-Speed USB internal soundcard.
Mac OS X CoreAudio/CoreMIDI class compliant. ASIO
®
driver support for Windows
®
PC.
17
MIDI SYNC / OUT
5pin DIN.
MIDI Clock and MIDI Tx (transmit) signal output for syncing to external MIDI hardware.
16
K-Slot
Security slot to connect locking, Kensington
®
type, anti-theft cable.
13

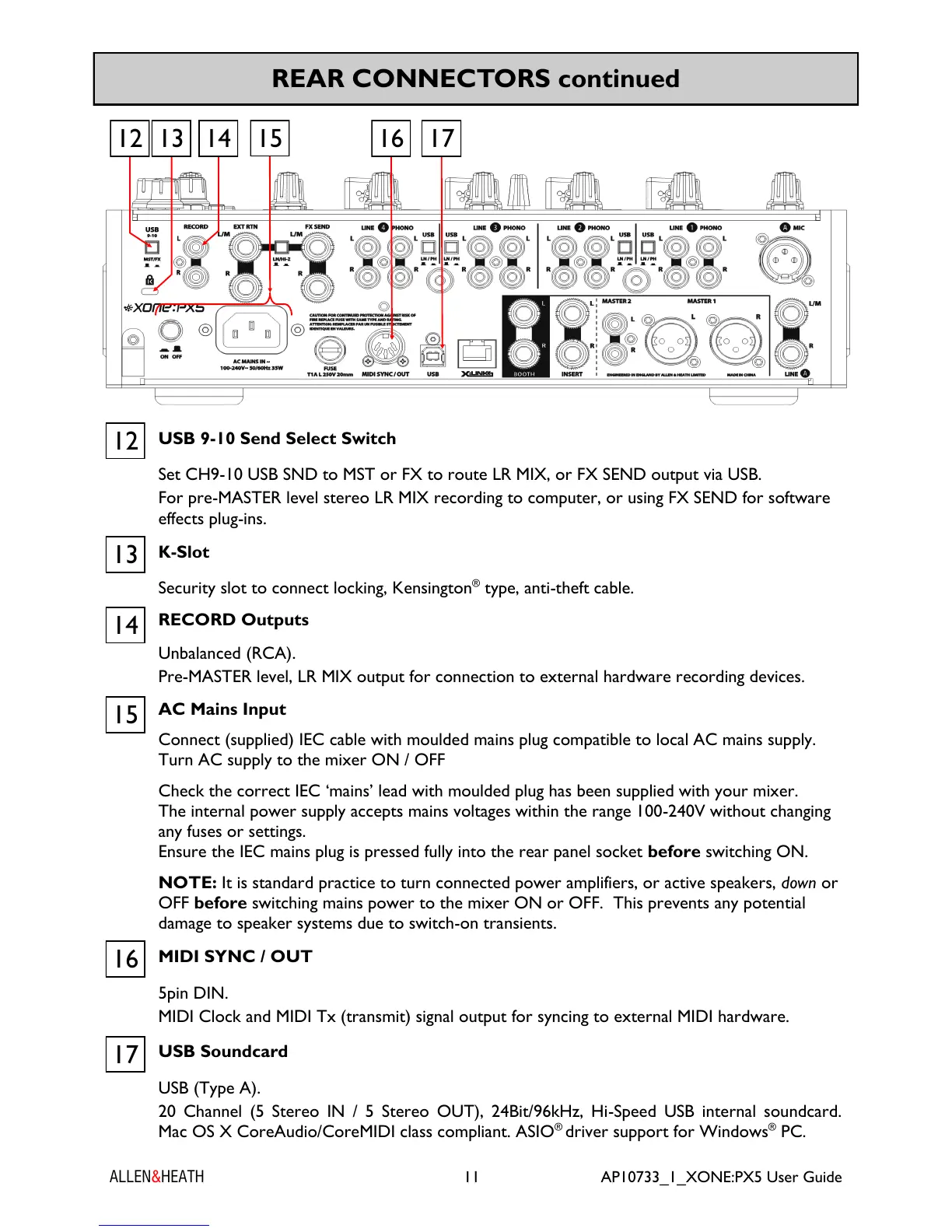

REAR CONNECTORS continued
16 13 12 14
15
17
