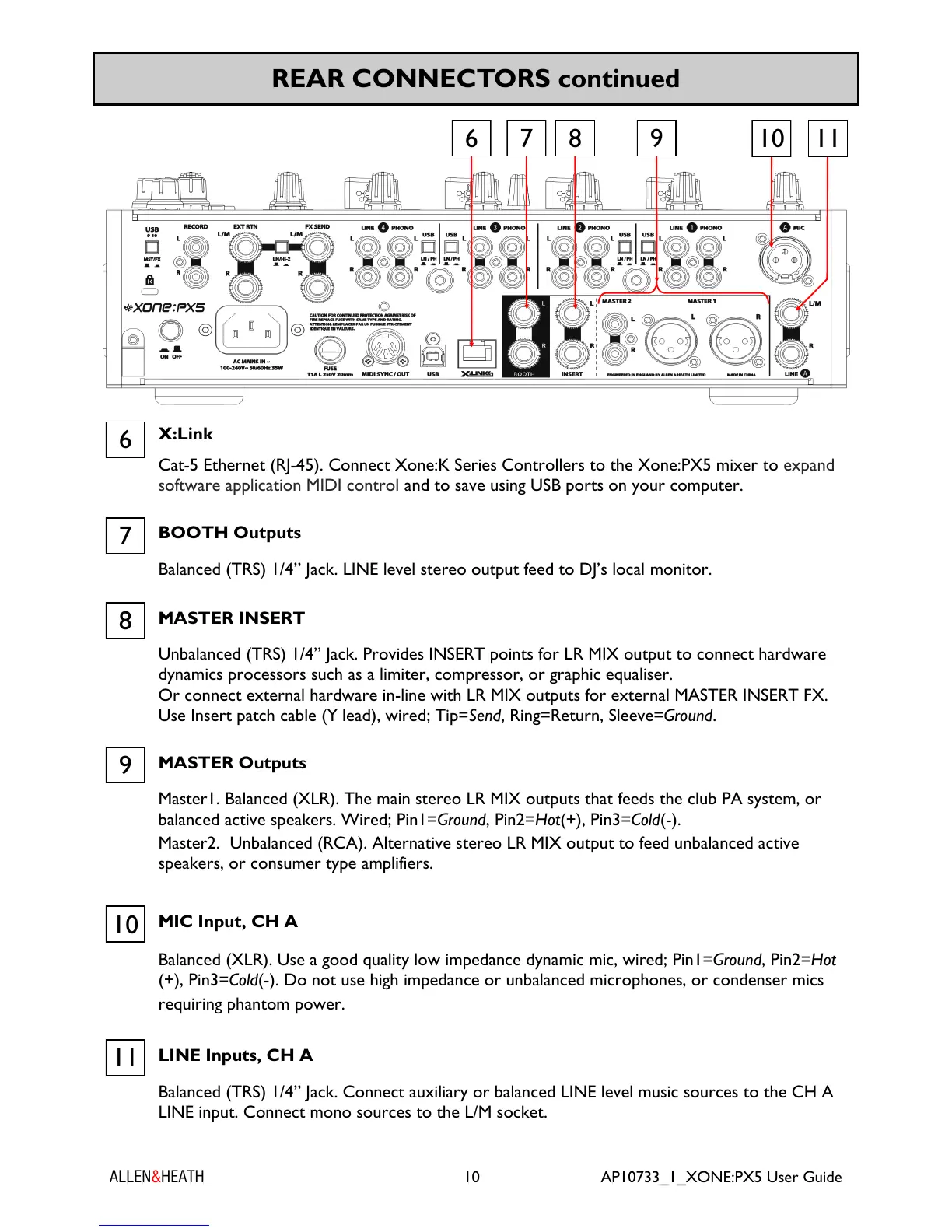

REAR CONNECTORS continued
MIC Input, CH A
Balanced (XLR). Use a good quality low impedance dynamic mic, wired; Pin1=Ground, Pin2=Hot
(+), Pin3=Cold(-). Do not use high impedance or unbalanced microphones, or condenser mics
requiring phantom power.
10
LINE Inputs, CH A
Balanced (TRS) 1/4” Jack. Connect auxiliary or balanced LINE level music sources to the CH A
LINE input. Connect mono sources to the L/M socket.
11
BOOTH Outputs
Balanced (TRS) 1/4” Jack. LINE level stereo output feed to DJ’s local monitor.
7
X:Link
Cat-5 Ethernet (RJ-45). Connect Xone:K Series Controllers to the Xone:PX5 mixer to expand
software application MIDI control and to save using USB ports on your computer.
6
MASTER INSERT
Unbalanced (TRS) 1/4” Jack. Provides INSERT points for LR MIX output to connect hardware
dynamics processors such as a limiter, compressor, or graphic equaliser.
Or connect external hardware in-line with LR MIX outputs for external MASTER INSERT FX.
Use Insert patch cable (Y lead), wired; Tip=Send, Ring=Return, Sleeve=Ground.
8
MASTER Outputs
Master1. Balanced (XLR). The main stereo LR MIX outputs that feeds the club PA system, or
balanced active speakers. Wired; Pin1=Ground, Pin2=Hot(+), Pin3=Cold(-).
Master2. Unbalanced (RCA). Alternative stereo LR MIX output to feed unbalanced active
speakers, or consumer type amplifiers.
9
6 8 7
10
9
11
