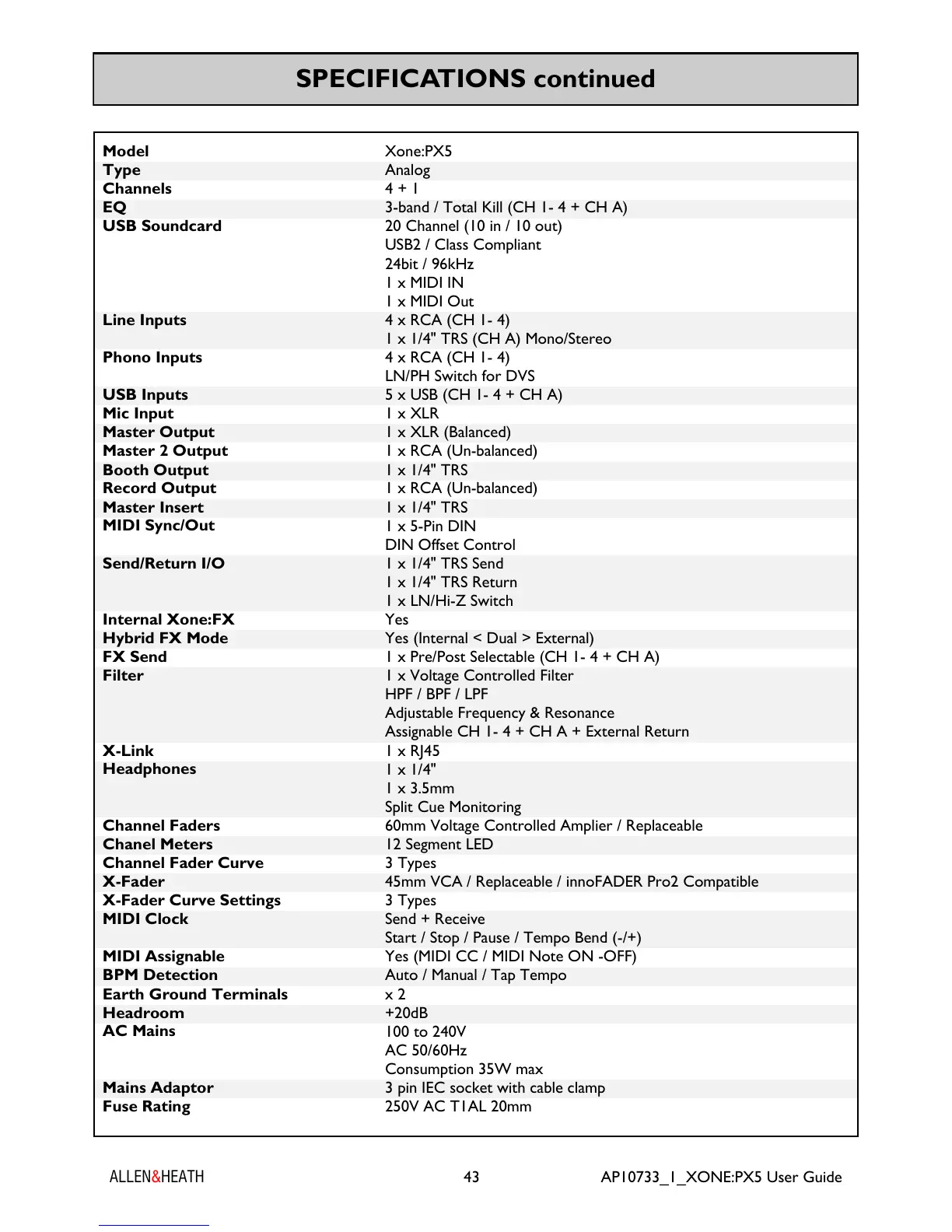

SPECIFICATIONS continued
Model Xone:PX5
Type Analog
Channels 4 + 1
EQ 3-band / Total Kill (CH 1- 4 + CH A)
USB Soundcard
20 Channel (10 in / 10 out)
USB2 / Class Compliant
24bit / 96kHz
1 x MIDI IN
1 x MIDI Out
Line Inputs
4 x RCA (CH 1- 4)
1 x 1/4" TRS (CH A) Mono/Stereo
Phono Inputs
4 x RCA (CH 1- 4)
LN/PH Switch for DVS
USB Inputs 5 x USB (CH 1- 4 + CH A)
Mic Input 1 x XLR
Master Output 1 x XLR (Balanced)
Master 2 Output 1 x RCA (Un-balanced)
Booth Output 1 x 1/4" TRS
Record Output 1 x RCA (Un-balanced)
Master Insert 1 x 1/4" TRS
MIDI Sync/Out
1 x 5-Pin DIN
DIN Offset Control
Send/Return I/O
1 x 1/4" TRS Send
1 x 1/4" TRS Return
1 x LN/Hi-Z Switch
Internal Xone:FX Yes
Hybrid FX Mode Yes (Internal < Dual > External)
FX Send 1 x Pre/Post Selectable (CH 1- 4 + CH A)
Filter
1 x Voltage Controlled Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1- 4 + CH A + External Return
X-Link 1 x RJ45
Headphones
1 x 1/4"
1 x 3.5mm
Split Cue Monitoring
Channel Faders 60mm Voltage Controlled Amplier / Replaceable
Chanel Meters 12 Segment LED
Channel Fader Curve 3 Types
X-Fader 45mm VCA / Replaceable / innoFADER Pro2 Compatible
X-Fader Curve Settings 3 Types
MIDI Clock
Send + Receive
Start / Stop / Pause / Tempo Bend (-/+)
MIDI Assignable
Yes (MIDI CC / MIDI Note ON -OFF)
BPM Detection Auto / Manual / Tap Tempo
Earth Ground Terminals x 2
Headroom +20dB
AC Mains
100 to 240V
AC 50/60Hz
Consumption 35W max
Mains Adaptor 3 pin IEC socket with cable clamp
Fuse Rating 250V AC T1AL 20mm
