Allen-Bradley 1420-V2-ENT User Manual

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 17
Chapter 2
Installation and Wiring
Installation

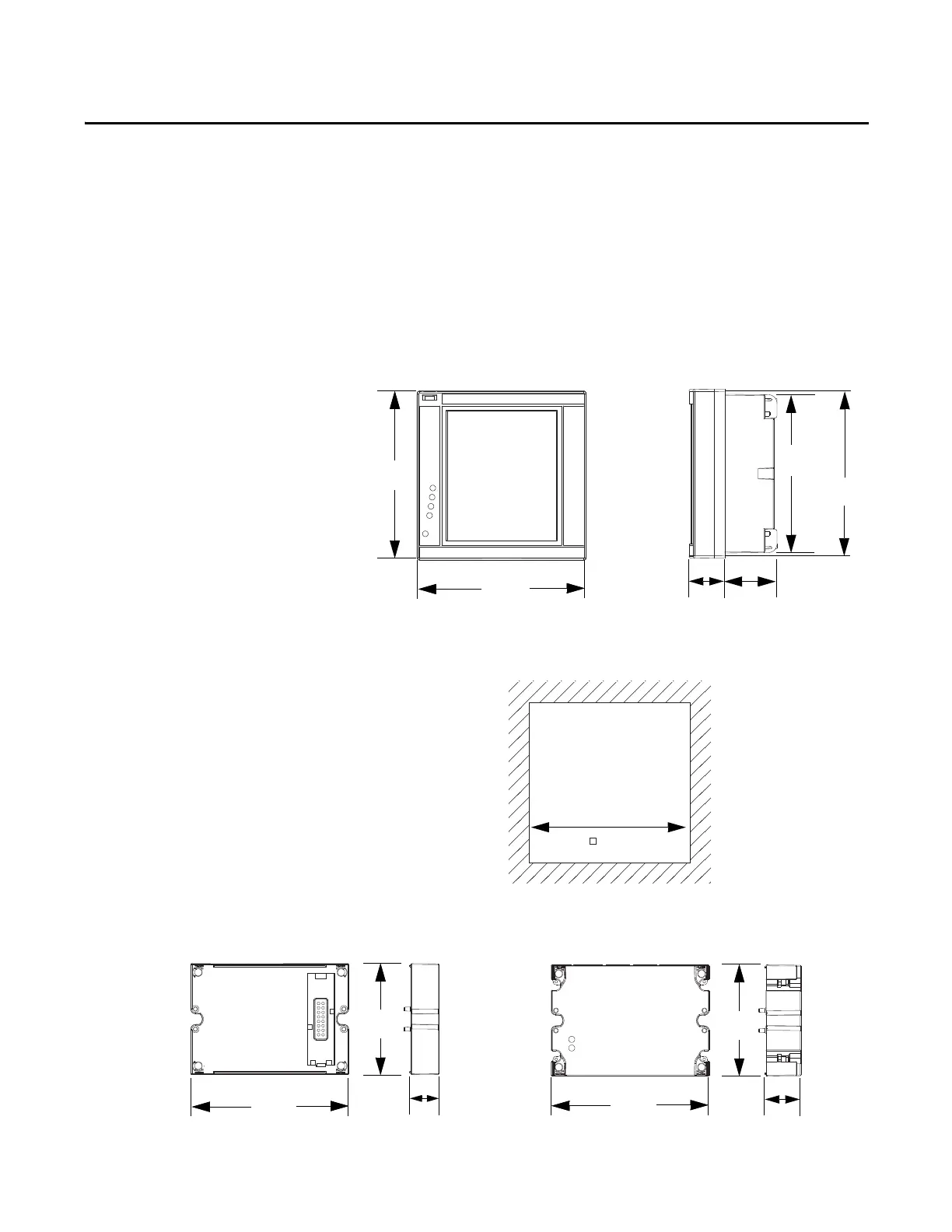

This section shows the dimensions of the unit for installation in a panel.
Figure 5 - Base Unit Dimensions
Figure 6 - Panel Cut-out
Figure 7 - Factory-installed Optional Modules
96.00 mm
(3.78 in.)
96.00 mm
(3.78 in.)
93.00 mm
(3.66 in.)
20.20 mm
(0.80 in.)
29.70 mm
(1.17 in.)
89.97 mm
(3.54 in.)
91.00 mm
(3.58 in.)
62.99 mm
(2.48 in.)
89.49 mm
(3.52 in.)
62.99 mm
(2.48 in.)
89.49 mm
(3.52 in.)
16.00 mm
(0.63 in.)
20.00 mm
(0.79 in.)
Digital and Analog Output Modules
Serial and Ethernet Communication Modules
