Chapter 3 Unit Configuration

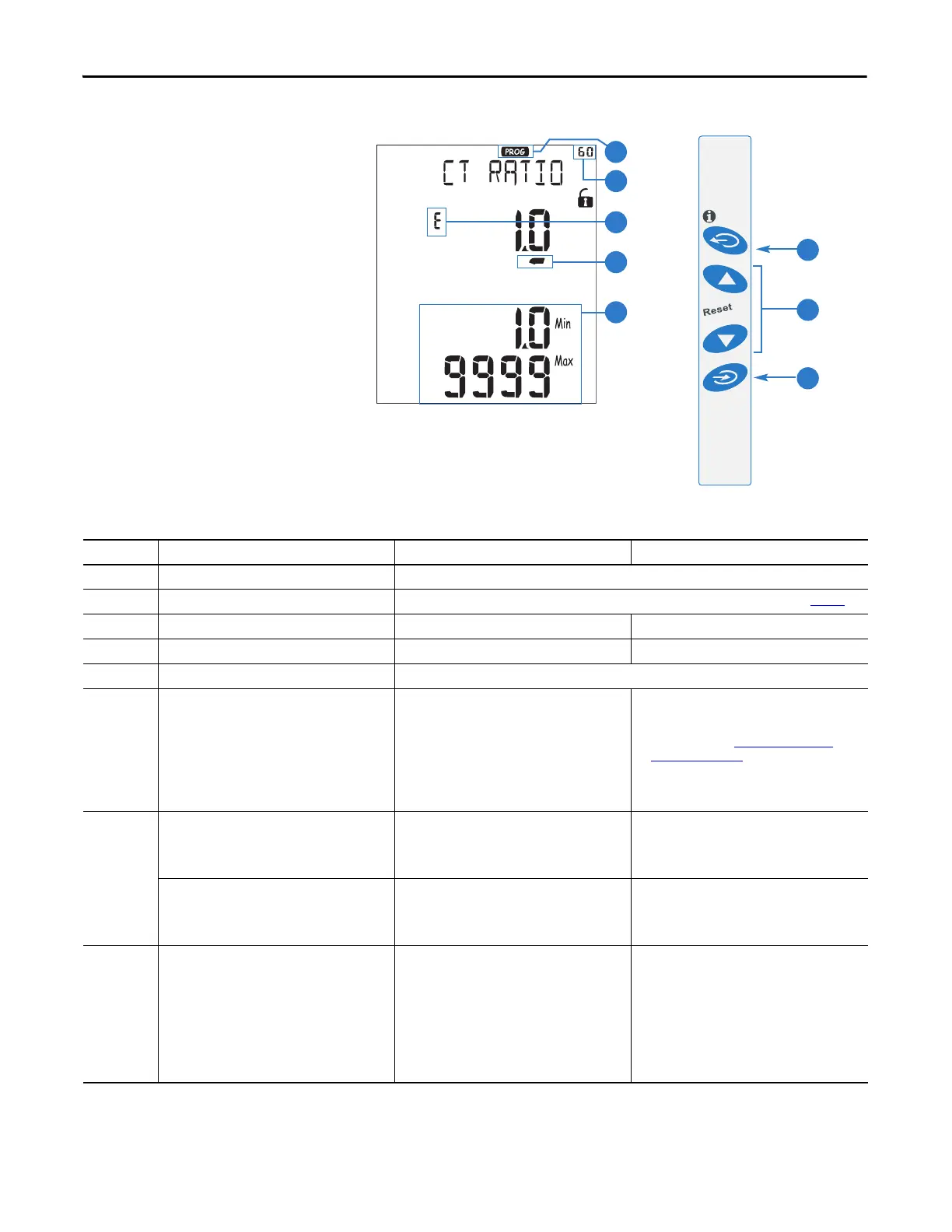

Figure 22 - Front Panel Display
6
7
8
3
4
5
2
1
Table 6 - Front Panel Display Descriptions
Display Item Description Navigating Menus Editing a Menu
1 Programming mode indicator Indicates programming mode.
2 Programming menu page Identifies the current programming menu page. See the programming flowchart that begins on page 28
.
3 Editing mode indicator Does not appear. Indicates the parameter being edited.
4 Cursor Does not appear. Appears beneath the digit currently being edited.
5 Permitted range Displays the permitted range of values for the selected parameter.
6 Exit button • When in a menu page, exits Programming mode
without saving changes. Program/select button
confirms exit.
• When in a submenu page, exits to menu page.
• Moves the cursor one digit to the left.
• When the leftmost digit is selected, dP is
indicated and you can change the decimal point
and multiplier (see Edit Decimal Point and
Multiplier on page 27).
• When held for at least 2 seconds, cancels the edit
and restores the previous value of the selected
parameter.
7 Up button Selects the next higher-numbered menu or
submenu page.
• Increments the value of the digit indicated by the
cursor.
• When dP is indicated, increments the decimal
point and multiplier.
Down button Selects the next lower-numbered menu of submenu
page.
• Decrements the value of the digit indicated by
the cursor.
• When dP is indicated, decrements the decimal
point and multiplier.
8 Program/select button • Press and hold for 2 seconds to enter the Program
mode.
• Selects a menu page for editing.
• When in a menu page with submenus, displays
the first submenu page.
• After pressing the Exit button, confirms exit from
Programming mode without saving changes.
• From End menu page 260, saves new
configuration and exits Programming mode.
Stores the new value of the selected parameter, but
does not save the new configuration to the power
monitor.
