38 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016
Chapter 4 Communication
Electronic Data Sheet (EDS)
The EDS file is used to convey device configuration data that is provided by the

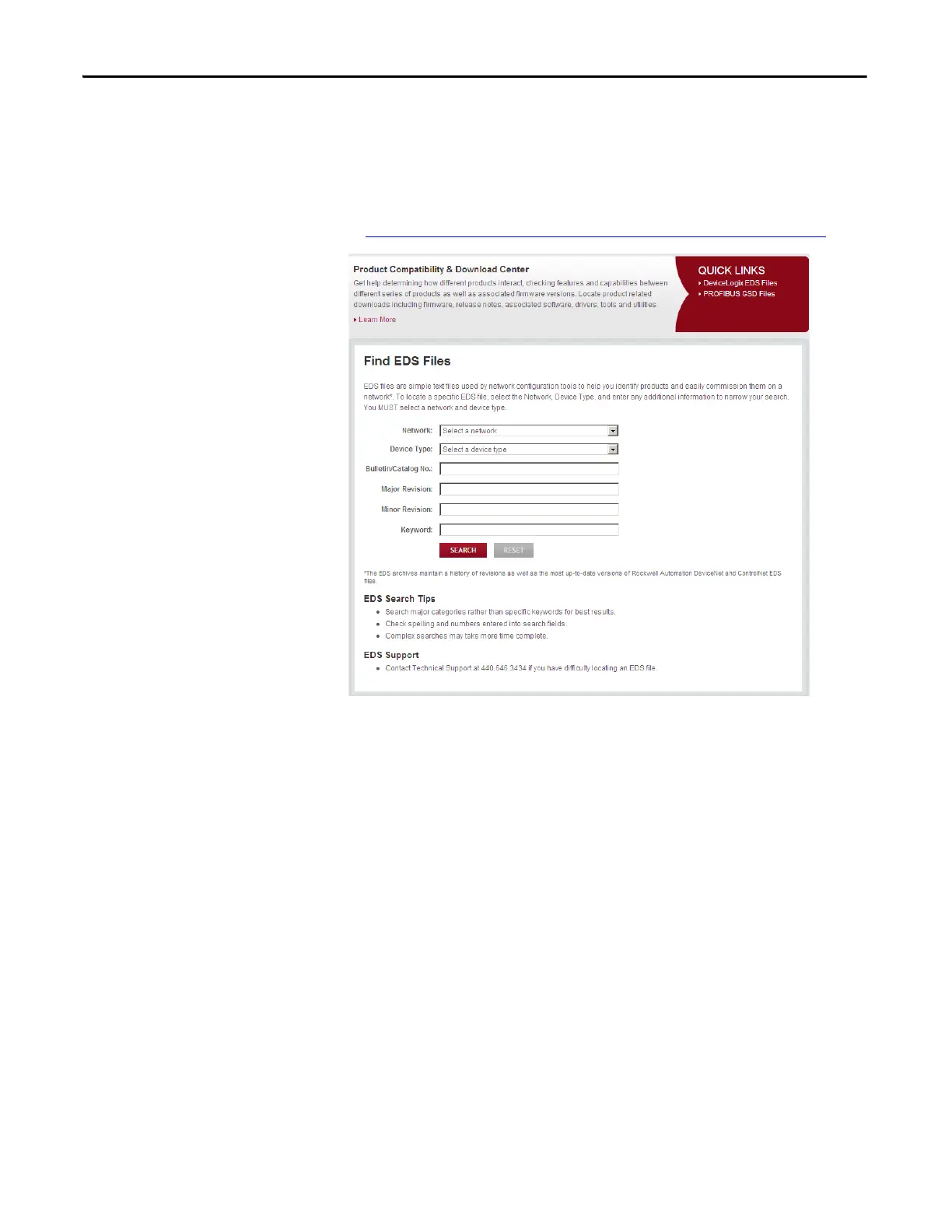

manufacturer. You can obtain EDS files for the PowerMonitor 500 unit by
downloading the file from the following website:
http://www.rockwellautomation.com/rockwellautomation/support/networks/eds.page
You can install EDS files on your computer by using the EDS Hardware
Installation Tool that comes with RSLinx® Classic software,
RSNetWorx™ for EtherNet/IP software, or other tools.
Explicit Messaging - Message Setup with CIP Generic
The following example shows how to configure your message instruction to read
from a data table in the power monitor by using a CIP Generic message type for
the Studio 5000 Logix Designer® application. This setup applies to
ControlLogix® and CompactLogix™ programmable logic controllers. The CIP
Generic message type does not support single element reads or writes. In this
example, we read the Real-time Metering Values (Voltage and Current) data table
from the power monitor.
