Rockwell Automation Publication 1734-UM013N-EN-P - September 2017 207

Safety Data Appendix D

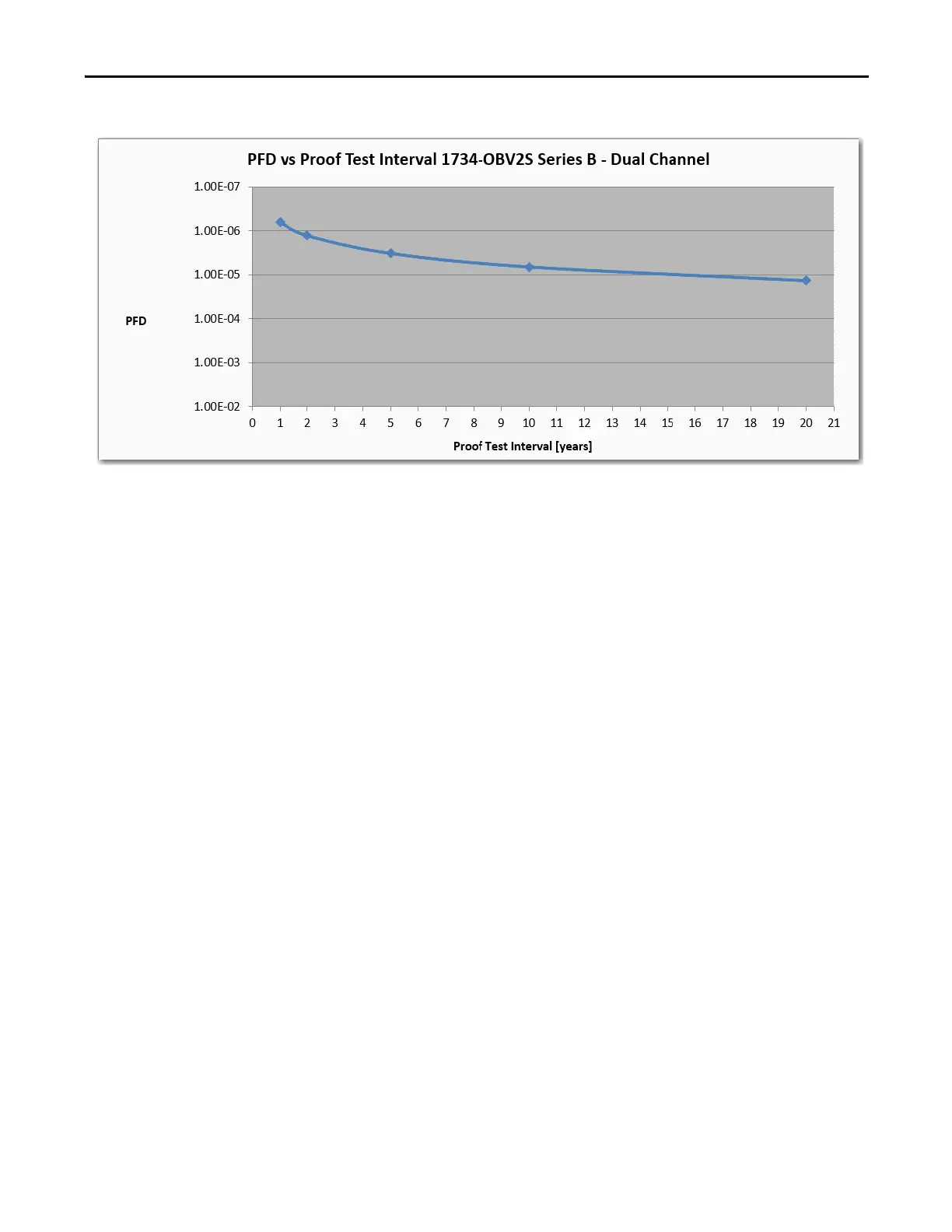

Figure 72 - PFD vs. Proof Test Interval 1734-OBV2S Series B Dual Channel
