Chapter 5 Configure the Module in a GuardLogix Controller System

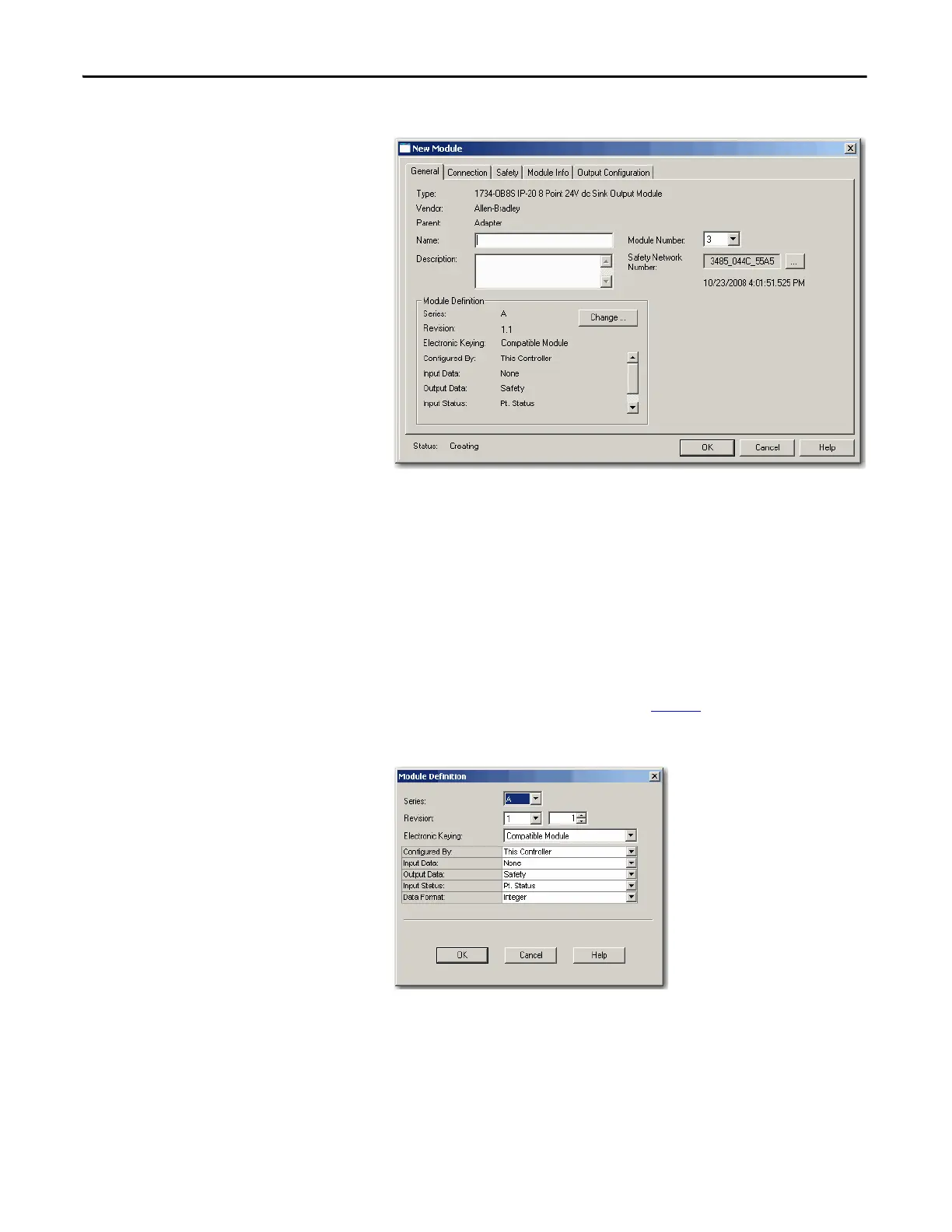

3. Specify the general properties of the module.
a. In the Name field of the New Module dialog box, type a unique name
for the output module.
b. From the Module Node pull-down menu, choose a unique module
node number that corresponds to the position of the module in the
chassis.
c. In the Description field, type a description, if desired.
d. In the Safety Network Number field, use the default setting.
For a detailed explanation of the safety network number (SNN), see the
GuardLogix Controller Systems Safety Reference Manuals that are
listed in the Additional Resources on page 14
. In most cases, you use
the default that is provided by the Logix Designer application.
4. Under Module Definition, click Change to edit the settings of the module.
a. In the Series field, choose the series letter of the output module.
b. In the Revision fields, choose the revisions numbers of the output
module.
